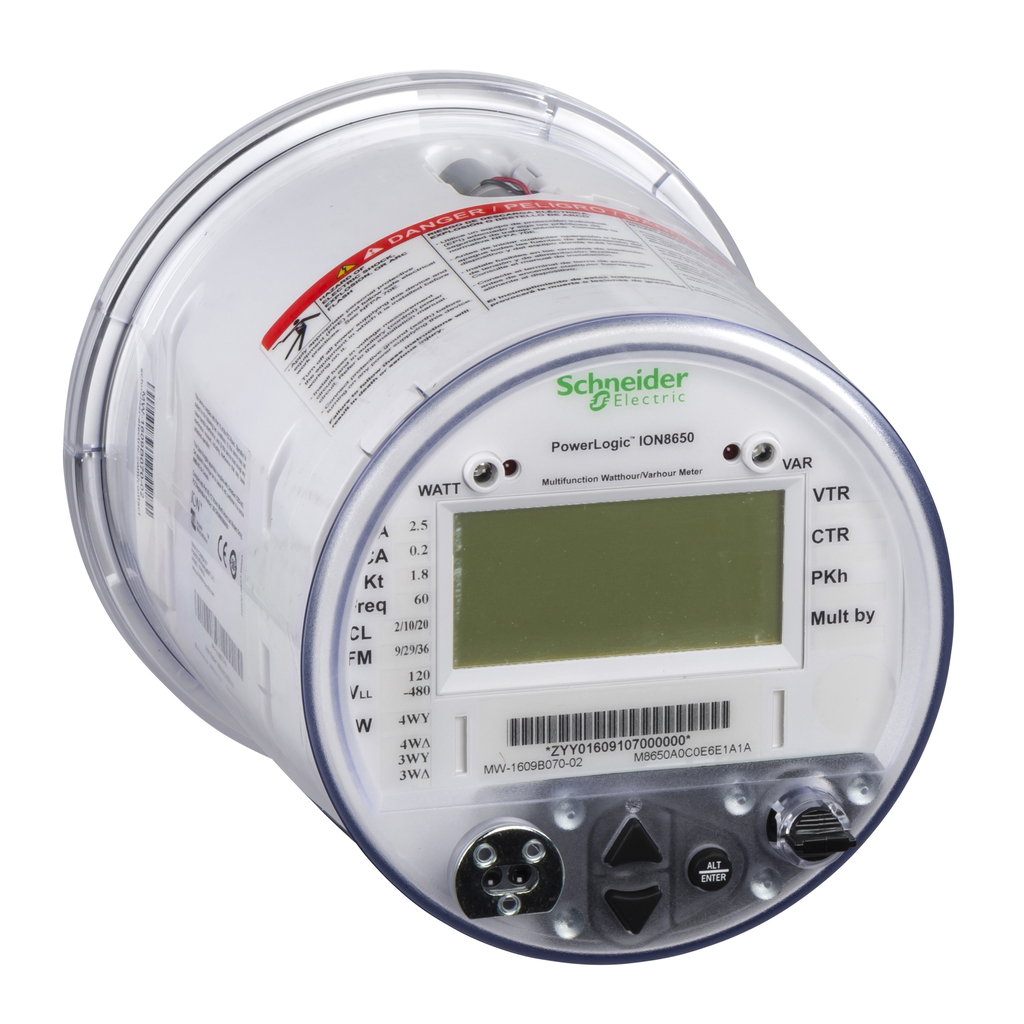

Product image for SQD S8650C0C0E6E1A0A ION8650 meter
Image thumbnail 0
Image thumbnail 1
Email

SQD S8650C0C0E6E1A0A ION8650 meter

Manufacturer: Square-D / Schneider | Catalog # S8650C0C0E6E1A0A | Cooper Electric Part # 1182161
$7,921.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
ION8650 meter 32MB, 9S/29S/36S, 277VAC 60Hz, Ethernet No I/O

Technical Information

Accuracy
CLASS 0.2S ENERGY IEC 62053-22-CLASS 0.2S ENERGY IEC 62053-23-CLASS 0.2 ENERGY ANSI C12.20,CURRENT 0.1 -VOLTAGE 0.1 -POWER 0.1 -POWER FACTOR 0.1 -FREQUENCY 0.001 HZ-ENERGY 0.1
Amperage
5 Amp
Applications
Load curtailment;Demand and power factor control;Equipment monitoring and control;Instrument transformer correction;Co-generation and IPP monitoring;Tariff metering;Energy pulsing and totalisation
Indicator
FSTN transflective LCD
Line Rated Current
1 A
Mounting Type
Socket-mounted
Net Weight
7 kg
Number of Outputs
2
Output
2 PULSE
Size
178 MM,178 MM,237 MM
Standard
ANSI C12.1,IEC 62052-11
Storage Temperature
-40-85 degrees C
Type
Energy and power quality meter
Voltage
120...277 Volt AC 47...63 HZ

Manufacturer Information

Brand
Square D
Sub Brand
ION8650C;PowerLogic ION8650

General Product Info

12-Digit UPC
785901968665
GTiN
00785901968665
Product UPC
78590196866
Weight
15.43 lb

Dimensions

Depth
237 mm
Height
178 mm
Width
178 mm
