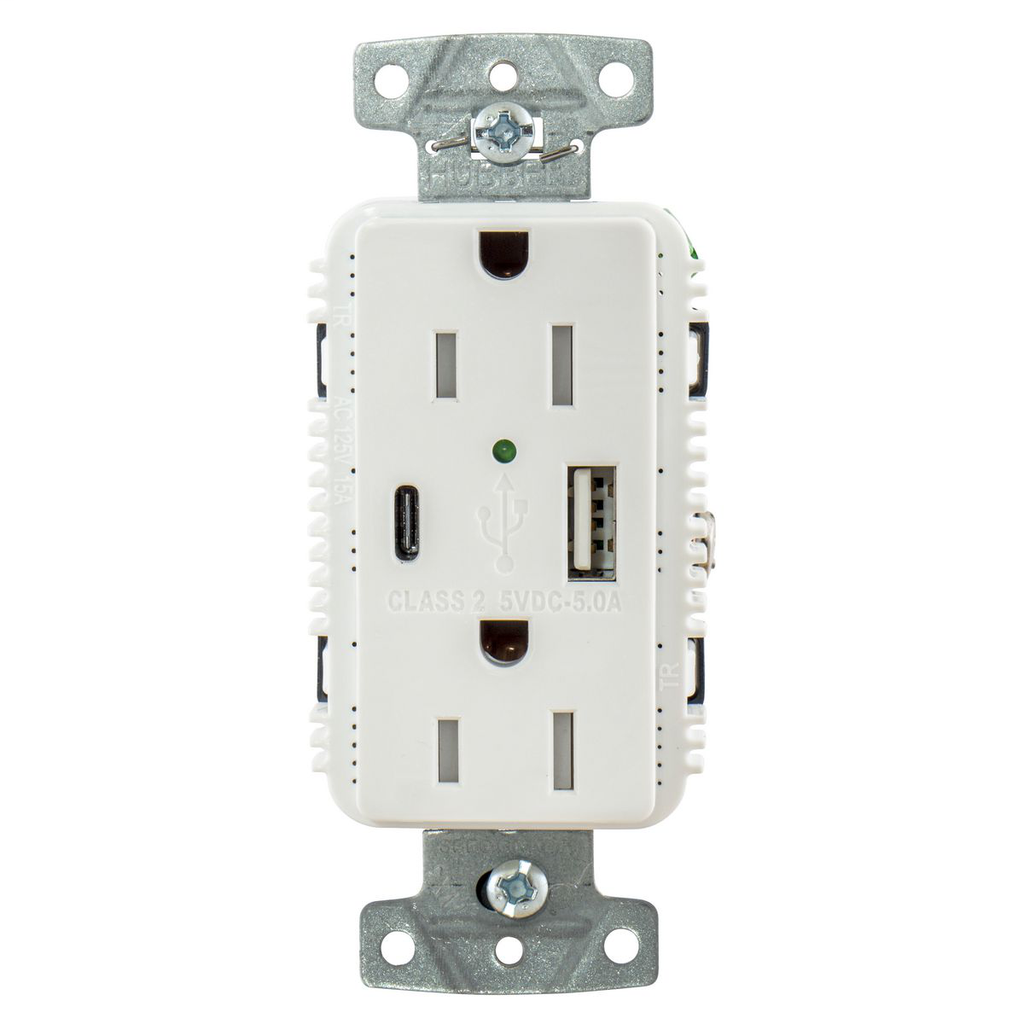

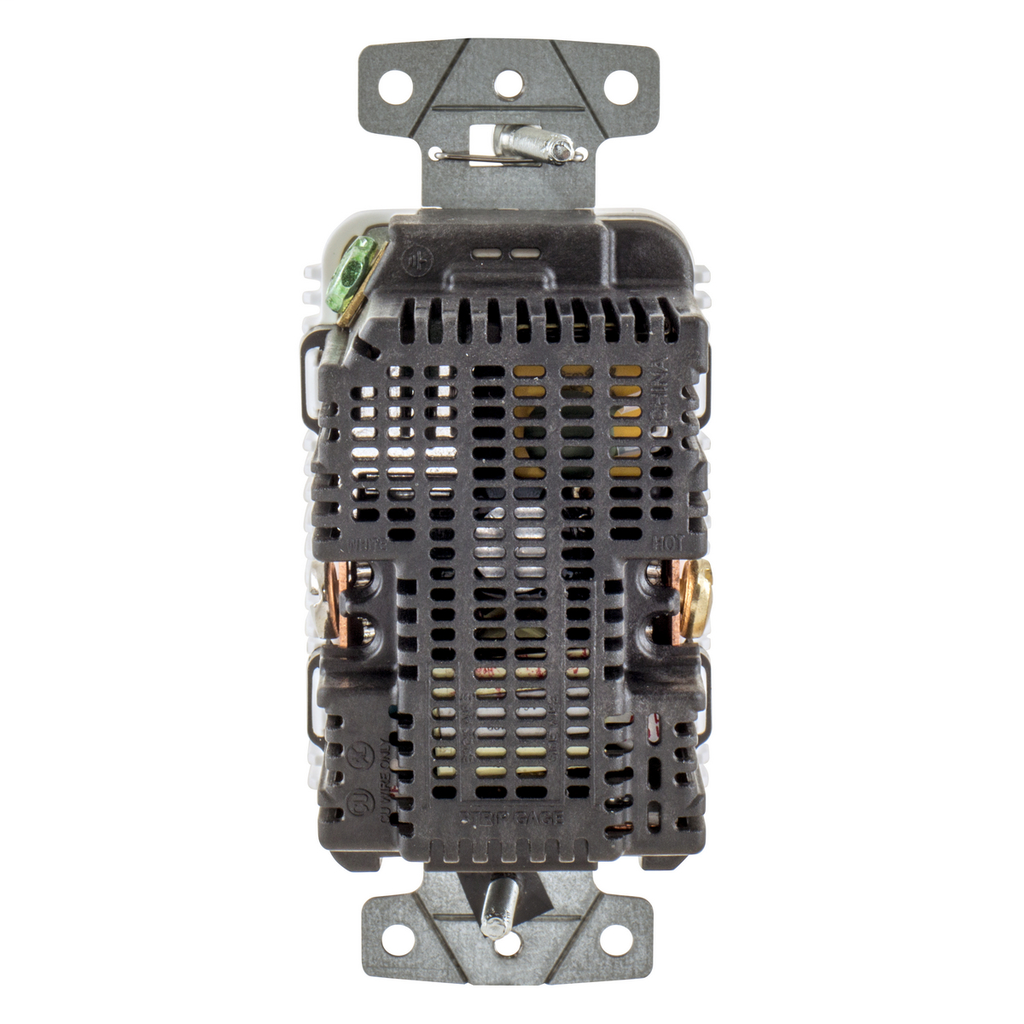

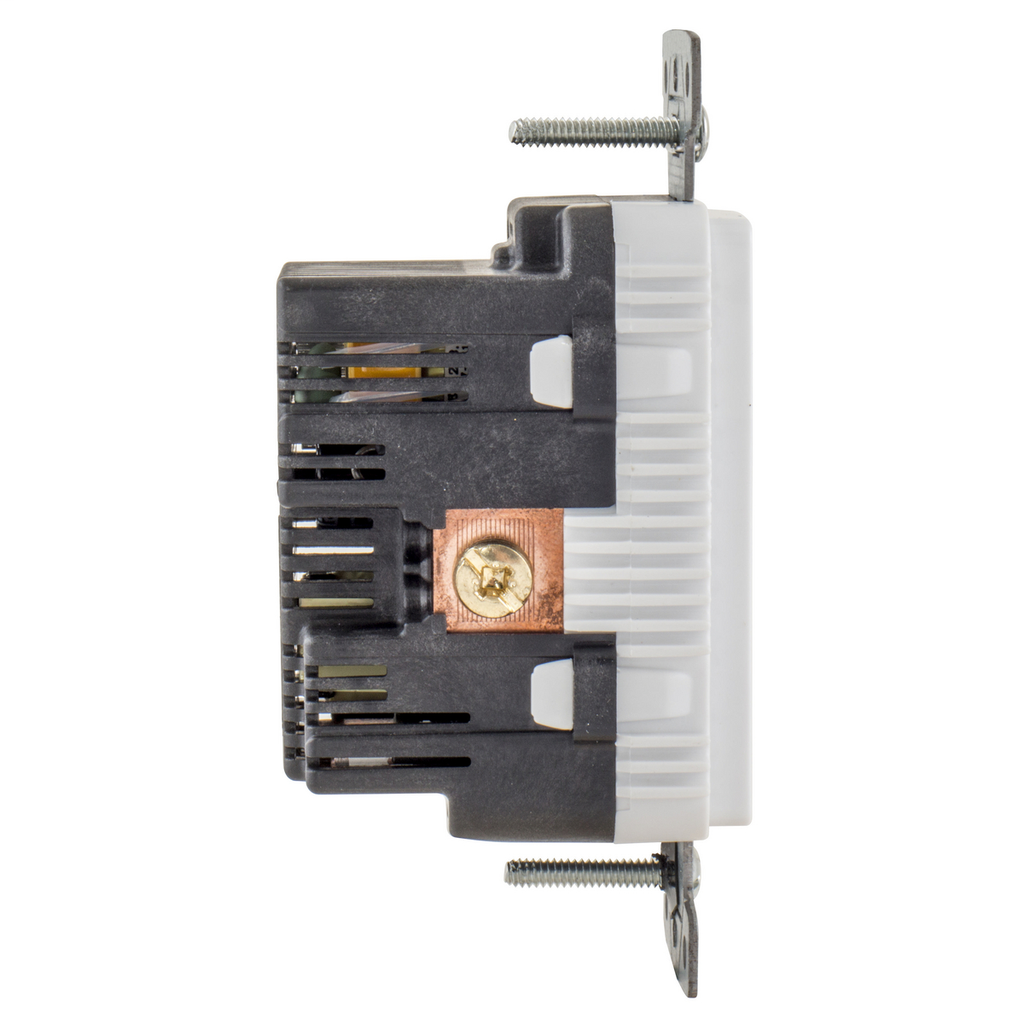

Hubbell USB15AC5W Receptacle DUP 15A 125V 5A 5V USB PORT AC WH

Manufacturer: Hubbell Wiring Device | Catalog # USB15AC5W | Cooper Electric Part # 1181671
$58.70/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding, 5-15R, 1) 5A "C" USB and "A" Ports, White

Technical Information

Amperage
15 Amp
Applications
For USB Charging/Power
Conductor Size
14-12 AWG
Connection Type
Back and Side
Contact Material
Brass
Grade
Commercial
Grounding
Grounding
Material
Nylon
Mounting Type
Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Product
Style
Style Line Decorator
TC Connection
Terminal Screws
Temperature Rating
75degrees C Maximum Continuous, -40 degrees C Minimum Continuous without Impact
Type
USB Charger, Duplex
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
USB Chargers

General Product Info

12-Digit UPC
883778307171
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00883778307171
Product UPC
88377830717
Features
  • High Power 5 Amp, 5 Volt USB Output
  • Combination Ports, One Type A, One Type C
  • Tamper Resistant Commercial Grade Duplex Compatible
  • USB Ports Rated 10,000 Cycles
