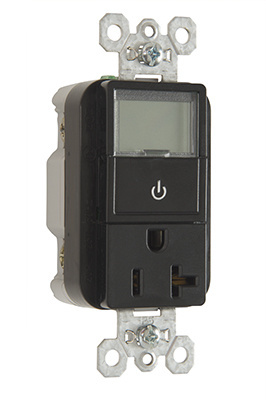

Product image for P&S PLT26351BK PLUGLOAD TIMER 20A 1
Image thumbnail 0
Image thumbnail 1
Email

P&S PLT26351BK PLUGLOAD TIMER 20A 1

Manufacturer: Pass & Seymour / Legrand | Catalog # PLT26351BK | Cooper Electric Part # 1180362
$101.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass and Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers electric bills.

Technical Information

Amperage
20 Amp
Applications
Commercial
Conductor Size
14-10 AWG
Connection Type
Screw-Type Terminals
Dielectric Strength
2000 V
Material
Polycarbonate
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
.78" (D) x 1.322" (W) x 3.281" (H)
TC Connection
Screw terminals
Temperature Rating
60 degrees C
Type
Receptacle/Timer
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007040166
Color
Black
Environmental Conditions
UL94 V2
GTiN
00785007040166
Product UPC
78500704016

Dimensions

Depth
1-1/4 Inch
Height
2.68 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
China
Features
  • Receptacle compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1.
  • Products meets requirements of UL498B: Receptacles with integral switching means.
  • Power button on face serves as a manual override to scheduled programs.
  • Two individual programs can be set to automatically control plug loads.
  • Corrosion-resistant, plated steel strap locked into face and back body to resist pulling away from face/body assembly.
  • Bottom half of device features a single receptacle that is automatically controlled by the time clock.
  • Clear LCD display shows program status, ON/OFF status, current time, and day of the week.
  • Feed-thru capability allows for downstream control of multiple receptacles.
  • Center panel flips open for easy, three button programming.
  • Permanently molded power symbol on face identitfies controlled receptacle in accordance with ASHRAE 90.1, NEC, and Title 24.
  • .032 inch think, brass triple-wipe power contracts for lasting retention.
  • Auto-ground eliminates the necessity to terminate grounding conductor in device.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Wire Size: #14 - #10 AWG Copper Conductor Only
Certifications
  • Federal Spec Listed
  • UL Listed
  • cULus Listed
