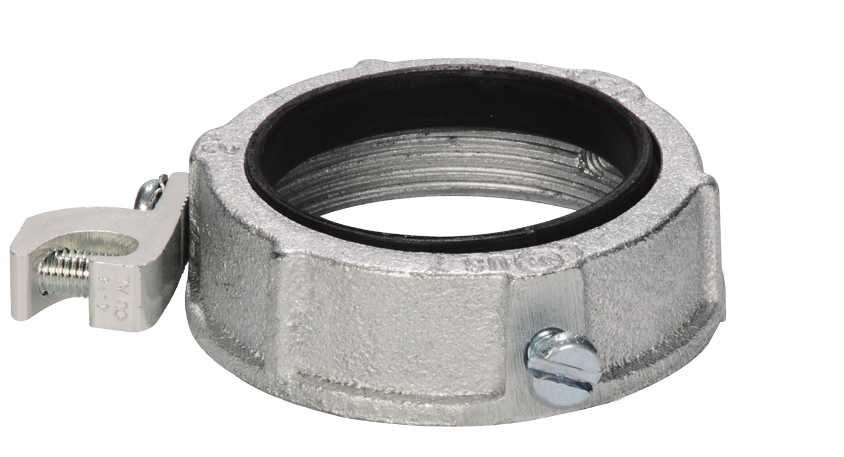

Product image for SEPCO 22BI4LG 1IN AL GRDBSH
Image thumbnail 0
Image thumbnail 1
Email

SEPCO 22BI4LG 1IN AL GRDBSH

Manufacturer: Steel Electric Products | Catalog # 22BI4LG | Cooper Electric Part # 1179495
$3,850.85/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
SEPCO 22BI4LG 1IN AL GRDBSH

Technical Information

Trade Size
1 Inch

Manufacturer Information

Brand
Steel Electric Products

General Product Info

12-Digit UPC
785994100232
Product UPC
78599410023
Features
  • The plastic liner wont chip, crack, swell or shrink. It resists corrosion, chemicals, and temperature extremes.
  • Set-screw provided with each fitting locks bushing in any desired position.
  • UL Listed for use with Copper o Aluminum Grounding Conductors.
Application
  • Used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.
Standard Materials
  • Malleable Iron/Open side tin plated aluminum lug.
Standard Finish
  • Hot Dipped Galvanized/Zinc Plated
UL Listed
  • E93683
Optional Finish
  • For Malleable Iron / Zinc Plated, please remove suffix G from Hot Dipped Galvanized Catalog Number and see page 57.
