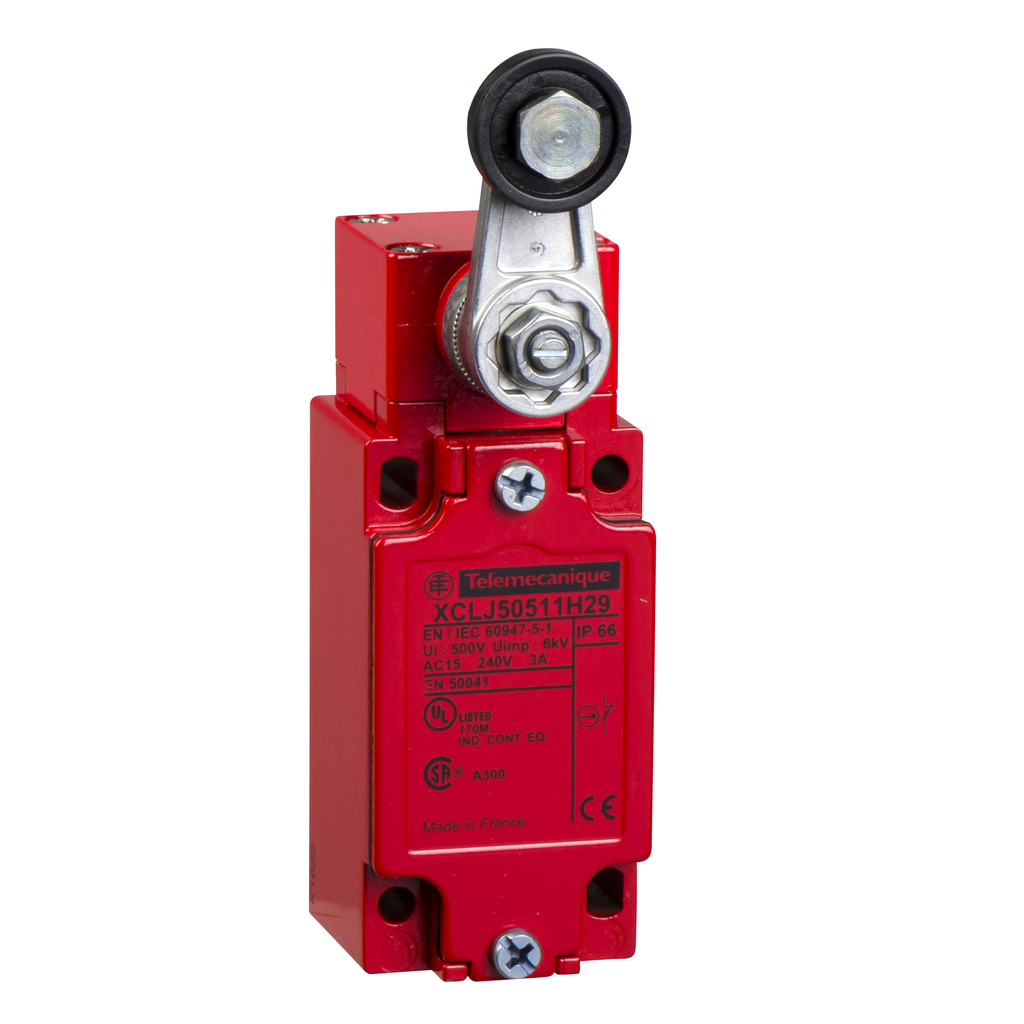

TES XCLJ50511H29 Limit switch, Limit switches XC Standard, XCLJ, red body steel, plastic roller lever, NC / NC slow contacts

Manufacturer: TES Electric | Catalog # XCLJ50511H29 | Cooper Electric Part # 1178795
$218.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Limit switch, Limit switches XC Standard, XCLJ, red body steel, plastic roller lever, NC / NC slow contacts

Technical Information

Action
Slow-break, break before make;By 30? cam
Actuator
SPRING RETURN ROLLER LEVER METAL
Amperage
10 Amp
Applications
XCKJ,XCLJ,ROTARY HEAD,STANDARD FORMAT
Body Material
Zamak
Body Type
Fixed
Cable Entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 713 mm
Contact Configuration
1 NC + 1 NO
Head Type
Rotary head
Material
Metal
Net Weight
0.49 kg
Number of Poles
2 Pole
Number of Steps
1
Operating Cycles
5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.73 in
Standard
CENELEC EN 50041,EN 60204-1,EN/IEC 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.5...2 X 2.5 MMA
Type
Limit switch
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCLJ

General Product Info

12-Digit UPC
785901449195
GTiN
03389110904628
Product UPC
78590144919
Weight
1.08 lb

Dimensions

Depth
44 mm
Height
77-77 mm
Warranty Length
18 mth
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
