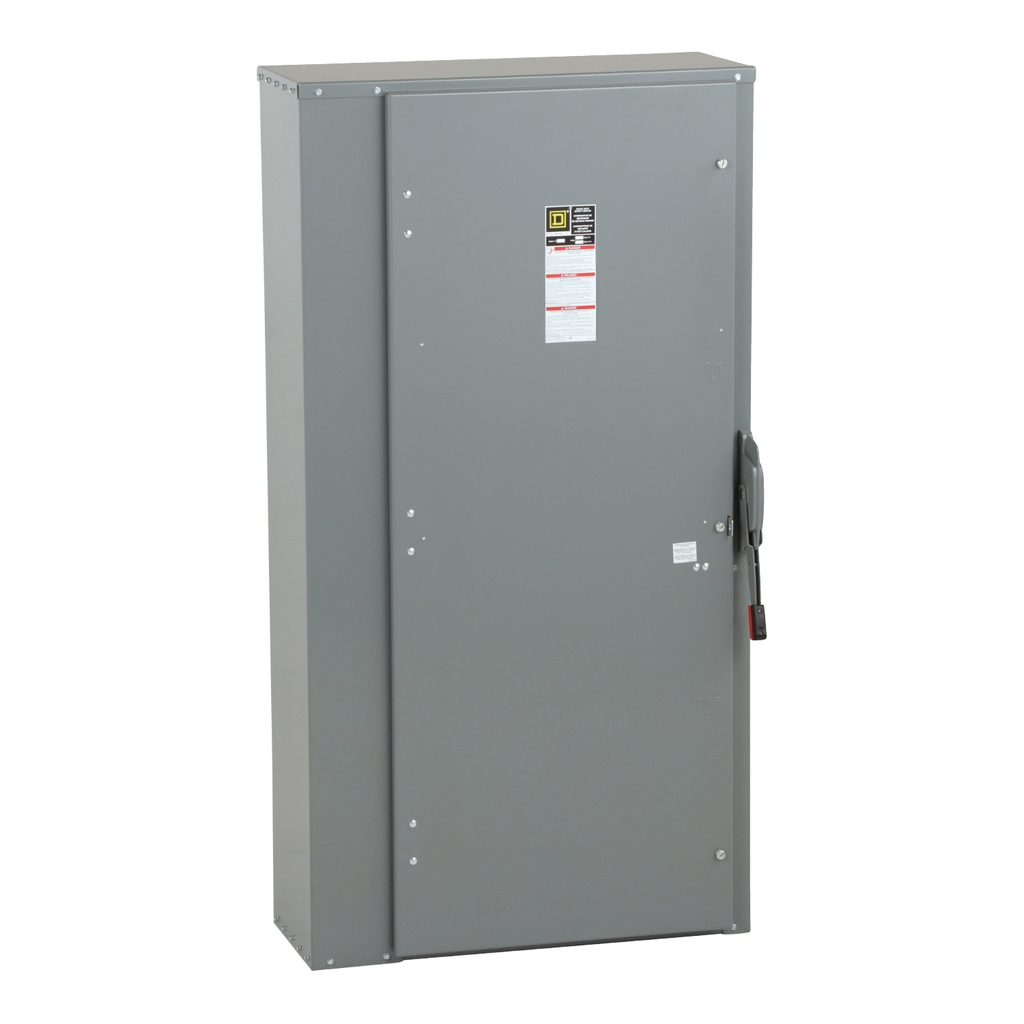

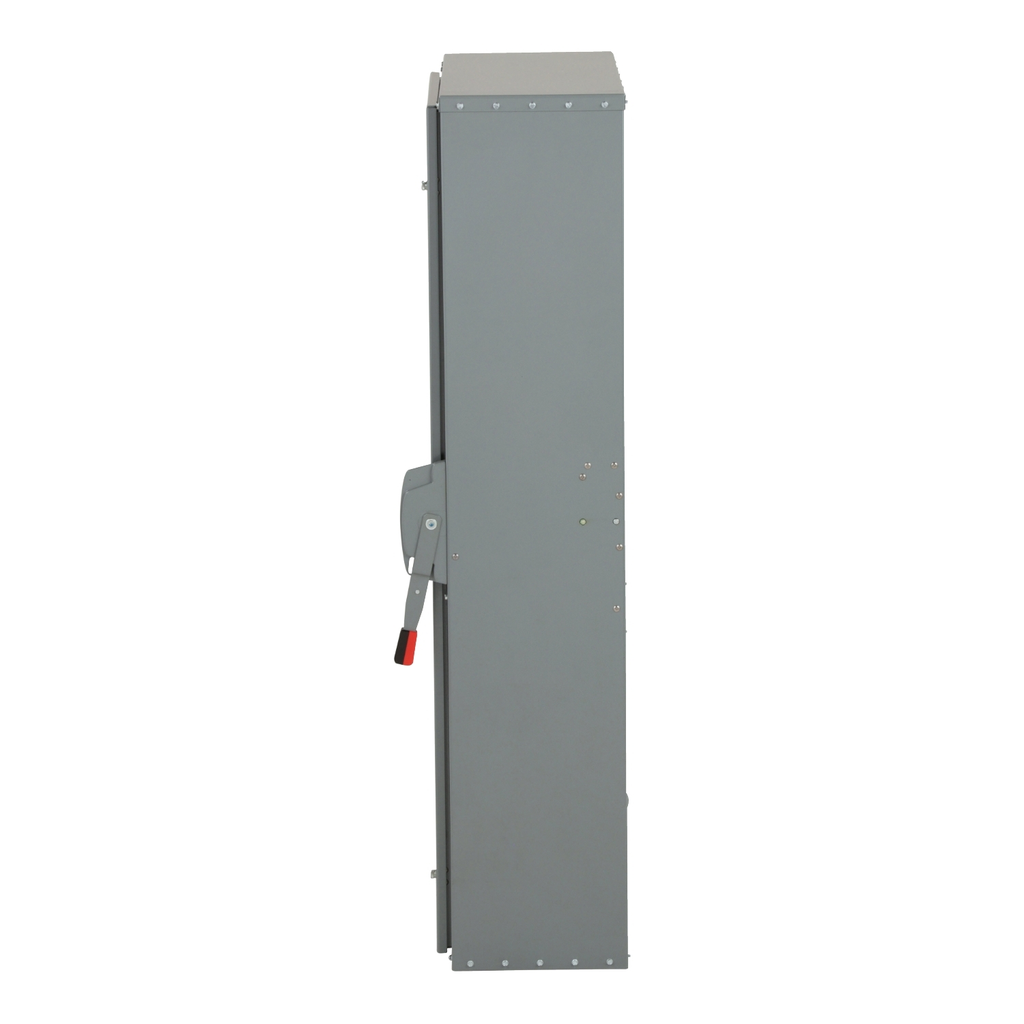

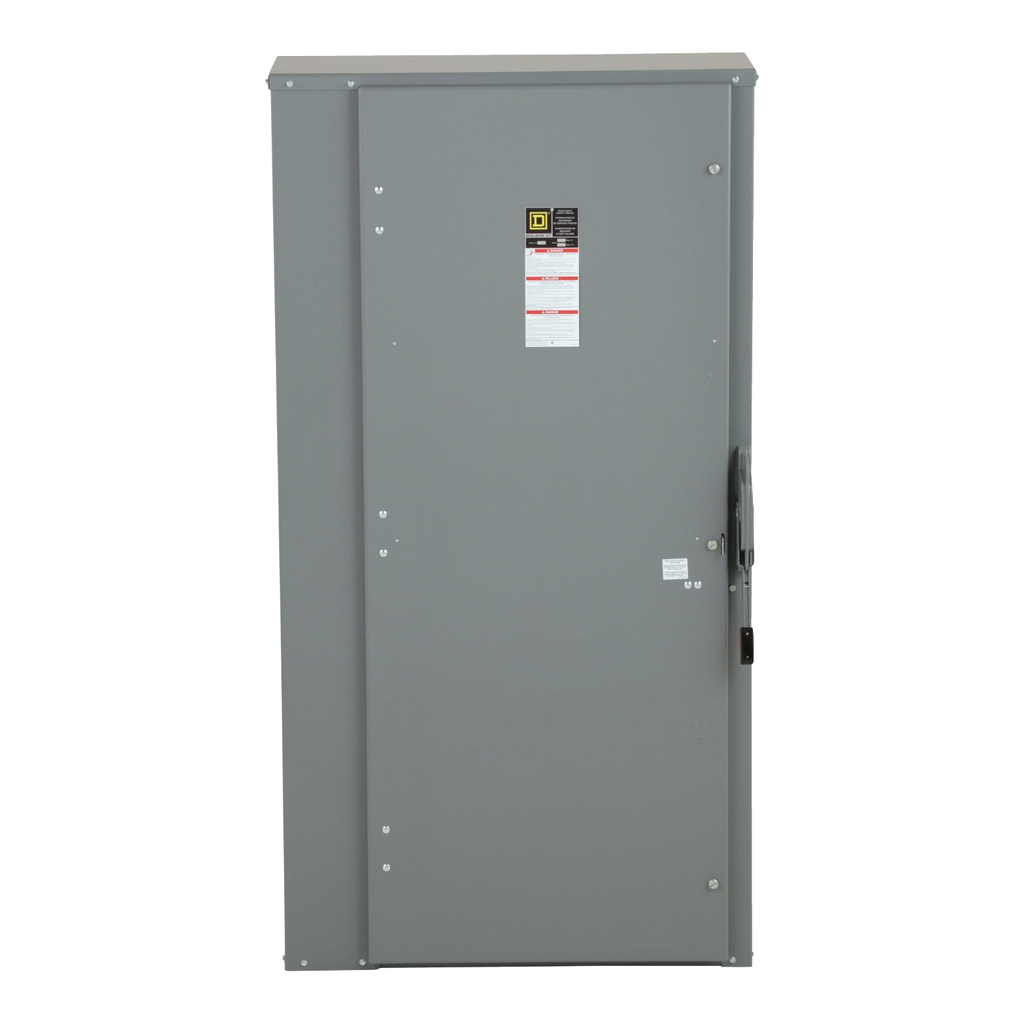

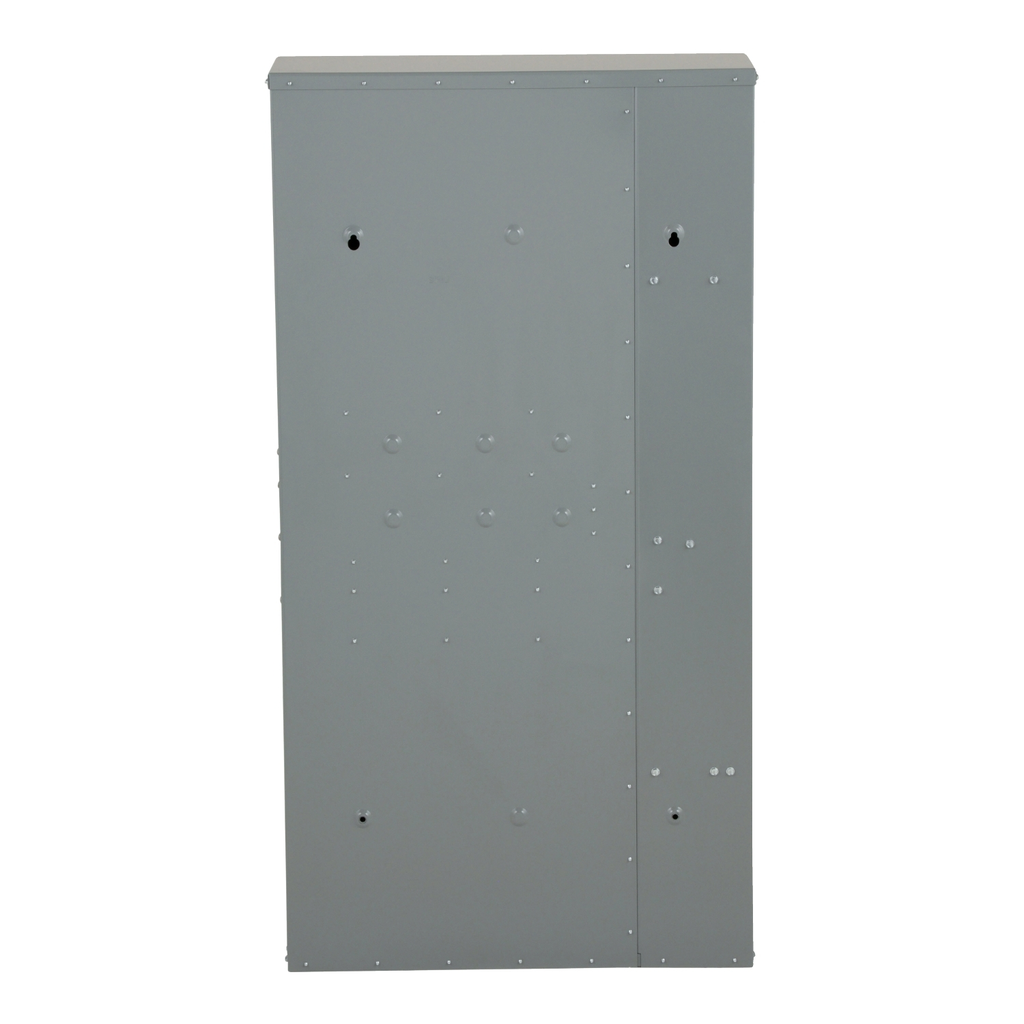

Square D H368N 600 VAC 1200 Amp 3-Pole Class L Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H368N | Cooper Electric Part # 117809
$18,114.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 Product Brochure
Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1

Technical Information

Amperage
1,200 Amp
Applications
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Conductor Size
3/0 AWG-750 kcmil
Contact Configuration
3
Contact Rating
Y
Current
1200 Amp
Disconnect Type
Fusible disconnect
Duty Rating
Heavy duty
Enclosure
1
Enclosure Material
Stainless Steel
Enclosure Rating
1
Fuse Type
L
Line Rated Current
1200 A
Mounting Type
Surface
NEMA Size
1
Net Weight
168.7 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
200 kA
Short Circuit Current Ratng
200 kA
Size
17.75 IN,36.62 IN,69.13 IN
TC Connection
AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type
SAFETY SWITCH
Voltage
600 Volt
Wattage
1 Watt
Wire Size
AWG 3/0...750 kcmil copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901442462
Environmental Conditions
GENERAL PURPOSE (INDOOR)
GTiN
00785901442462
Product UPC
78590144246
Weight
168.7 kg

Dimensions

Depth
17-3/4 Inch
Height
69.13 Inch
Warranty Length
18 mth
Width
36.62 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
Mexico
