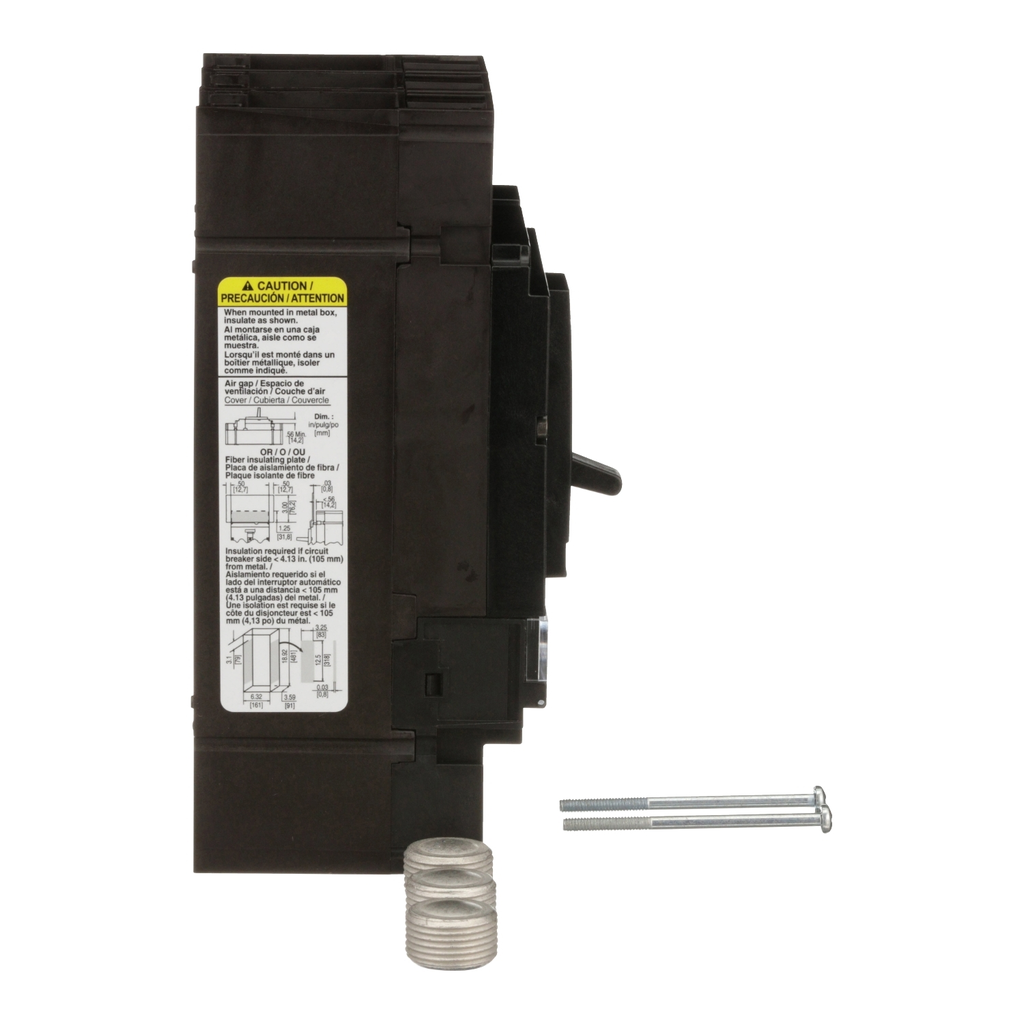

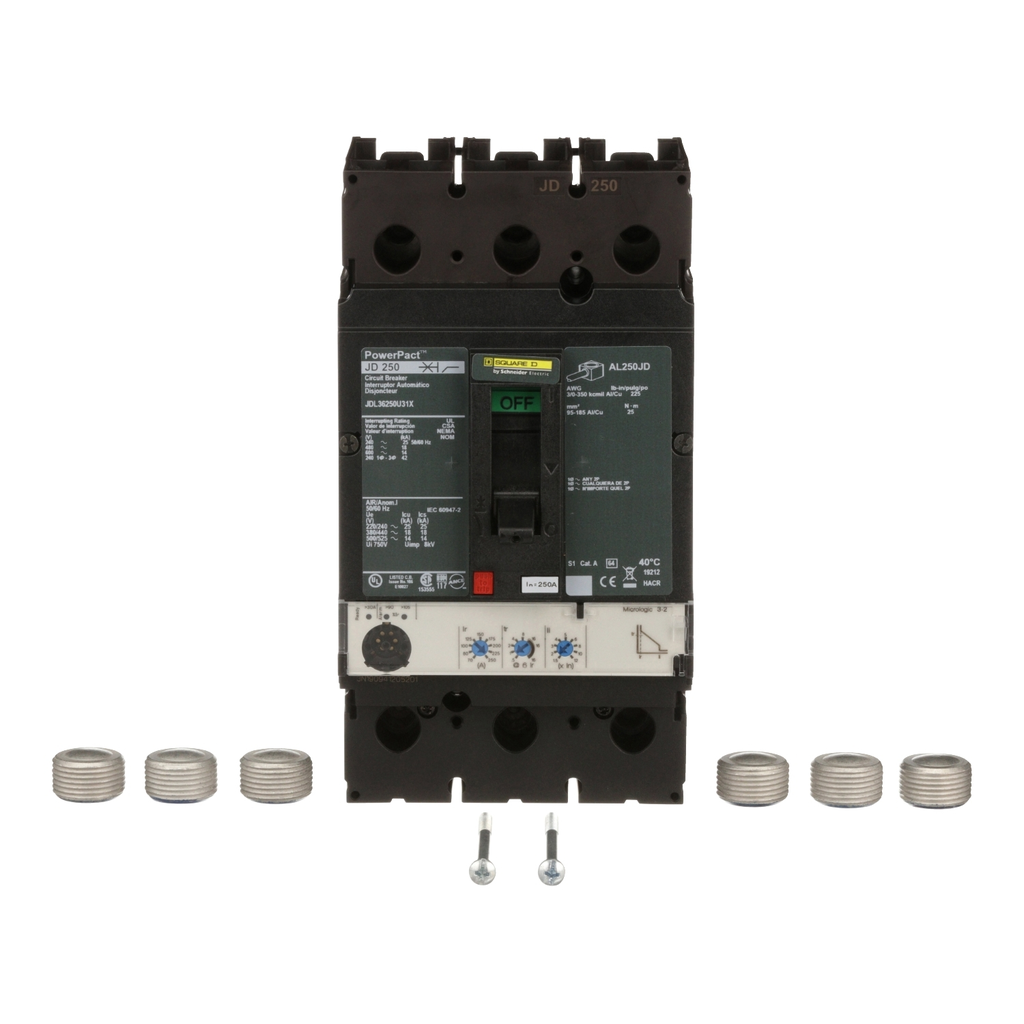

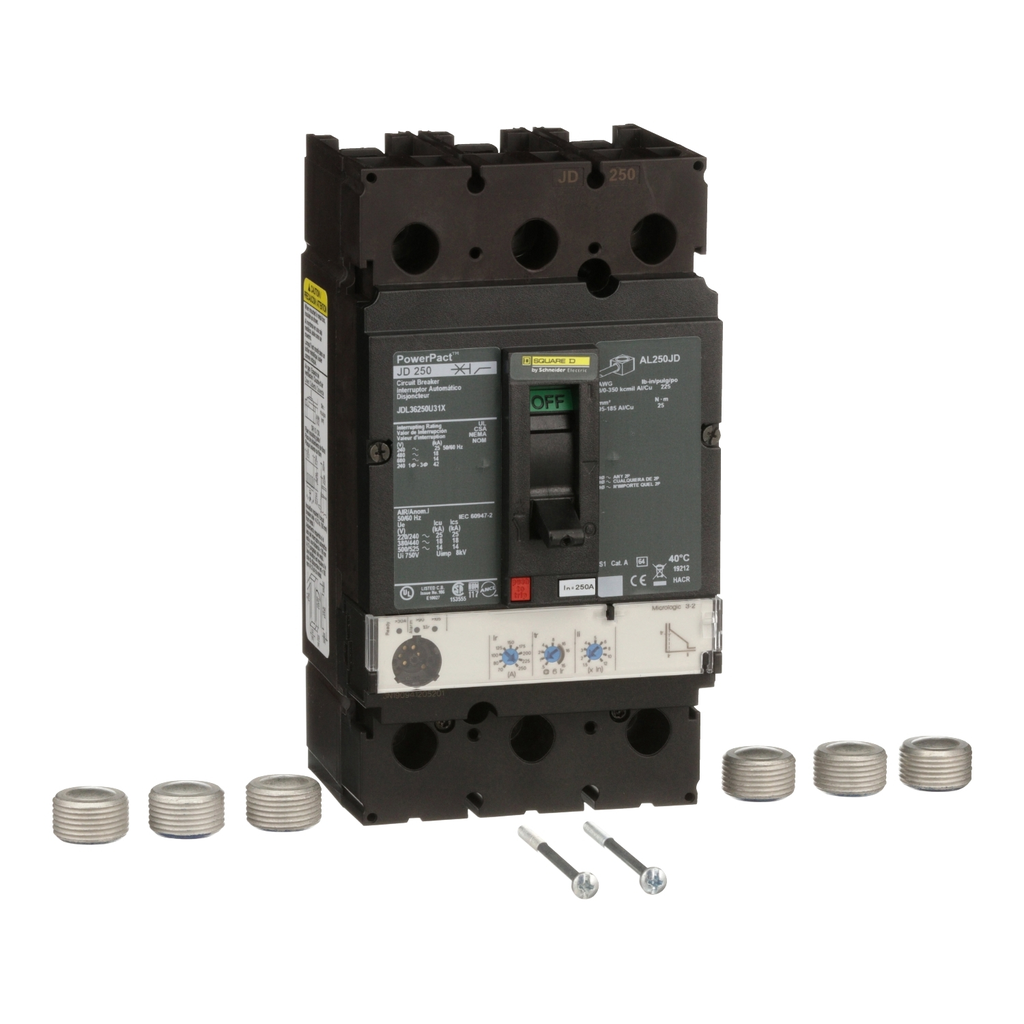

SQD JDL36250U31X Circuit breaker, P

Manufacturer: Square-D / Schneider | Catalog # JDL36250U31X | Cooper Electric Part # 1177338
$2,957.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
1 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Technical Information

Amperage
250 Amp
Applications
Distribution
Control Type
Toggle
Frame
D
Interrupt Rating
14, 18, 25 kAIC
Line Rated Current
250-250 A
Mounting Type
Unit Mount
Net Weight
2.4 kg
Number of Poles
3 Pole
Operating Temperature
50 Adegrees C
Range
PowerPact
Standard
CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
Storage Temperature
-50-85 degrees C
Strip Length
25 mm
TC Connection
Lugs line;lugs load; AWG 3/0...350 kcmil aluminium/copper terminals
Trip Point
2000-2000 A
Trip Range
250 A
Trip Type
Electronic, standard, MicroLogic 3.2, LI
Type
Circuit breaker
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901746072
GTiN
00785901746072
Product UPC
78590174607
Weight
2.4 kg

Dimensions

Depth
3.39 in
Height
4-1/2 Inch
Length
25 mm
Warranty Length
18 mth
Width
4.09 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Certifications
CSA,NOM,UL
Country of Origin
USA
IP Degree Of Protection
  • front cover IP40
Mounting Mode
  • unit mount lug)
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Carbon Footprint Of The Installation Phase A5
  • 0.016815777136949966
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 4 kg CO2 eq.
  • 3.6830019521492736
Electrical Connection
  • lugs, line
  • lugs, load
ICS Rated Service Breaking Capacity
  • 25 kA 220/240 V AC 50/60 Hz IEC 60947-2
  • 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2
  • 18 kA 380/
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 17 kg CO2 eq.
  • 17.064669120170347
UI Rated Insulation Voltage
  • 750 V IEC 60947-2
Accessories
  • VTRIPHJ
  • S29450
  • S29386
  • S29451
  • S29390
  • S29452
  • S37424
  • S37448
  • PDC3JD20
  • S29370
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 533 kg CO2 eq.
  • 533.372692790364
Number Of Slots
  • 2 auxiliary switch OF plug-in)
  • 1 alarm switch SD plug-in)
  • 1 overcurrent trip swi
Accessory Products
  • VTRIPHJ
  • S29450
  • S29386
  • S29451
  • S29390
  • S29452
  • S37424
  • S37448
  • PDC3JD20
  • S29370
Persona Type Ids
  • LC
  • OM
  • OM8
  • PB
Carbon Footprint Of The Distribution Phase A4
  • 0.6684283018593823
  • 0.7 kg CO2 eq.
Tightening Torque
  • 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Operating Altitude
  • < 6561.68 ft (2000 m) without derating
  • 5000 m with derating
Suitability For Isolation
  • yes IEC 60947-2
AWG Gauge
  • AWG 3/0...350 kcmil aluminium/copper terminals
Trip Unit Technology
  • electronic, standard, MicroLogic 3.2, LI
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Local Signalling
  • ready 1 LED green)
  • alarm 1 LED 90 % Ir orange)
  • alarm 1 LED 105 % Ir red)
  • alarm 1 LED 10
UE Rated Operational Voltage
  • 600 V AC 50/60 Hz IEC 60947-3
Product Certifications
  • UL
  • CSA
  • NOM
UIMP Rated Impulse Withstand Voltage
  • 8 kV IEC 60947-2
