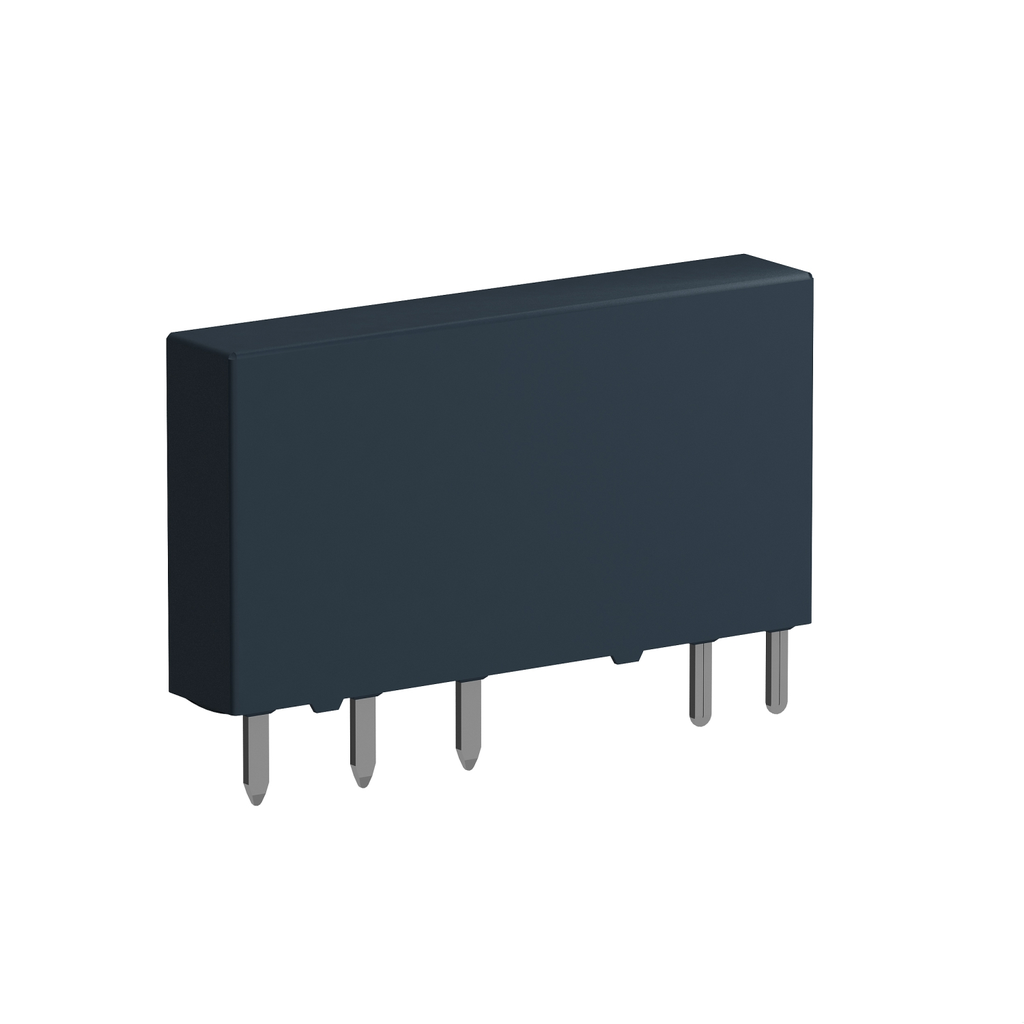

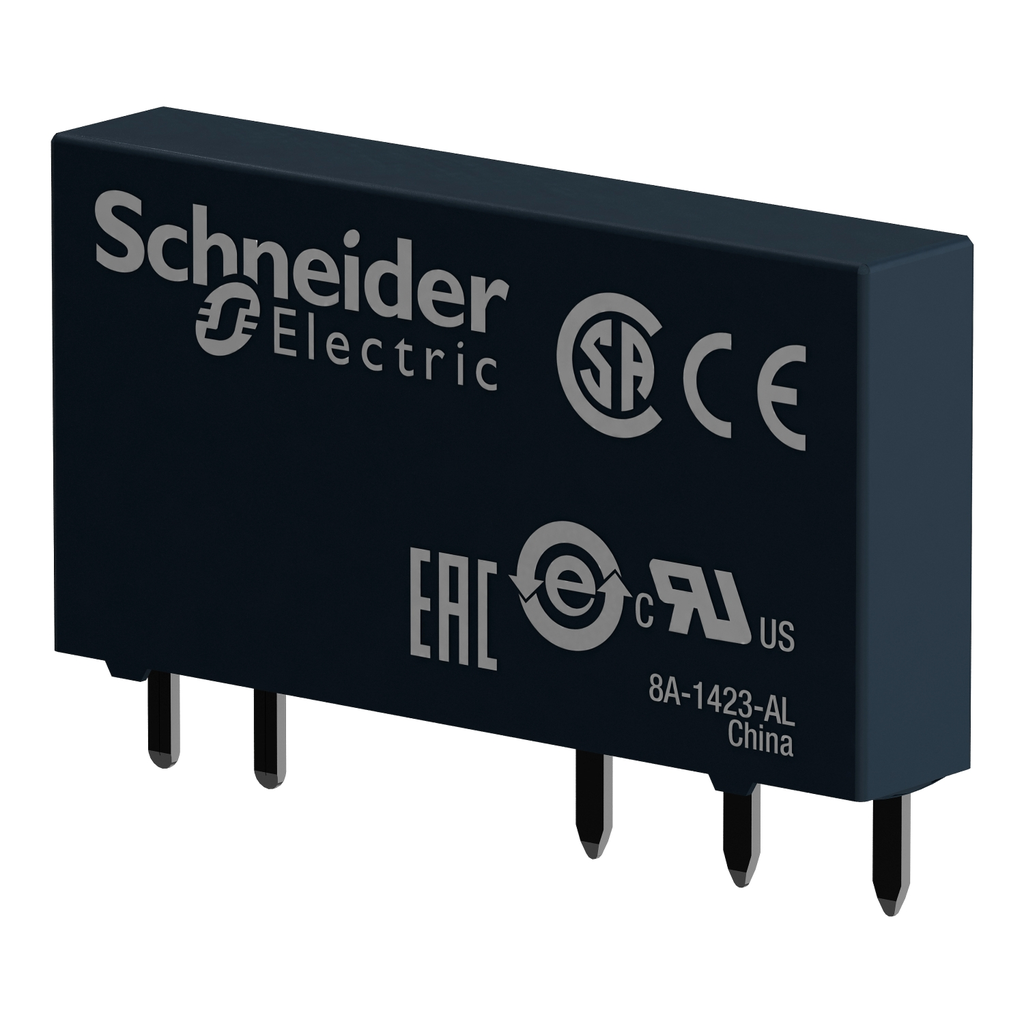

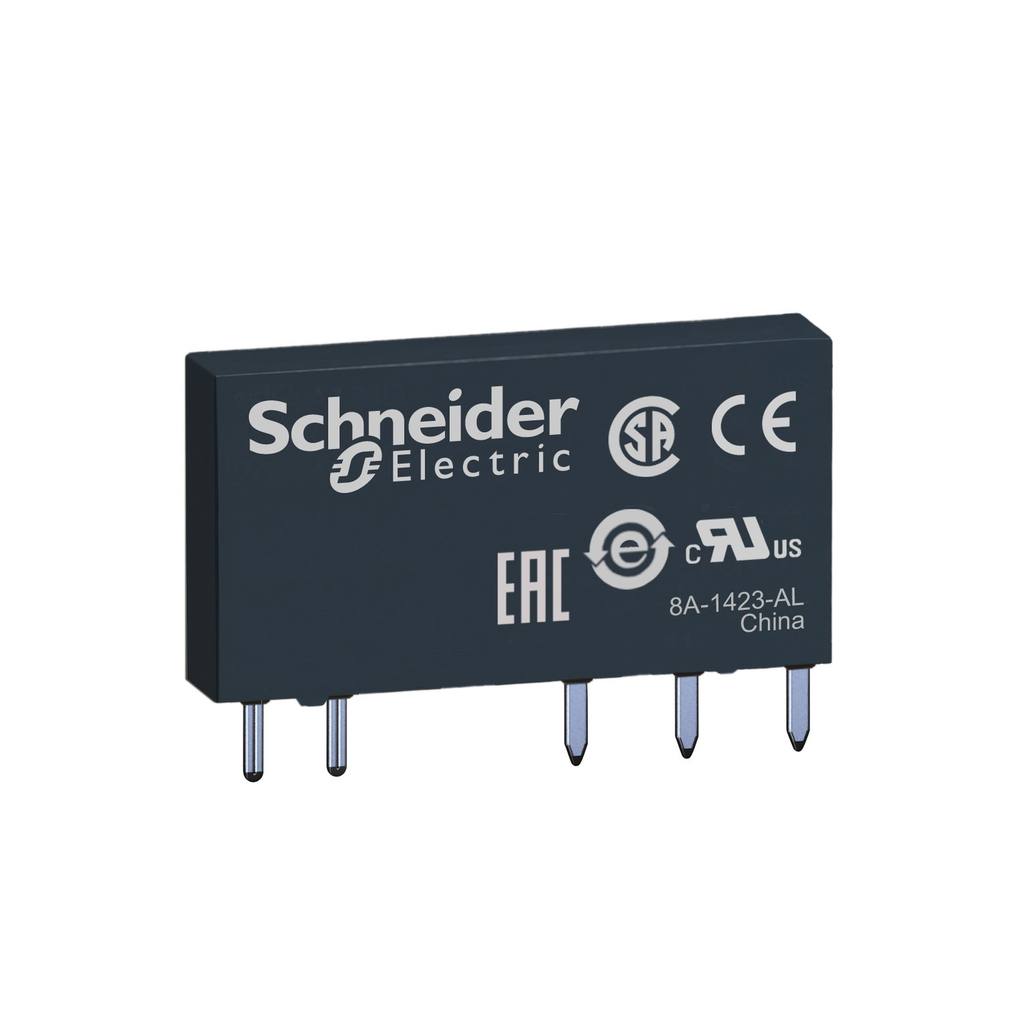

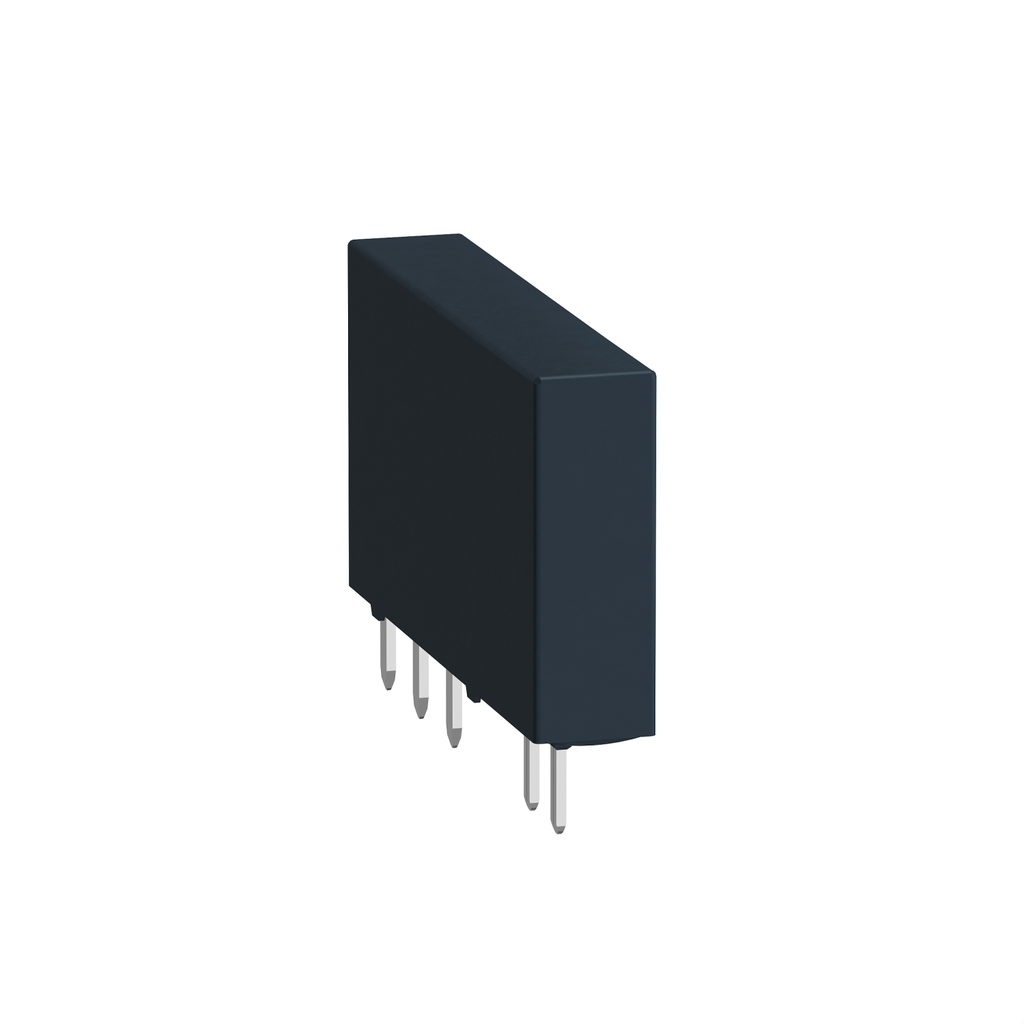

SQD RSL1AB4ED slim interface relay,

Manufacturer: Square-D / Schneider | Catalog # RSL1AB4ED | Cooper Electric Part # 1174214

$17.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
"This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 48V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0

Technical Information

Amperage
6 Amp 250 V AC 0.5 MM MOUNTING DISTANCE,6 Amp AC-1/DC-1)IEC/UL
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Dielectric Strength
1000 V
Line Rated Current
6 A
Net Weight
0.005 kg
Operating Cycles
<= 18000 Cycles/hour No-load,<= 360 Cycles/hour Under Load
Operating Temperature
-40-55 degrees C
Resistance
10600 OHM AT 23 C +/- 15
Size
18.5 MM,28 MM,5 MM
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-70 degrees C
Type
FLAT (PCB TYPE),PLUG-IN RELAY

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSL

General Product Info

12-Digit UPC
785901946328
GTiN
03606480077999
Product UPC
78590194632
Weight
0.005 kg

Dimensions

Depth
18.5 mm
Height
28 mm
Warranty Length
18 mth
Width
5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,EAC,UL
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RSLZVA2
  • RSLZ5
  • RSLZ3
