TYN 148-90002 HelaCon Plus Push-In,

Manufacturer: Hellerman-Tyton | Catalog # 148-90002 | Cooper Electric Part # 1172646
$23.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

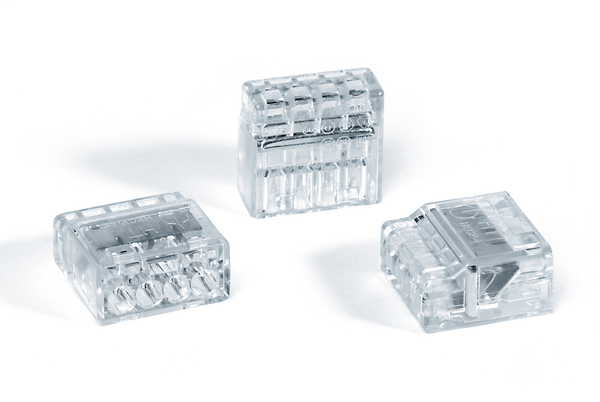

Helacon Plus is a unique push-in wire connector with double spring technology. Double spring design requires less insertion force and delivers superior retention values. Helps alleviate repetitive motion injuries often associated with twist-on style connectors. 4-Port, Polycarbonate, Clear, 75/pkg

Technical Information

Applications

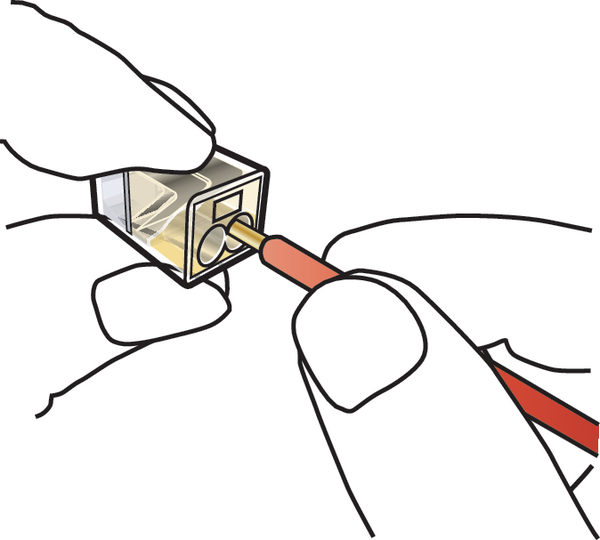

HelaCon Plus push-in style wire connectors are unique in that they contain DOUBLE-SPRING DESIGN that delivers a safe, consistent and reliable wire connection. The Double Spring Design requires a low insertion force, thus reducing wiring time and operator hand strain while providing a significantly higher retention value. HelaCon Plus offers an ergonomically-friendly alternative to the traditional twist on style wire connectors.
Flamability Class
UL 94 V2
Material
Polycarbonate
Max Current
24 A
Max Voltage
600 V
Operating Temperature
-30 To 85 degrees C
Size
0.41 IN
Standard
UL Listed (US And Canada)
Type
HECP-4

Manufacturer Information

Brand
HellermannTyton
Sub Brand
Wire Connectors

General Product Info

12-Digit UPC
089306277231
Color
Transparent
GTiN
00089306277231
Product UPC
08930627723
Weight
12.9 oz

Dimensions

Height
10.45 mm
Length
19 mm
Width
20.05 mm
Features
  • Sophisticated push-in wire connector
  • For professional cable connections in electrical housing
  • Double spring for easy processing
  • Supports installers in difficult situations like overhead work
  • For proper fixing that can be visually checked through transparent housing
  • Different colour codes for comfortable identification
  • Separate voltage test entry on front
  • Safe application, installation and maintenance
Application

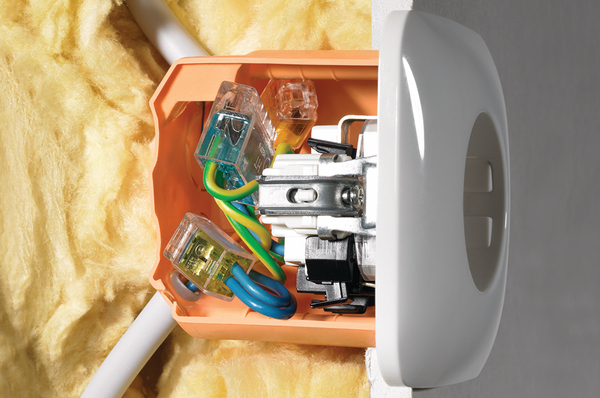

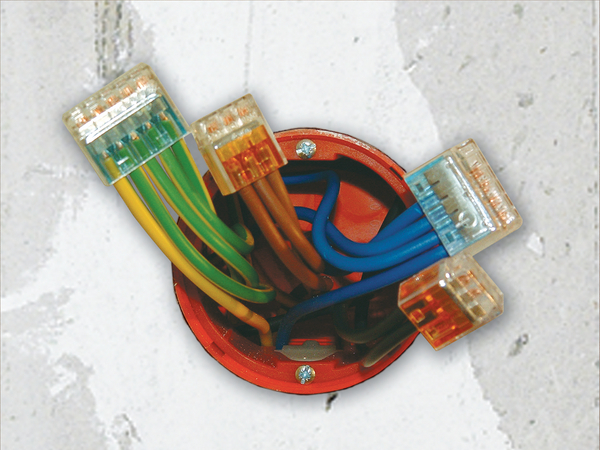

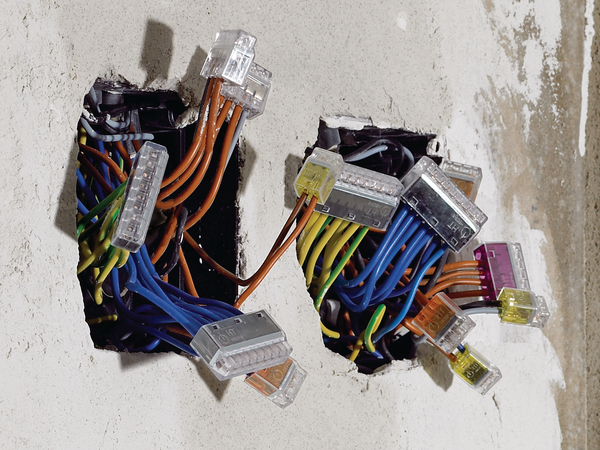

  • The HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in the field of electrical housing applications. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon Plus offers the best possible solution when convenient processing and maximum safety is required.
