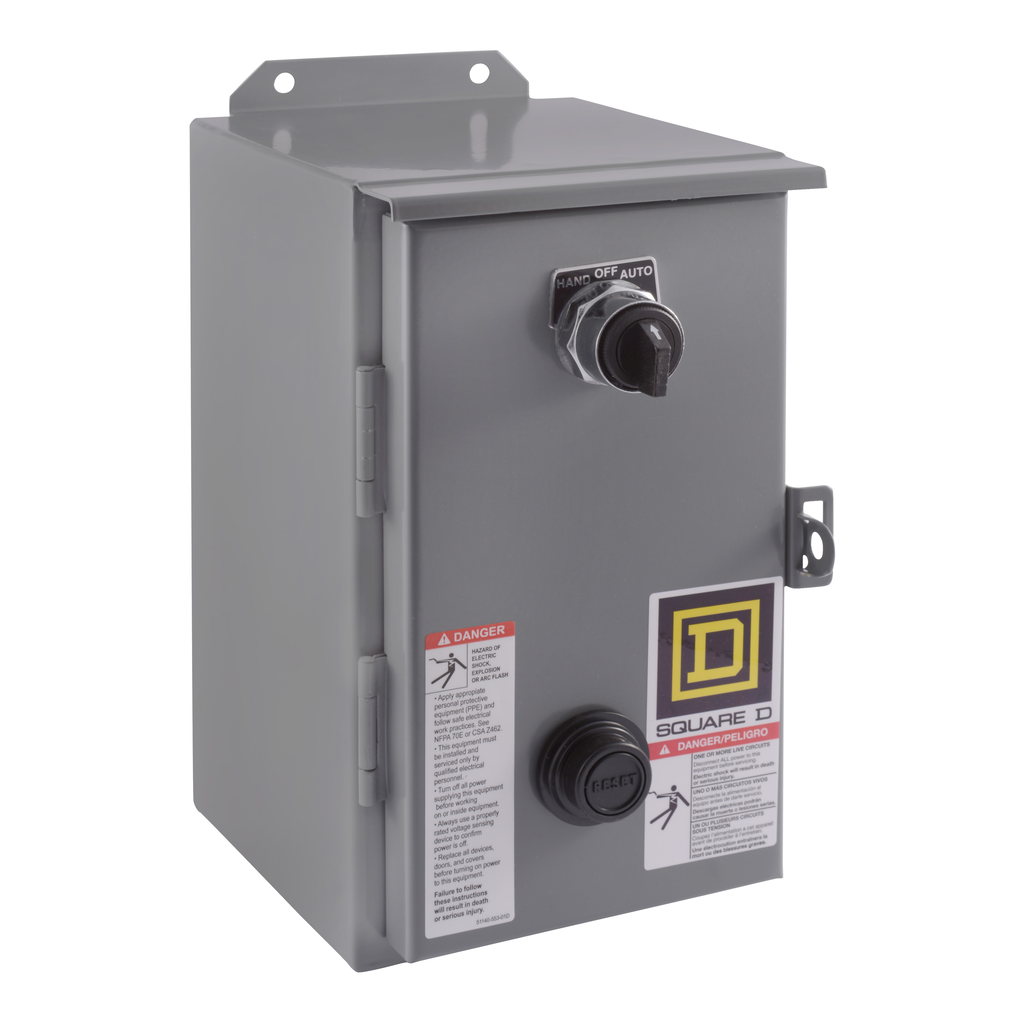

Square D 8536SBA2V81CFF4T 480/120 VAC 18 Amp 5 Hp 3-Pole NEMA 3R/12 Full Voltage Non-Reversing Magnetic Starter

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 12/3R dusttight and driptight industrial use enclosure is used to protect this starter. Enclosure is 13.50 inches tall, 11.88 inches wide and 8.00 inches deep. A wide variety of accessories are available for Type S starters. This starter is supplied with fused transformer. Transformer has a 480 VAC primary and a 120 VAC secondary. This starter is also supplied with a HOA selector switch. Type S NEMA starters are UL listed and CSA certified.
