SQD ATV630D37N4 Variable Speed Driv

Manufacturer: Square-D / Schneider | Catalog # ATV630D37N4 | Cooper Electric Part # 1171672
$7,850.78 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
1 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

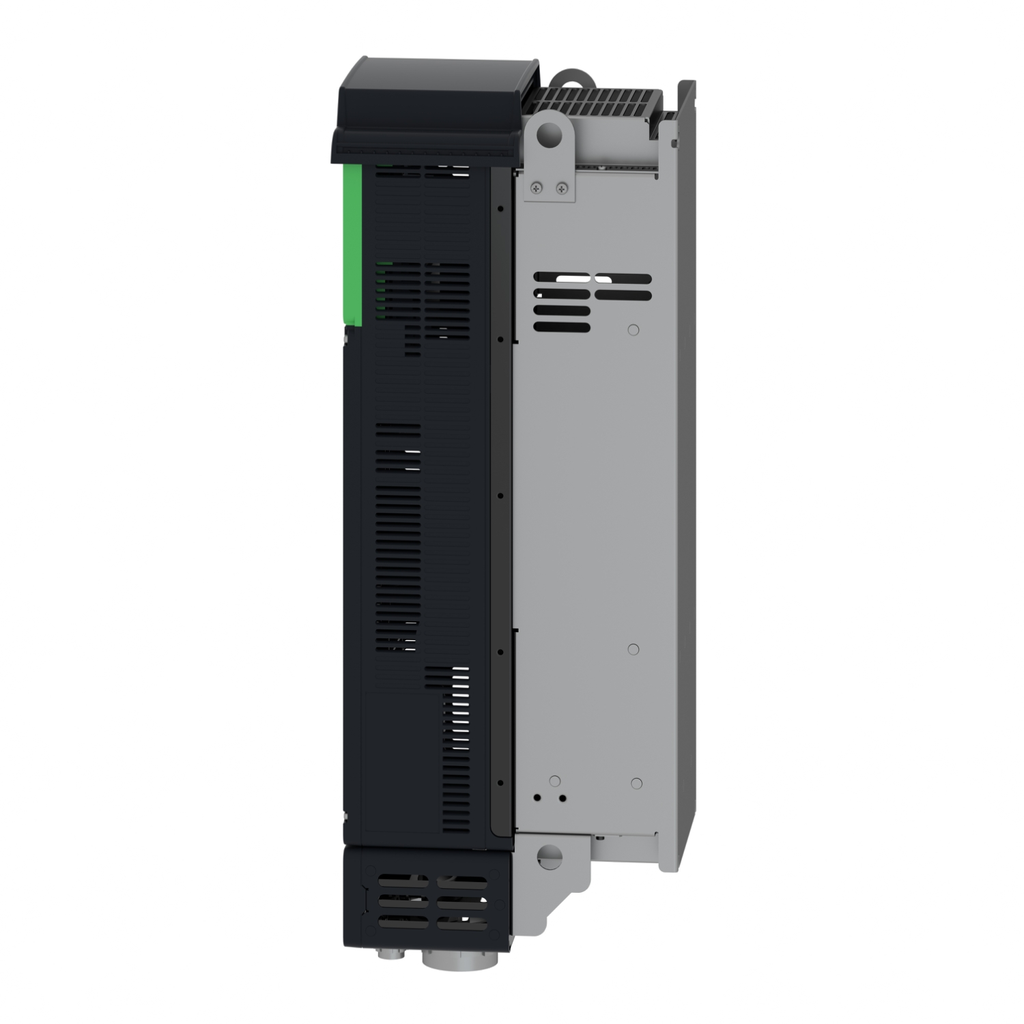

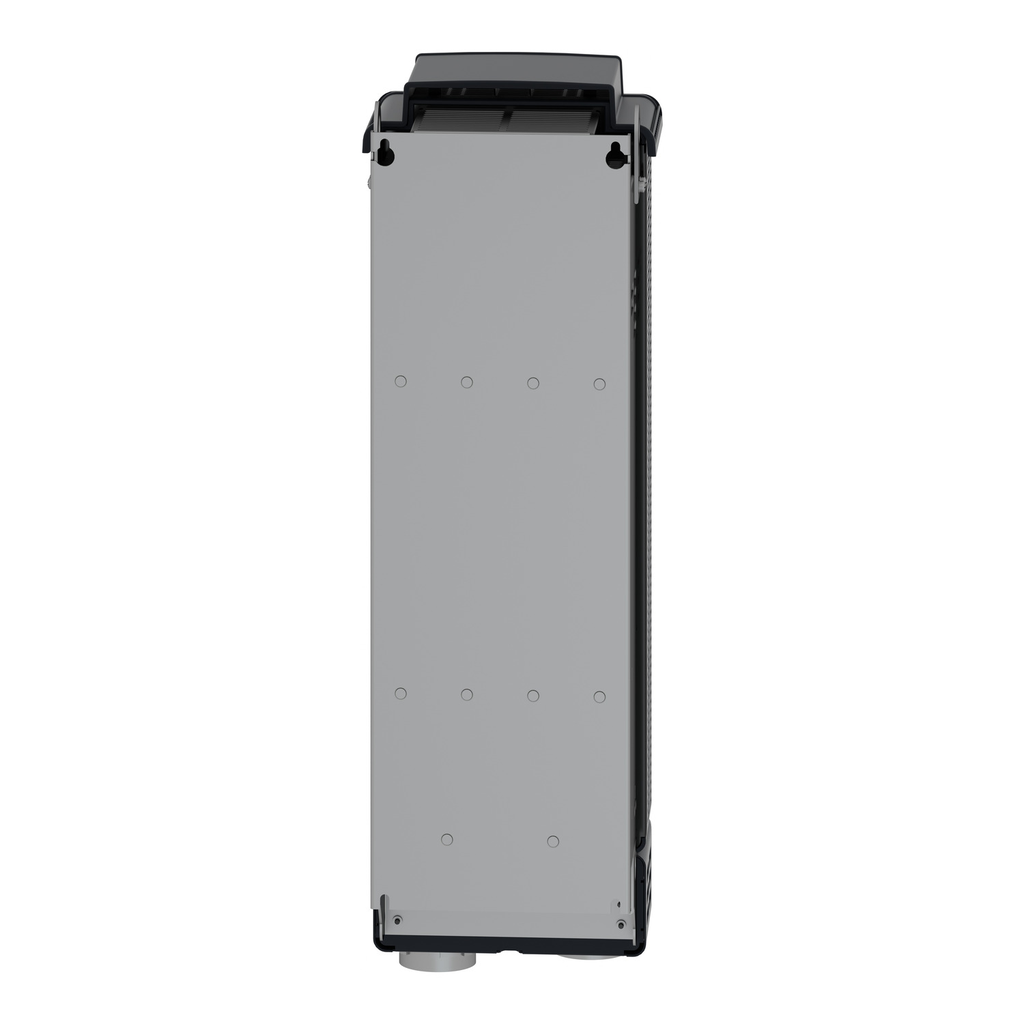

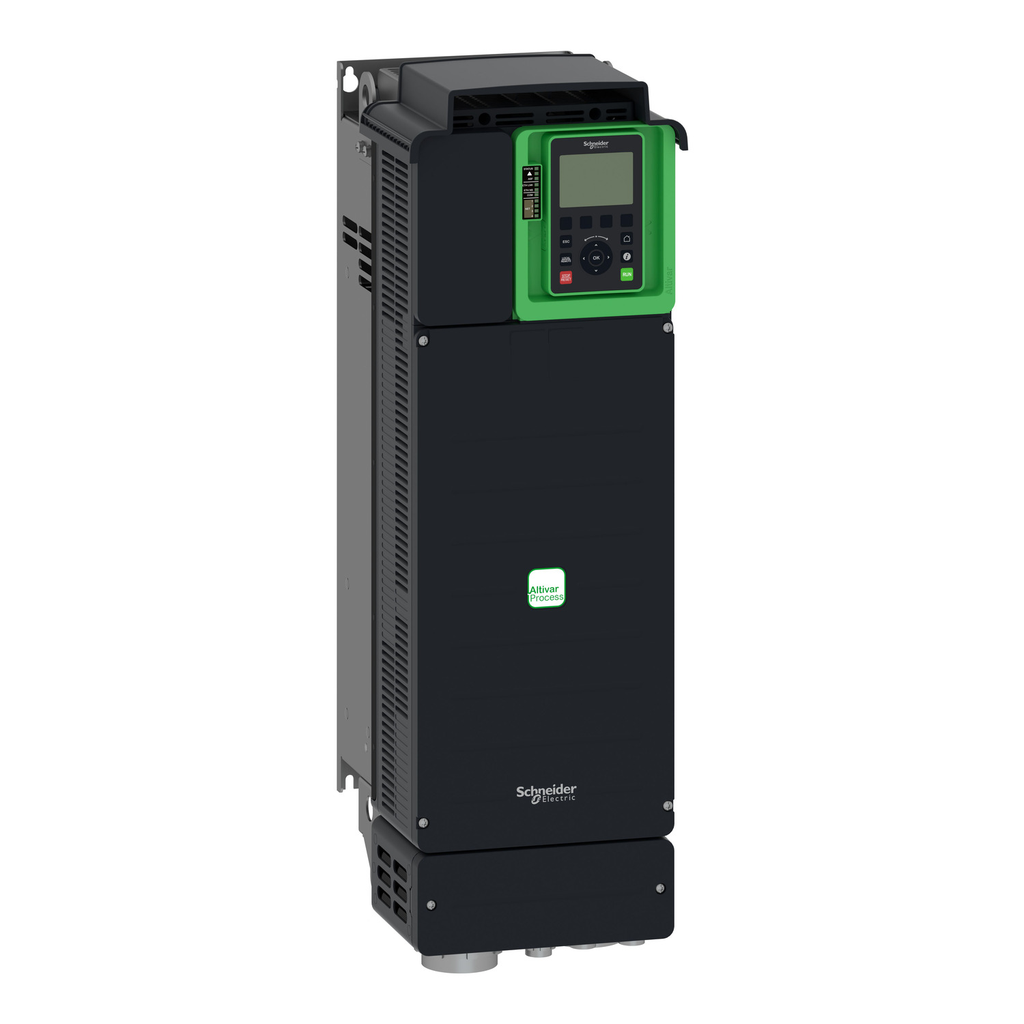

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ..Stop and Go..operation without additional costs. It is suitable for motors with power rating up to 37kW / 50hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 30kW / 40hp for applications requiring significant overload (up to 150%). It weighs 28.2kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 .) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Technical Information

Applications
Asynchronous motors;Synchronous motors;Process and utilities
Connection Type
RJ45 On The Remote Graphic Terminal)Ethernet/Modbus TCP,RJ45 On The Remote Graphic Terminal)Modbus Serial
Connector Type
RJ45 on the remote graphic terminal)Ethernet/Modbus TCP;RJ45 on the remote graphic terminal)Modbus serial
Mounting Type
Wall-Mounted
Net Weight
28.2 kg
Number of Phases
3 Phase
Output Voltage
<= power supply voltage
Size
10.67 in
Standard
EN/IEC 61800-3,EN/IEC 61800-3 Environment 1 Category C2,EN/IEC 61800-3 Environment 2 Category C3,EN/IEC 61800-5-1,IEC 13849-1,IEC 60721-3,IEC 61000-3-12,IEC 61508,UL 508C
Storage Temperature
-40-70 degrees C
Type
Variable speed drive

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ATV630

General Product Info

12-Digit UPC
360648070149
Environmental Conditions
-15-50 A?C WITHOUT)-50-60 A?C WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3
GTiN
03606480701429
Product UPC
78590195556
Weight
28.2 kg

Dimensions

Depth
10.67 in
Height
26.5 in
Width
8.9 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX INERIS,ATEX Zone 2/22,CSA,DNV-GL,TV,UL
Country of Origin
India
Insulation Resistance
  • > 1 MOhm 500 V DC for 1 minute to earth
Environmental Class During Storage
  • class 1C3 according to EN 60721-3-1
  • class 1S2 according to EN 60721-3-1
Power Range
  • 30-50 kW 380-440 V 3 phase
  • 30-50 kW 480-500 V 3 phase
Connector Type
  • RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
  • RJ45 on the remote graphic terminal)Modbus serial
  • RJ45 on the remote graphic terminal)
US Rated Supply Voltage
  • 380...480 V - 15...10 %
Exchange Mode
  • half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000983_3D-CAD&p_File_name=MCADID0000983_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000983_3D-CAD&p_File_name=MCADID0000983_2D-back.dwg
  • https://downlo
Analogue Input Type
  • AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
  • AI1, AI2, AI3 software-configura
IP Degree Of Protection
  • IP21IEC 61800-5-1
  • IP21IEC 60529
Continuous Output Current
  • 74.5 A 4 kHz normal duty
  • 61.5 A 4 kHz heavy duty
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Analogue Output Type
  • software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
  • software-configurable voltage AQ1, AQ2 0...10 V DC 47
Carbon Footprint Of The Installation Phase A5
  • 5 kg CO2 eq.
  • 4.8750496027
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 8.0073678904
  • 8 kg CO2 eq.
Standards
  • UL 508C
  • IEC 61800-3
  • environment 1 category C2 IEC 61800-3
  • environment 2 category C3 IEC 61800-3
  • IEC 61800-5-1
  • IEC 61000-3-12
  • IEC 60721-3
  • IEC 61508
  • IEC 13849-1
Discrete Input Type
  • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
  • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V
Electrical Connection
  • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
  • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 1
Related Products
  • VW3A1112
  • VW3A3721
  • VW3A3203
  • VW3A3204
  • VW3A3609
  • VW3A3725
  • VW3A3618
  • VW3A3607
  • VW3A3608
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 321 kg CO2 eq.
  • 320.671639726
Method Of Access
  • slave Modbus TCP
Line Current
  • 66.2 A 380 V normal duty)
  • 57.3 A 480 V normal duty)
  • 54.8 A 380 V heavy duty)
  • 48.3 A 480 V heavy duty
Motor Slip Compensation
  • adjustable
  • can be suppressed
  • not available in permanent magnet motor law
  • automatic whatever the load
Maximum Switching Current
  • relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
  • relay output R
Relay Output Type
  • configurable relay logic R1 fault relay NO/NC 100000 cycles
  • configurable r
Input Compatibility
  • DI1...DI6 discrete input level 1 PLC IEC 61131-2
  • DI5, DI6 discrete input level 1 PLC IEC 65A-68
  • DI5, DI6 di
Frequency Resolution
  • display unit 0.1 Hz
  • analog input 0.012/50 Hz
Protection Type
  • thermal protection motor
  • safe torque off motor
  • motor phase break motor
  • thermal protection drive
  • safe torque off drive
  • overheating drive
Supply
  • external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
  • external supply for digital inputs 24 V DC 19-30 V), <
Permissible Temporary Current Boost
  • 1.1 x In 60 s normal duty)
  • 1.5 x In 60 s heavy duty)
Sampling Duration
  • 2 ms +/- 0.5 ms DI1...DI4) - discrete input
  • 5 ms +/- 1 ms DI5, DI6) - discrete input
  • 5 ms +/- 1 ms DI5, DI6) - discrete in
Linearity Error
  • AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
  • AO1, AO2 +/- 0.2 % analog output
  • AO1, AO2 +/- 0.2 % anal
Environmental Class During Operation
  • class 3C3 according to IEC 60721-3-3
  • class 3S3 according to IEC 60721-3-3
Maximum Horse Power Rating
  • 50 hp normal duty
  • 40 hp heavy duty
Vibration Resistance
  • 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
  • 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
  • 1 gn (f= 13-200 Hz) con
Option Card
  • slot A communication module, Profibus DP V1
  • slot A communication module, PROFINET
  • slot A c
Persona Type Names
  • End User
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • System Integrator
Motor Power KW
  • 37 kW normal duty)
  • 30 kW heavy duty)
Refresh Time
  • relay output R1, R2, R3)5 ms +/- 0.5 ms)
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 30 480 kg CO2 eq.
  • 30479.7353508897
Electromagnetic Compatibility
  • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
  • radiated radio-frequency electro
Supply Frequency
  • 50...60 Hz - 5...5 %
Apparent Power
  • 47.6 kVA 480 V normal duty)
  • 40.2 kVA 480 V heavy duty)
Relative Humidity
  • 5-95 % without condensation IEC 60068-2-3
Persona Type Ids
  • EU
  • OM
  • OM8
  • SI
Environmental Class During Transport
  • class 2C3 according to EN 60721-3-2
  • class 2S1 according to EN 60721-3-2
Number Of Addresses
  • 1-247 Modbus serial
Maximum THDI
  • <48 % from 80...100 % of load IEC 61000-3-12
EMC Filter
  • integrated 50 m IEC 61800-3 category C2
  • integrated 150 m IEC 61800-3 category C3
  • integrated 1
Carbon Footprint Of The Distribution Phase A4
  • 4.6467243699
  • 5 kg CO2 eq.
Synchronous Motor Control Profile
  • permanent magnet motor
  • synchronous reluctance motor
Minimum Switching Current
  • relay output R1, R2, R3 5 mA 24 V DC
Operating Altitude
  • <= 3280.84 ft (1000 m) without derating
  • 1000...4800 m with current derating 1 % per 100 m
Noise Level
  • 63.5 dB 86/188/EEC
Safety Function
  • STO (safe torque off) SIL 3
Discrete Input Logic
  • positive logic (source) DI1...DI8), < 5 V, > 11 V
  • negative logic (sink) DI1...DI8), > 16 V, < 10 V
  • negat
Asynchronous Motor Control Profile
  • constant torque standard
  • optimized torque mode
  • variable torque standard
Discrete Output Type
  • relay outputs R1A, R1B, R1C 250 V AC 3000 mA
  • relay outputs R1A, R1B, R1C 3
Shock Resistance
  • 15 gn 11 ms IEC 60068-2-27
Maximum Transient Current
  • 82 A 60 s normal duty)
  • 92.3 A 60 s heavy duty)
Discrete And Process Manufacturing
  • building - HVAC compressor centrifugal
  • food and beverage processing other application
  • mining mineral and metal fan
  • mining mineral and metal
Power Dissipation In W
  • natural convection 106 W 380 V 4 kHz
  • forced convection 796 W 380 V 4 kHz
  • forced convection 796 W 380 V 4 kH
Local Signalling
  • 3 LEDs for local diagnostic
  • 3 LEDs (dual colour) for embedded communication status
  • 4 LEDs (dual colour) for communic
Ambient Air Temperature For Operation
  • -15-50 °C (without derating)
  • 50-60 °C (with derating factor)
UE Rated Operational Voltage
  • 380...480 V 37 kW 50 hp normal duty
  • 380...480 V 30 kW 40 hp heavy duty
  • 380..
Switching Frequency
  • 2...12 kHz adjustable
  • 4...12 kHz with derating factor
