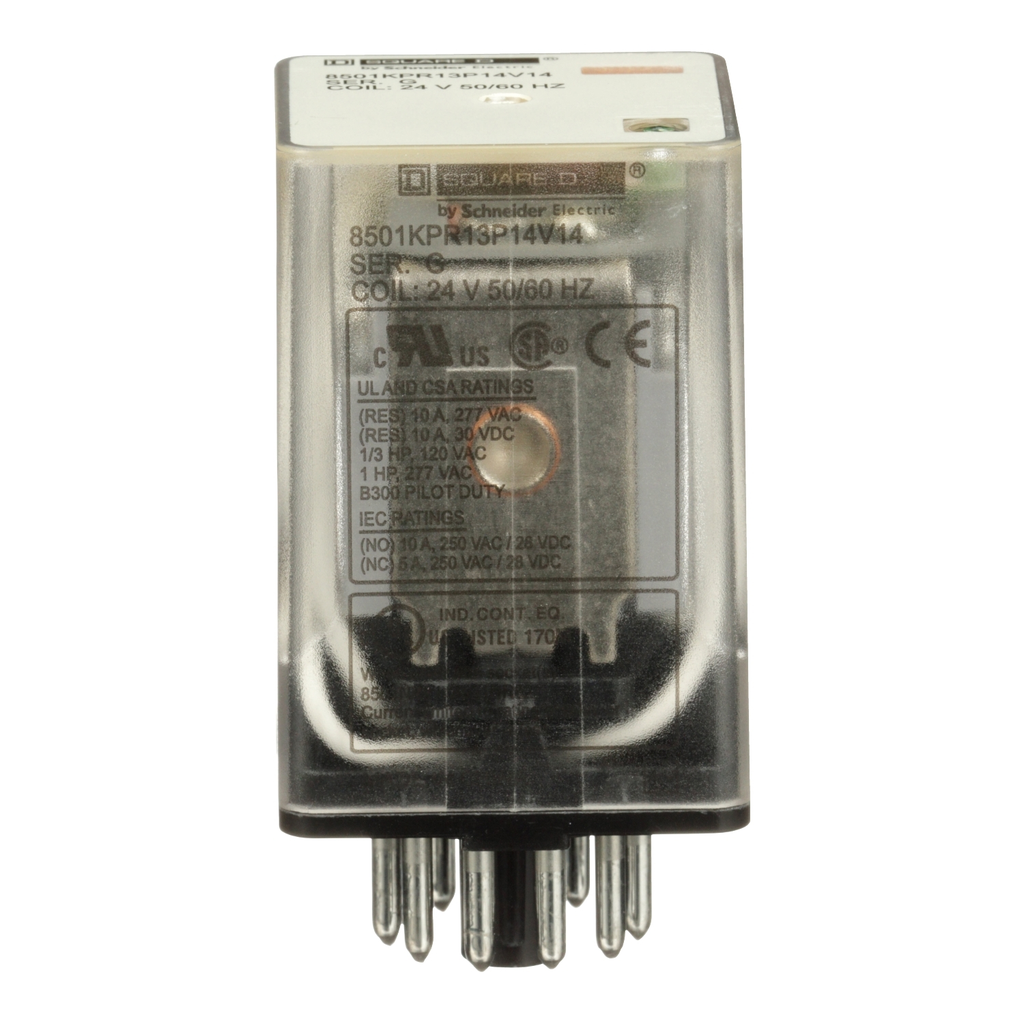

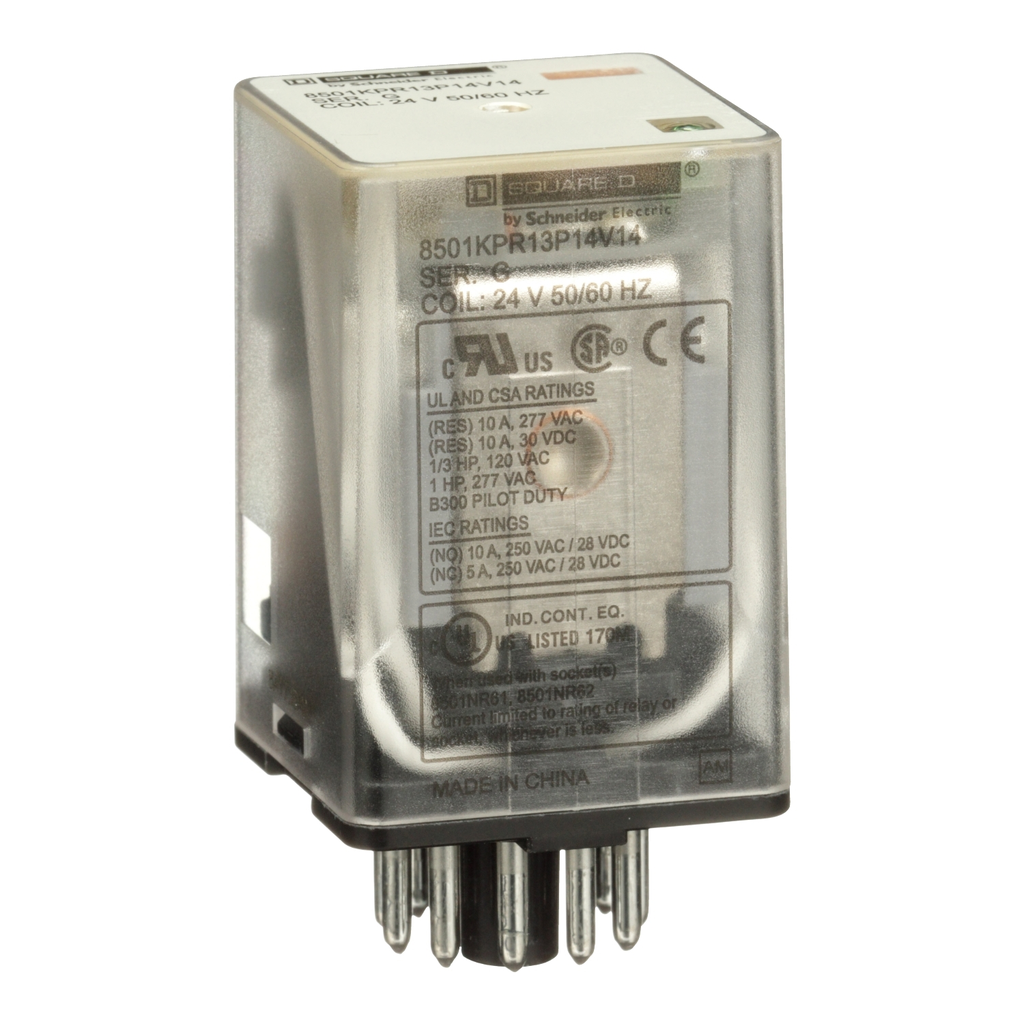

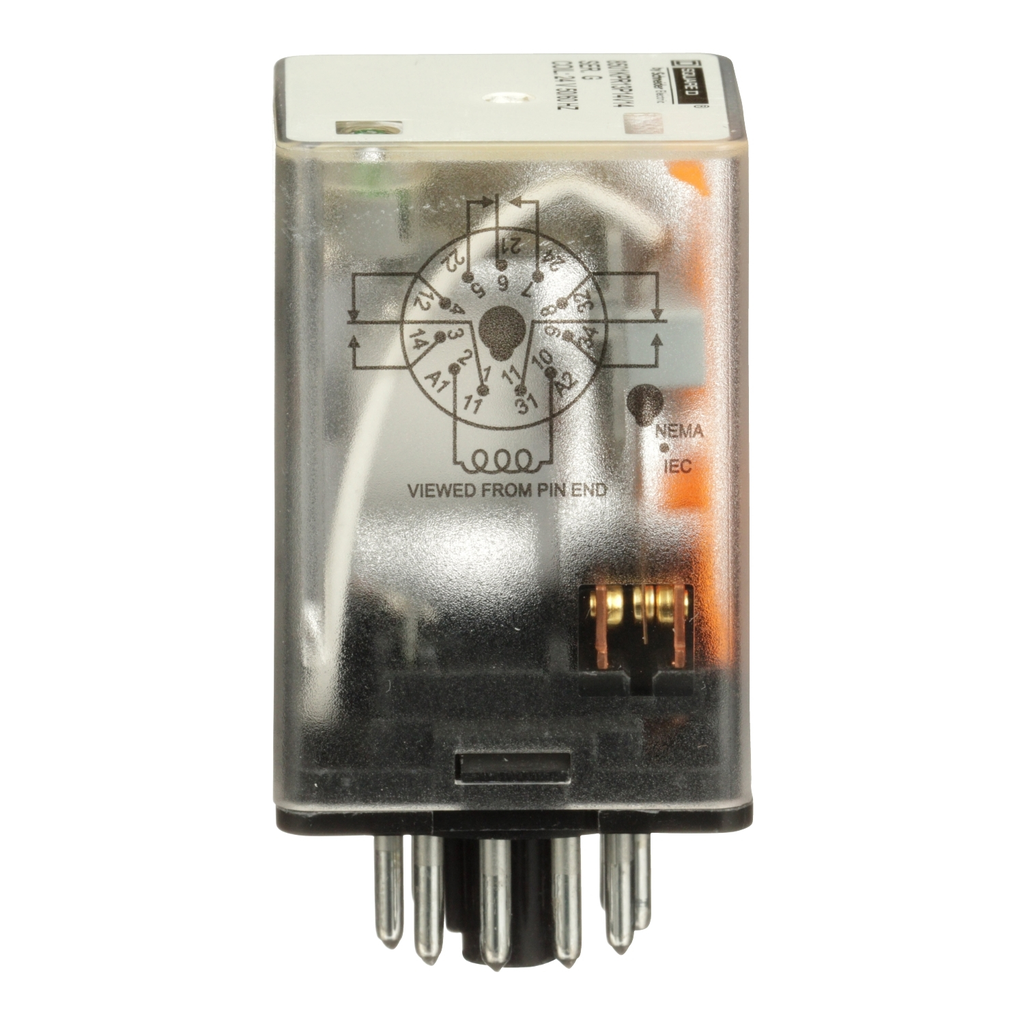

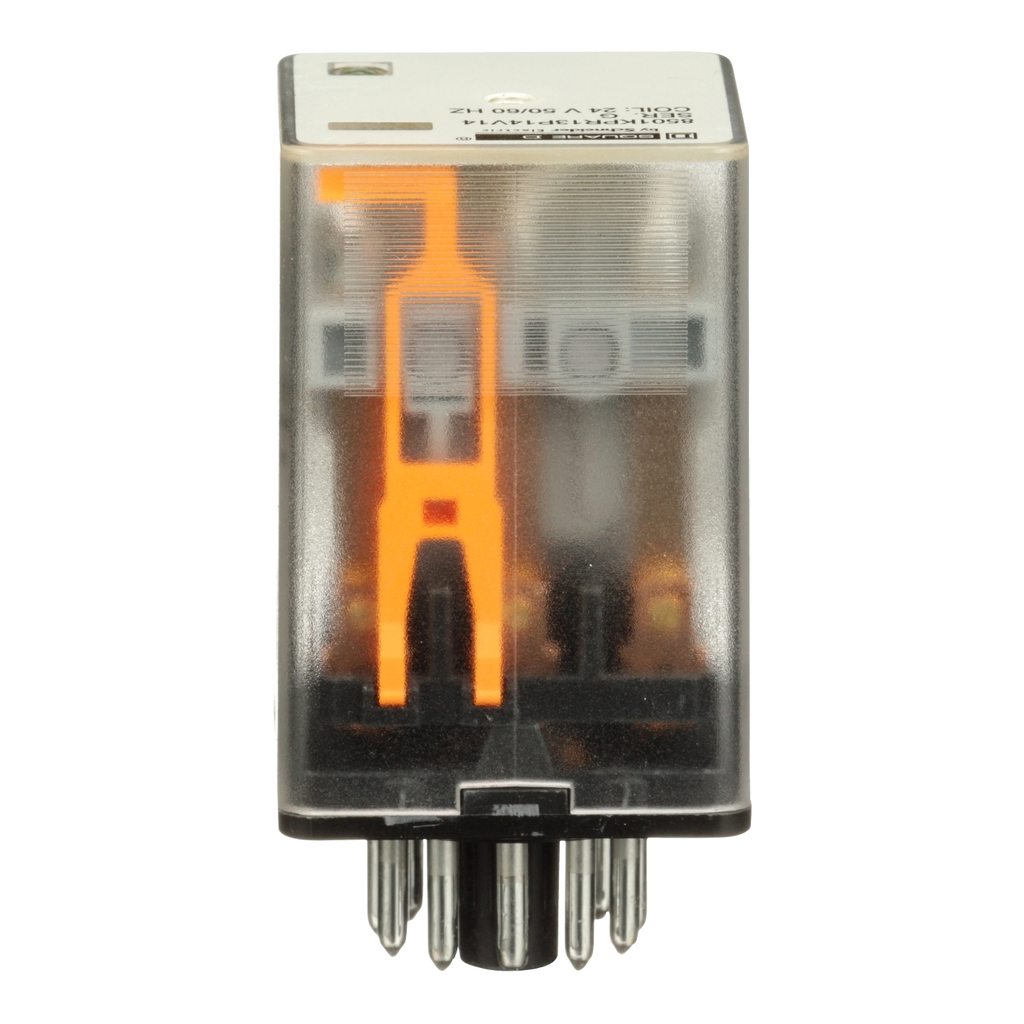

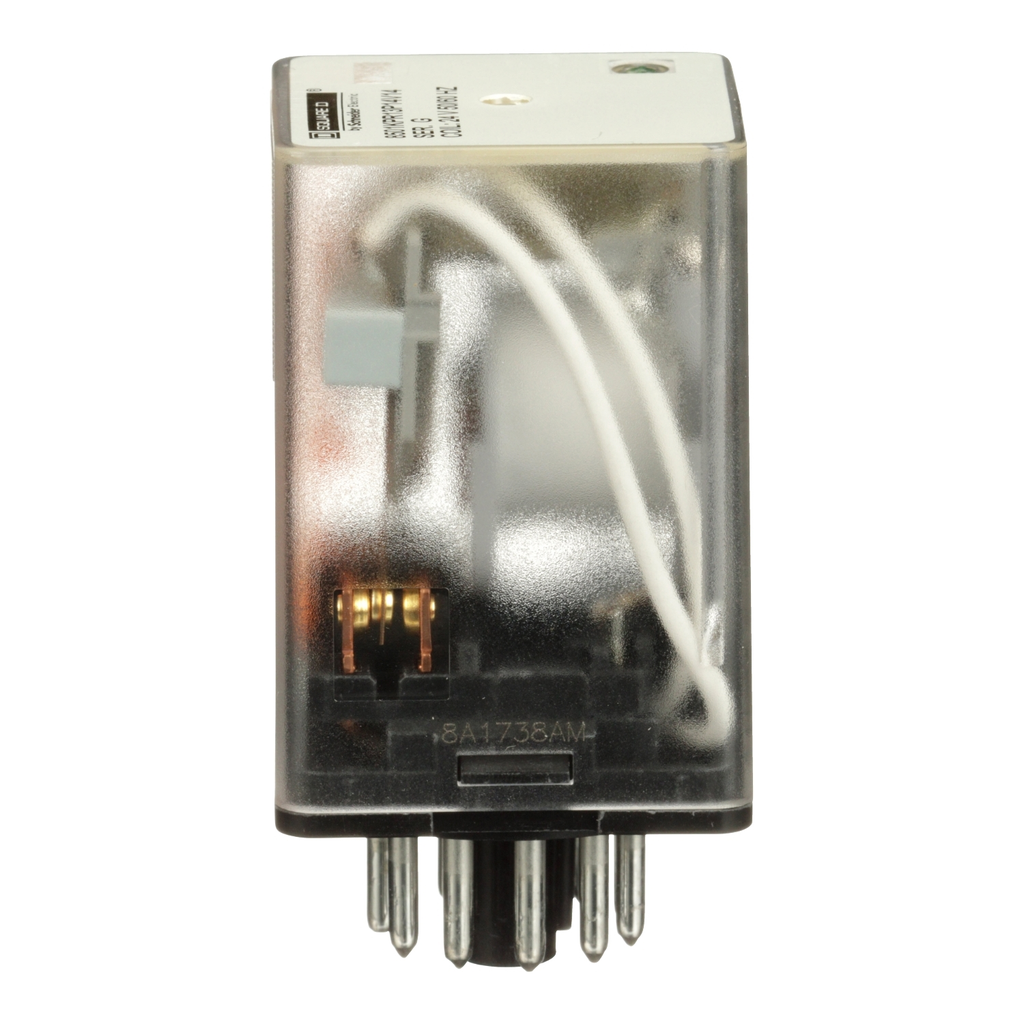

SQD 8501KPR13P14V14 RELAY 3CO CYL P

Manufacturer: Square-D / Schneider | Catalog # 8501KPR13P14V14 | Cooper Electric Part # 1169920
$64.66/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR61 or 8501NR62 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Technical Information

Applications
1 HP 277 V AC-0.33 HP 120 V AC,8501NR62-8501NR61
Contact Configuration
3PDT
Contact Material
Silver Alloy
Mounting Type
Socket
Operating Temperature
-40-131 Adegrees F
Type
3PDT,GENERAL PURPOSE,RELAY

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901338475
GTiN
00785901338475
Product UPC
78590133847
Used With
8501NR62;8501NR61

Dimensions

Depth
1.4 Inch
Height
2.66 Inch
Width
1.4 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Listed,UL Recognized
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 8501NR61
  • 8501NR62
  • 8501NH7
  • 8501NR61B
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
