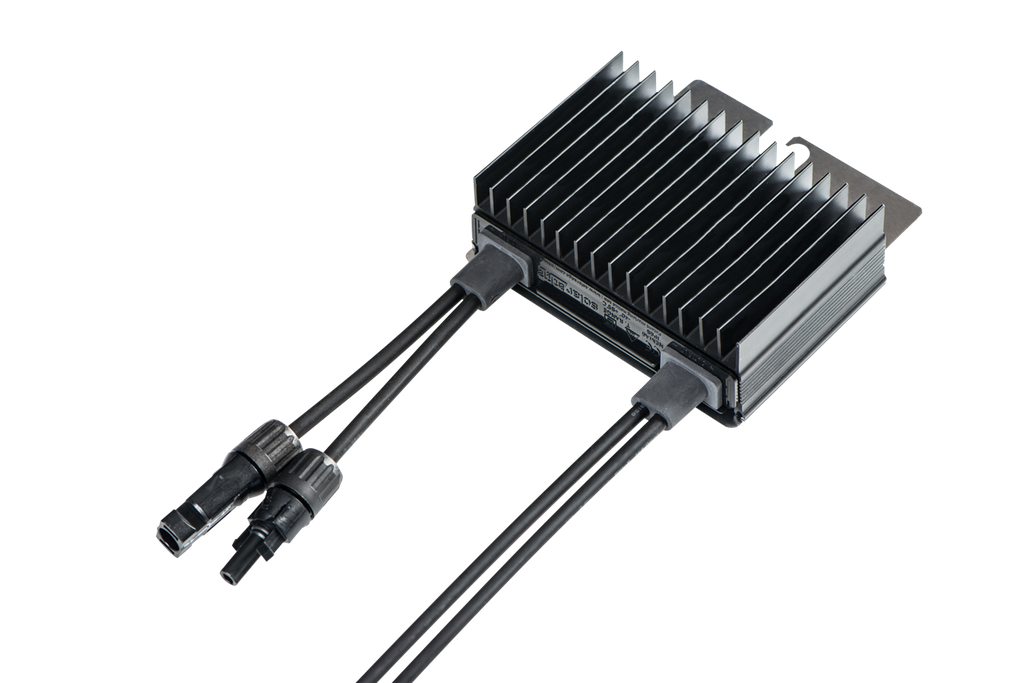

Product image for SolarEdge P730 2:1 Solar Optimizer 730W-125V - Commercial Inverters only - 208V/480V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

SolarEdge P730 2:1 Solar Optimizer 730W-125V - Commercial Inverters only - 208V/480V

Manufacturer: SolarEdge | Catalog # P730 | Cooper Electric Part # 1165161
$70.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Commercial solution connecting two modules per power optimizer

Technical Information

Applications
2:1 Optimizer 730W/125V - Commercial Inverters only - 208V/480V (sold in box of 10, 420/pallet)
IP Rating
IP68
Max Output Voltage
85 V
NEMA Size
6P
Operating Temperature
-40 To 185 degrees F
Type
Commercial
Wire Length
6.9 ft

Manufacturer Information

Brand
SolarEdge Technologies
Sub Brand
Optimizer

General Product Info

Product UPC
S0001100081
Weight
2.34 lb

Dimensions

Height
1.9 Inch
Length
6 Inch
Width
5.1 in
Overview

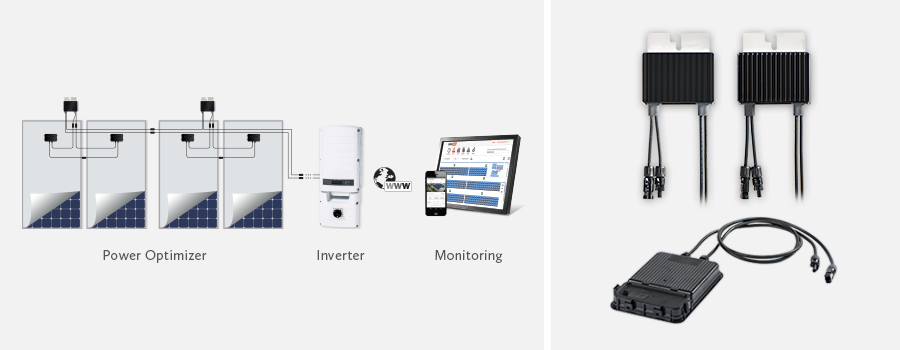

  • The SolarEdge power optimizer is a DC/DC converter which is connected by installers to each PV module or embedded by module manufacturers, replacing the traditional solar junction box. The SolarEdge power optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually. Furthermore, the power optimizers monitor the performance of each module and communicate performance data to the SolarEdge monitoring portal for enhanced, cost-effective module-level maintenance. Each power optimizer is equipped with the unique SafeDC™ feature which automatically shuts down modules' DC voltage whenever the inverter or grid power is shut down.
  • The MPPT per module allows for flexible installation design with multiple orientations, tilts and module types in the same string. When working with SolarEdge Inverters, SolarEdge power optimizers automatically maintain a fixed string voltage, allowing installers even greater flexibility with longer strings and strings of different lengths in order to design optimal PV systems.
  • The SolarEdge power optimizers are compatible with c-Si and thin-film modules and have a 25 year warranty.
Features
  • Module level Maximum Power Point Tracking (MPPT)
  • Superior efficiency (99.5% peak efficiency, up to 98.8% weighted efficiency)
  • Mitigates all types of modules mismatch-loss, from manufacturing tolerance to partial shading
  • Designed for extreme environmental conditions
  • 25 year reliability and warranty
  • Advanced, real-time performance measurement
  • Automatic module DC voltage shut-down for installer and firefighter safety
  • Embedded by module manufacturers, or connected by installers to c-Si and thin-film modules
