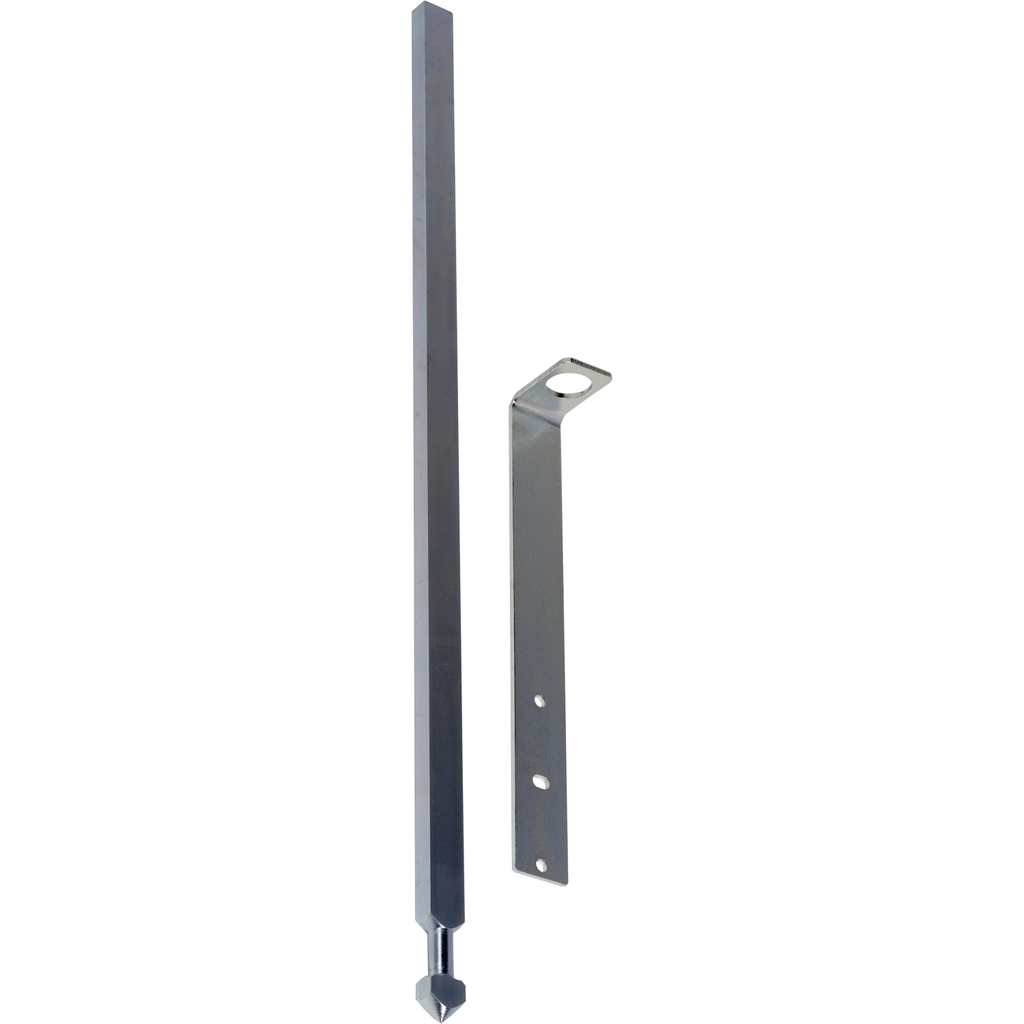

Square D 9421LS10 NEMA Long Shaft Operating Mechanism

Manufacturer: Square-D / Schneider | Catalog # 9421LS10 | Cooper Electric Part # 116513
$41.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. These Type L door mounted operating mechanisms feature heavy duty, all metal construction. Door mounted operating mechanisms are available for PowerPacT M and P circuit breakers. This is a long shaft replacement part. The mounting shaft depth is 7.2in to 22.25in. This product complies with UL standards.

Technical Information

Applications
9421LL1, LM1, LX7 OR LW7 OPERATING MECHANISMS
Size
LONG
TC Connection
DIRECT
Type
Shaft
Voltage
600 VAC

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901045755
GTiN
00785901045755
Product UPC
78590104575
Used With
9421LL1, LM1, LX7 or LW7 operating mechanism

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9421LW1
  • 9421LW7
  • 9421LHP8
  • 9421LCP48
  • 9421LHP48
