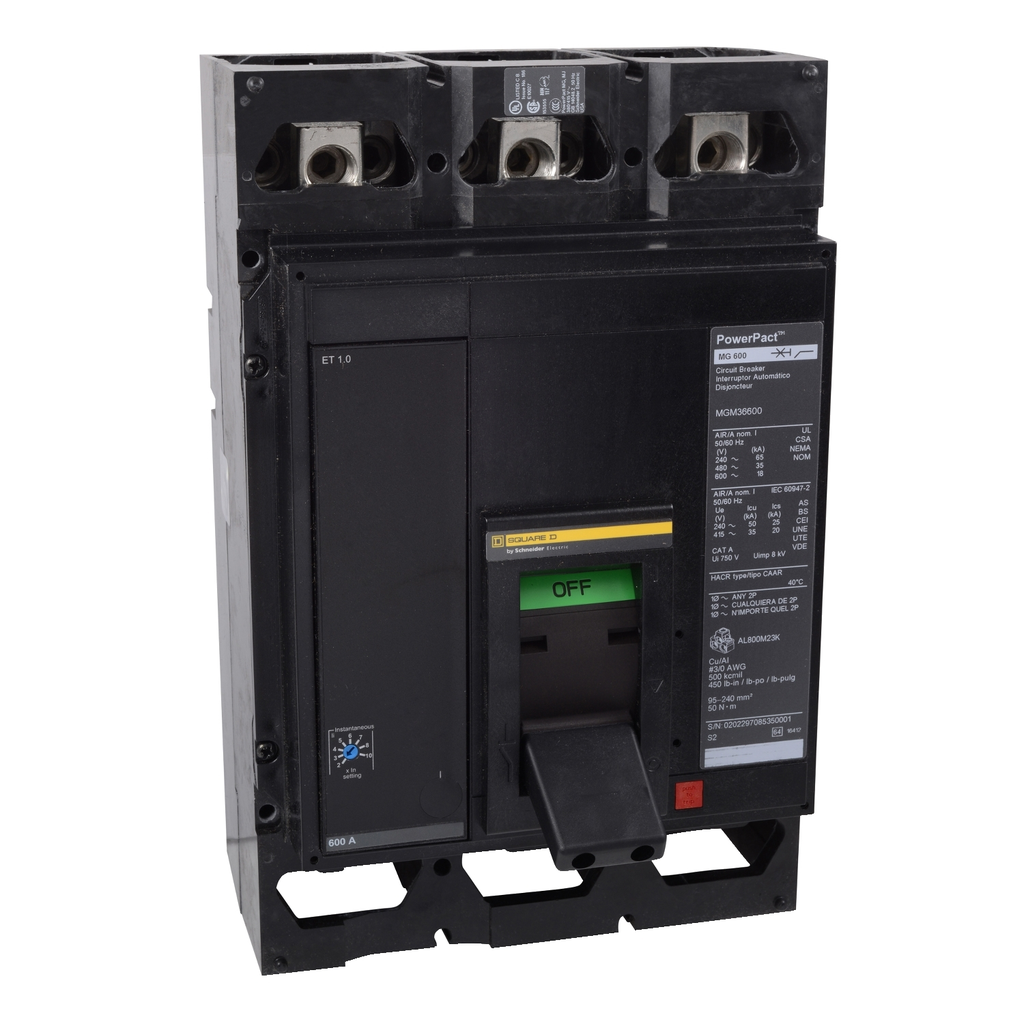

Product image for SQD MGM36600 Circuit breaker, Power
Image thumbnail 0
Image thumbnail 1
Email

SQD MGM36600 Circuit breaker, Power

Manufacturer: Square-D / Schneider | Catalog # MGM36600 | Cooper Electric Part # 1160919
$9,571.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on the line side and terminal nuts on the load side. This PowerPacT M, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Technical Information

Amperage
600 Amp
Circuit Breaker Type
M-Frame
Current
600 Amp
Frame
M- FRAME
Interrupt Rating
18 kAIC
Line Rated Current
600-600 A
Mounting Type
Unit Mount Lug)
Net Weight
29 lb
Number of Poles
3 Pole
Standard
CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
Storage Temperature
-50-85 degrees C
Strip Length
25 mm
TC Connection
LINE LUG
Trip Point
1200-6000 A
Trip Range
600 A
Trip Type
THERMAL-MAGNETIC
Type
Circuit breaker
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
POWERPACT

General Product Info

12-Digit UPC
785901516217
Color
Black
GTiN
00785901516217
Product UPC
78590151621
Weight
29 lb

Dimensions

Depth
8.05 Inch
Height
12.86 Inch
Length
25 mm
Warranty Length
18 mth
Width
8.27 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
USA
