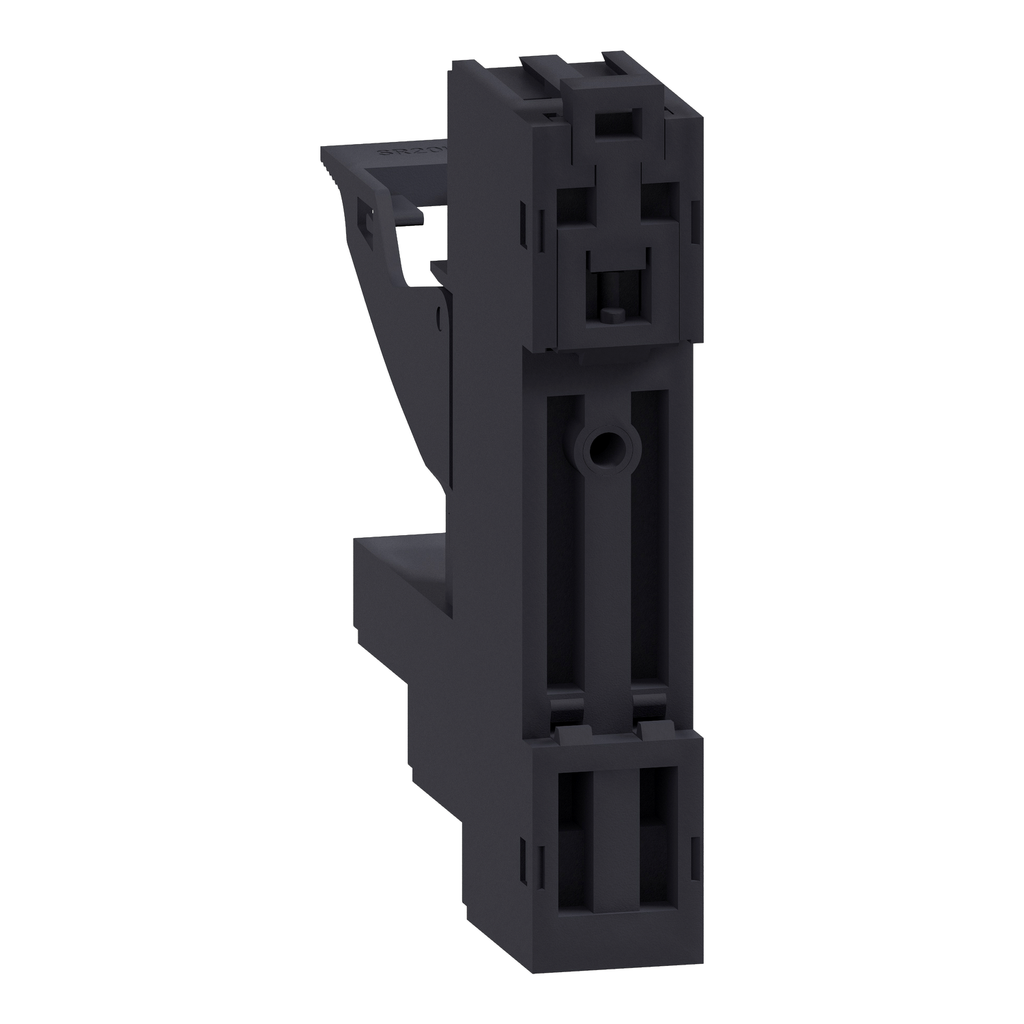

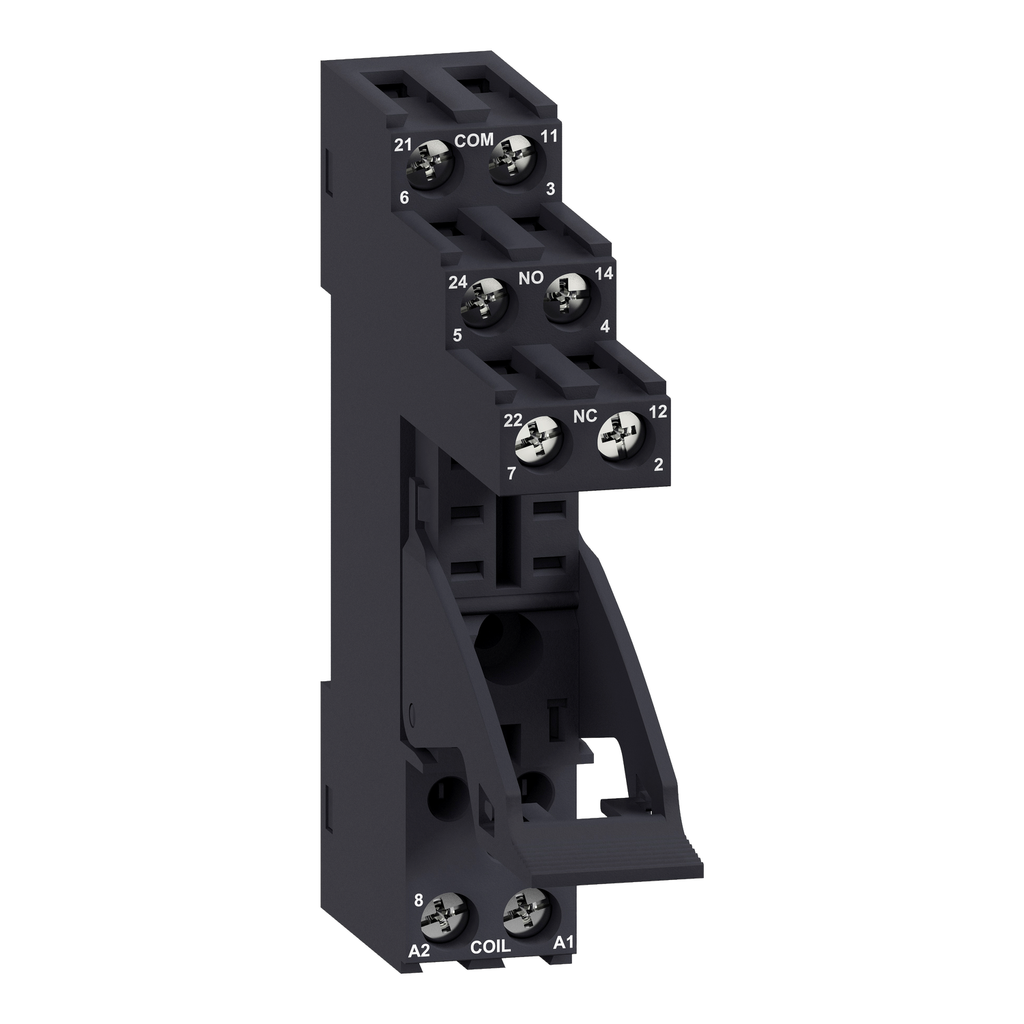

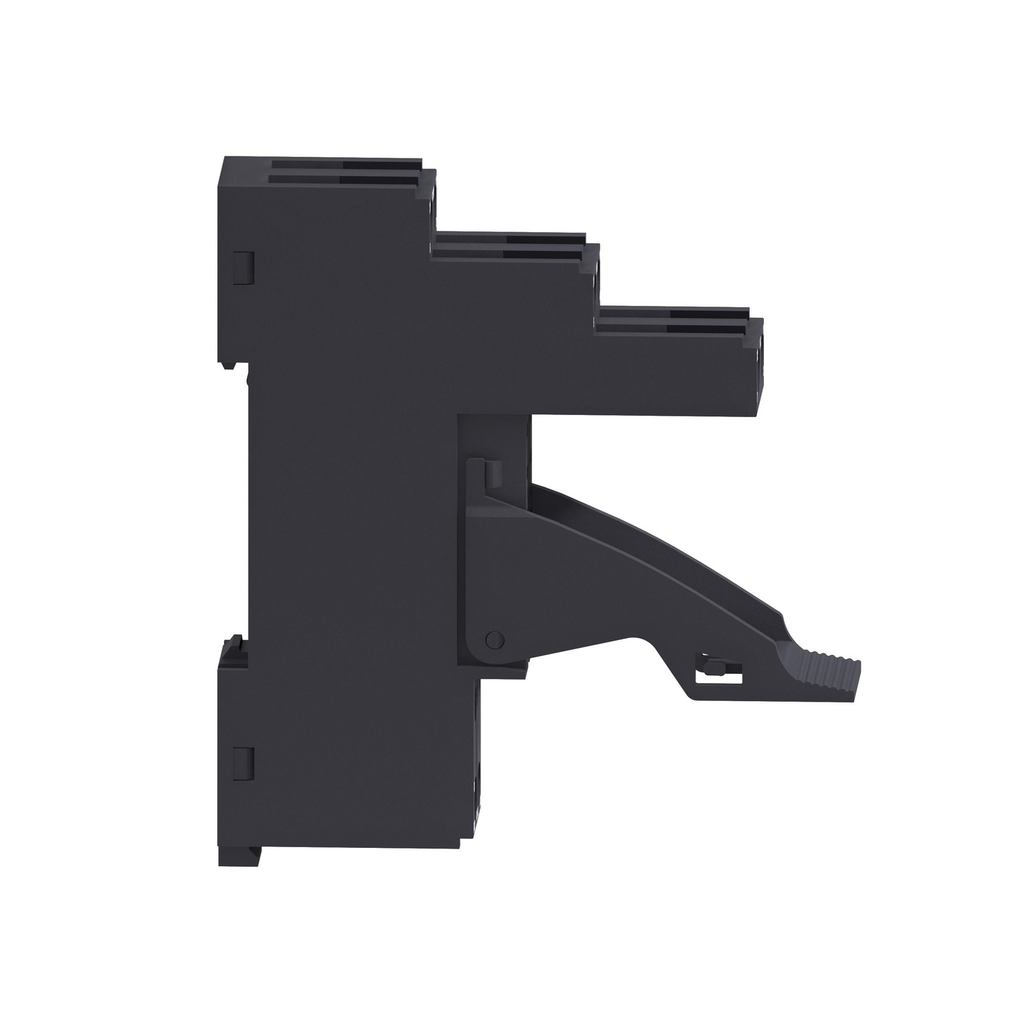

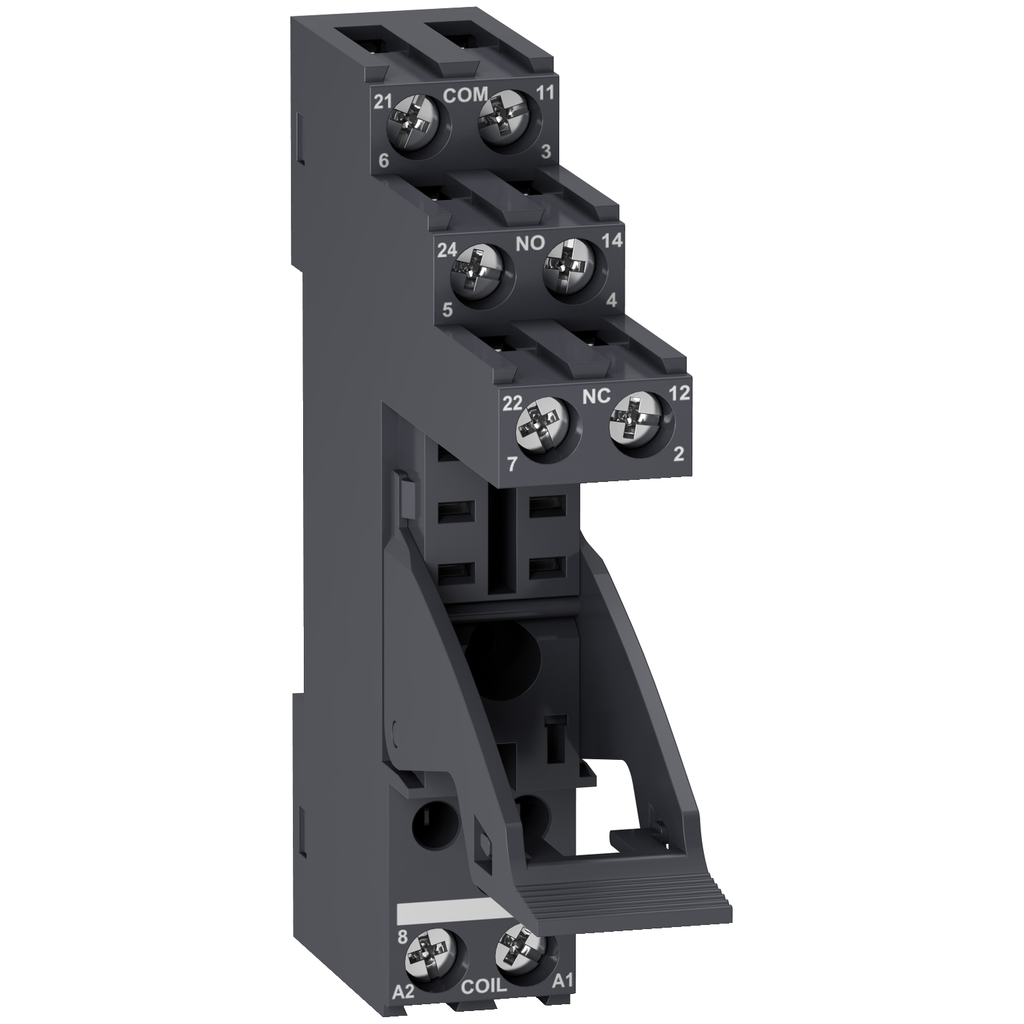

SQD RGZE1S48M socket with clamp, Ha

Manufacturer: Square-D / Schneider | Catalog # RGZE1S48M | Cooper Electric Part # 1159236
$5.46/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
25 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 2 C/O DPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime." 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
5 Amp
Applications
PLUG-IN RELAY RXG 2 C/O
Dielectric Strength
3 kV
Line Rated Current
5 A
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 61984,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.25...1 X 2.5 MMA AWG 22...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.25...2 X 1 MMA AWG 22...AWG 17) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 1.5 MMA AWG 20...AWG 16) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.5...1 X 2.5 MMA AWG 20...AWG 14) SOLID WITHOUT CABLE END
Type
Socket
Voltage
250 Volt

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480689447
GTiN
03606480689444
Product UPC
78590143212

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,DNV-GL,EAC,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RSZL300
Cross Sell Products
  • RXG22BD
  • RXG22P7
  • RXG23BD
