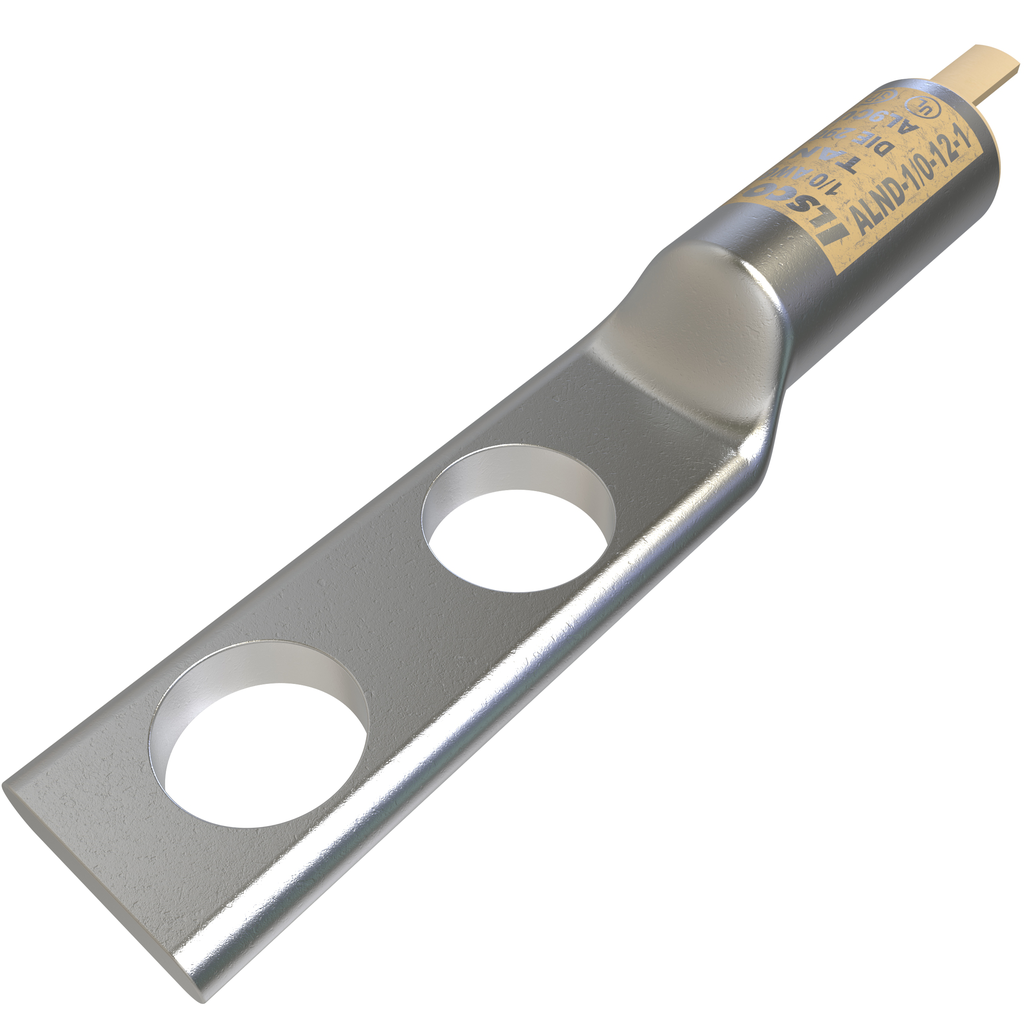

ILSCO ALND-1/0-12-1 AL COMP 1/0 AWG

Manufacturer: Ilsco | Catalog # ALND-1/0-12-1 | Cooper Electric Part # 1158908
$14.48/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 1/0 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Tan, primary color Silver, die index 296,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
1.2 in
Barrel Type
Long
Color Coding
Tan
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
2 Hole
Size
L:3.7;W:0.819;H:0.634 IN
Strip Length
28.765 mm
Temperature Rating
90 degrees C
Type
ALND:2 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669691566
Color
Silver
GTiN
00783669691566
Product UPC
78366969156
Weight
0.048 lb

Dimensions

Height
0.634 Inch
Inside Diameter
0.385 in
Length
3.7 Inch
Outside Diameter
0.599 in
Width
0.819 in
