ABB AB14-6A NONINS FLAG TERM, 22-14

Manufacturer: ABB | Thomas & Betts | Catalog # AB14-6A | Cooper Electric Part # 1158905
$180.98/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

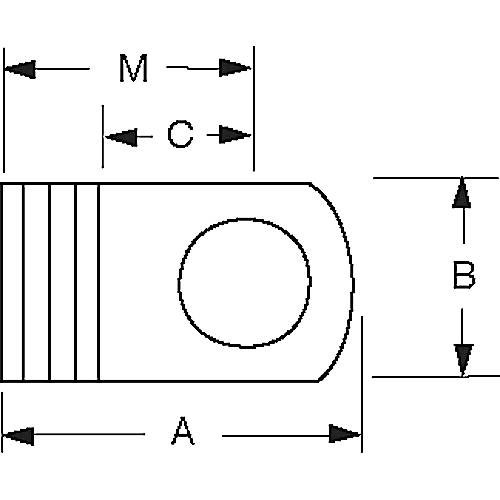

Non-Insulated Flag Terminal, Length .55 Inches, Width .31 Inches, Bolt Hole #6, Wire Range #22-#14 AWG, Copper, Tin Plated

Technical Information

Conductor Size
22-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
150 degrees C
Terminal Type
AB
Type
90, Non-Insulated
Wire Size
22-14 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803104
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363147312
Product UPC
78621080310
Used With
ERG4004 Compression Tool

Dimensions

Height
7-1/4 Inch
Thickness
.03 in
Width
9 in
Certifications
  • CSA
  • UL
Features
  • Flag terminals allow a 90 degree connection to the terminal block without bending the wire.
Notes
  • Not available on Mylar Tape.
