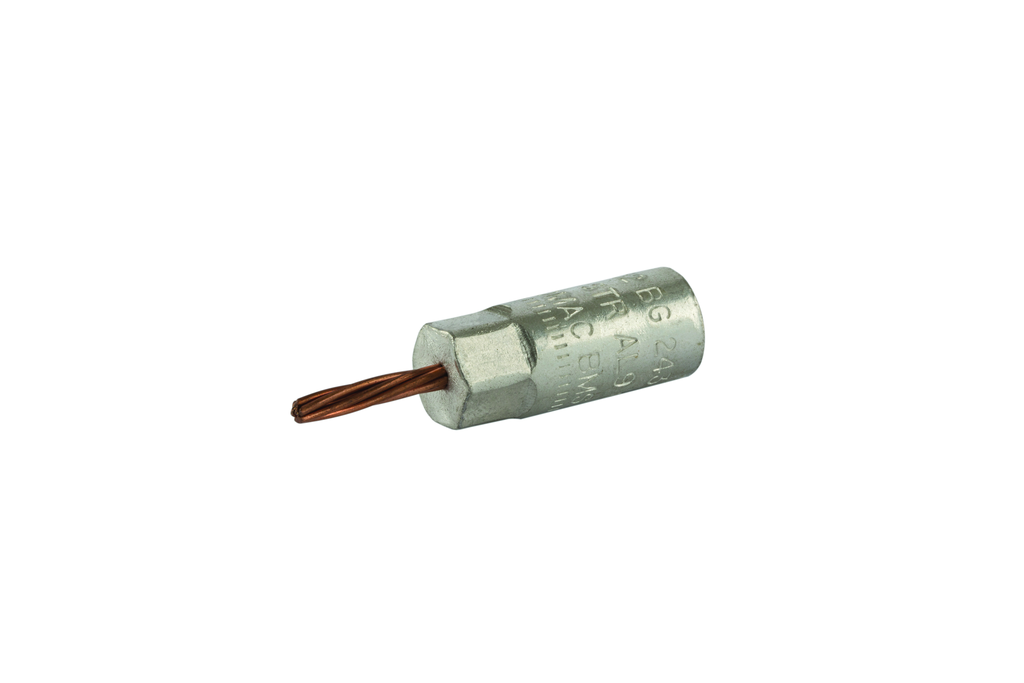

Product image for NSI PT6 Aluminum Pin Terminal Cu Pi
Email

NSI PT6 Aluminum Pin Terminal Cu Pi

Manufacturer: NSi | Catalog # PT6 | Cooper Electric Part # 1158331
$2,477.97/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Stranded Bi-Metallic Pin Terminal 6 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
6 AWG
Connection Type
# 8 Pin
Insulation Material
Plastisol Cover
Material
Aluminum
Max Temperature
194 degrees F
Number of Conductors
1
Number of Poles
1 Pole
Size
L=1.25 - OD=.640 - ID=.236 - Pin Dia=.188
Standard
UL486
TC Connection
# 8 Pin
Temperature Rating
90 degrees C
Type
Bi-Metallic Pin
Voltage
600 Volt
Wire Size
6 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Pin Terminals

General Product Info

12-Digit UPC
662381033000
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381033000
Product UPC
66238103300

Dimensions

Height
0.639 Inch
Length
2-1/8 Inch
Warranty Length
1 yr
Width
0.639 in

Certifications and Compliance

Country of Origin
USA
Features
  • Designed to facilitate termination of aluminum conductors
  • Pin - Stranded copper, tin plated
  • Supplied with EPDM insulating cover
  • Connector bores are coated with oxide inhibitor
  • Wire connector rated for 35kV max
Certifications and Standards
  • UL Listed
  • UL 486A-486B
