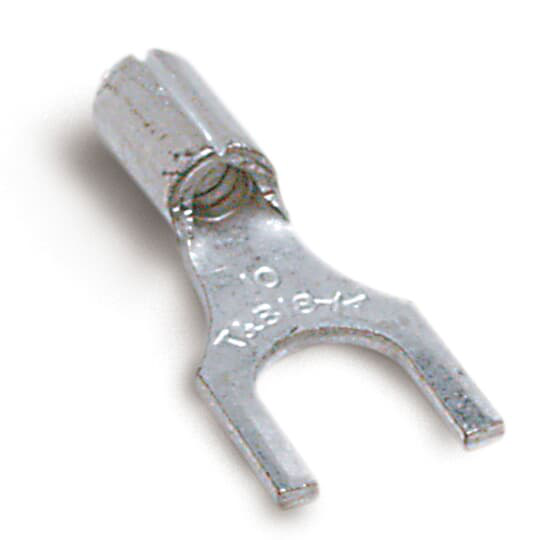

Product image for Thomas & Betts B14-10F 18 to 14 AWG #10 Stud Metallic Electrotinned Copper Non-Insulated Fork Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts B14-10F 18 to 14 AWG #10 Stud Metallic Electrotinned Copper Non-Insulated Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # B14-10F | Cooper Electric Part # 11559
$128.08/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Non-Insulated Fork Terminal, Length .75 Inches, Width .31 Inches, Bolt Hole #10, Wire Range #18-#14 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Serrated
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
150 degrees C
Terminal Type
B
Type
Long Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803258
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363148371
Product UPC
78621080325

Dimensions

Thickness
.03 in
Features
  • These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Certifications
  • UL
  • CSA
