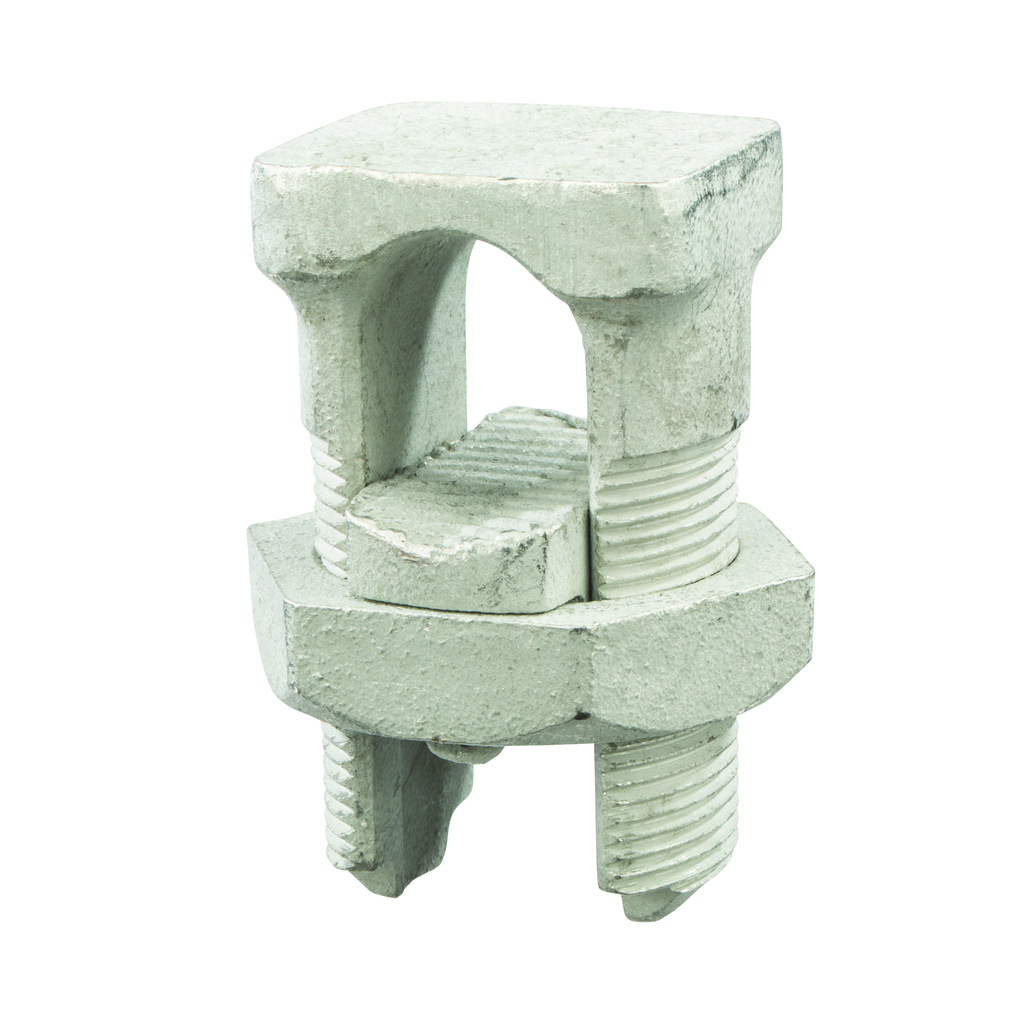

Product image for NSI N-750SP 750 MCM Tinned Copper 2-Conductor General Purpose Split Bolt Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

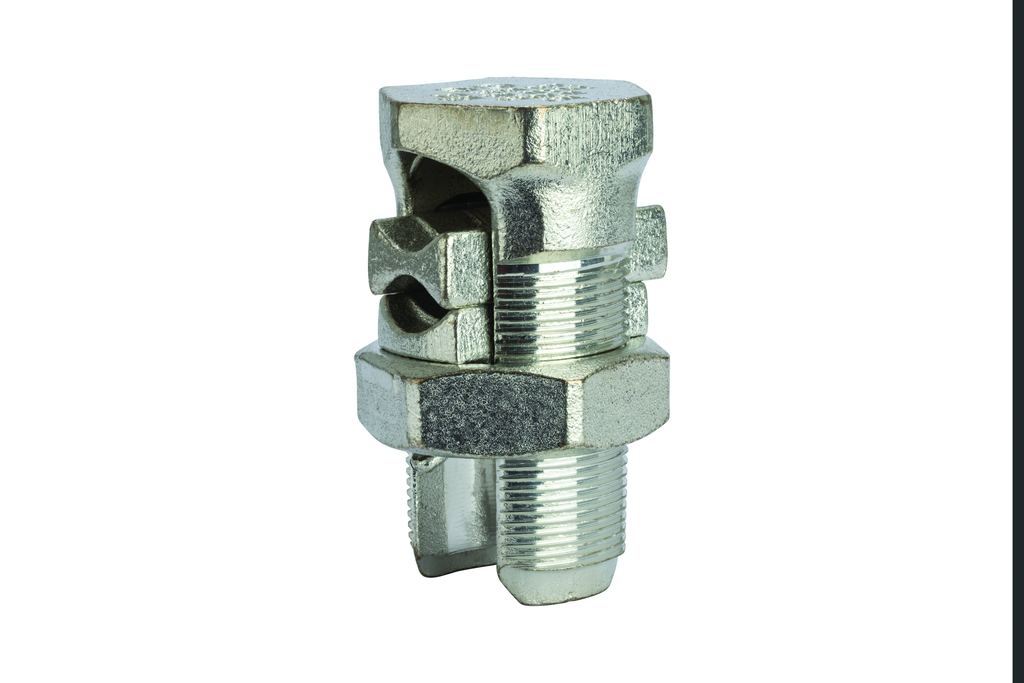

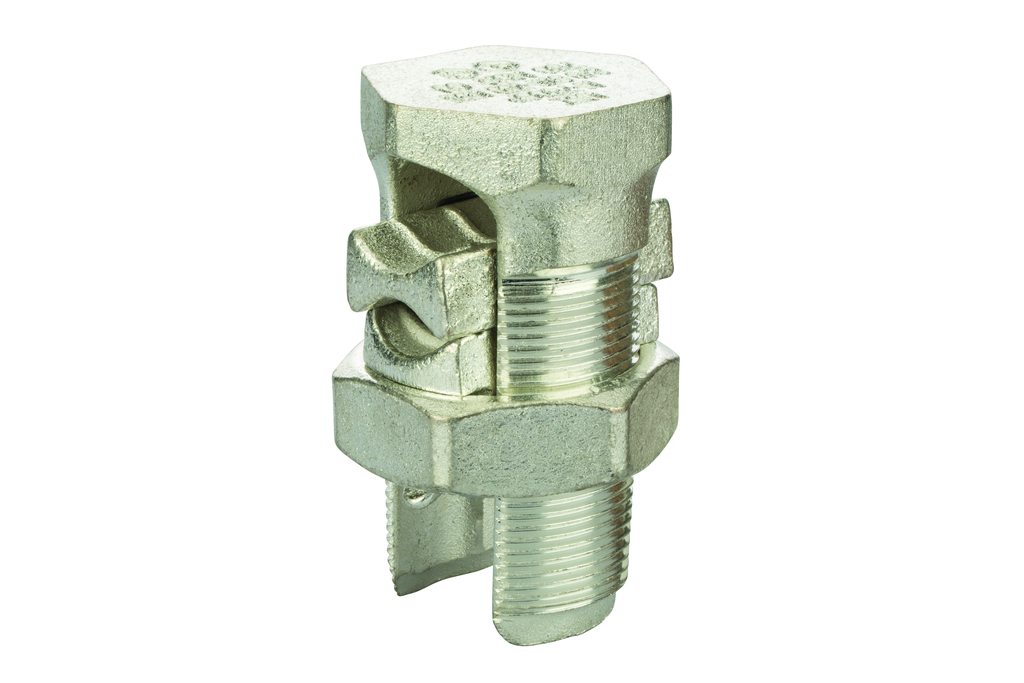

NSI N-750SP 750 MCM Tinned Copper 2-Conductor General Purpose Split Bolt Connector

Manufacturer: NSi | Catalog # N-750SP | Cooper Electric Part # 11546
$11,735.40/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
All Purpose Split Bolt Connector 750 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

Technical Information

Applications
Wire Termination
Conductor Size
750 kcmil
Material
Copper
Number of Conductors
2
Number of Poles
1 Pole
Size
L=3.750 - W=2.130 IN
Standard
UL486B
Temperature Rating
90 degrees C
Type
Tin Plated Copper Split Bolt
Voltage
600 Volt
Wire Size
750 kcmil
Wire Type
A,B

Manufacturer Information

Brand
NSI Industries
Sub Brand
Split Bolts

General Product Info

12-Digit UPC
662381020420
Color
Tin Plated Copper
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381020420
Product UPC
66238102042

Dimensions

Warranty Length
1 yr

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Can be used Aluminum to copper (Dual Rated), Aluminum to aluminum, Steel to aluminum, Copper to copper, Steel to copper
  • Electro-tinned body
  • UL listed for copper and copperweld wires only
  • Includes nut, spacer and pressure pad
Certifications and Standards
  • UL Listed
  • UL 486A-486B, UL 486D
