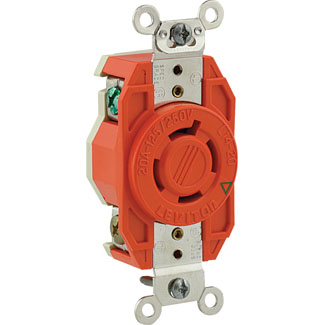

LEV 2410-IG OR REC LOCK 3PO 4WI L14

Manufacturer: Leviton Mfg Co | Catalog # 2410-IG | Cooper Electric Part # 1153244
$87.96/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 125/250 Volt, NEMA L14-20R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE

Technical Information

Amperage
20 Amp
Applications
For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse
Base Material
Valox,Valox
Conductor Size
14-8 AWG
Connection Type
Back Wired,Side Wired
Contact Material
Brass
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Valox
Flamability Class
Rated V-0 Per UL 94
Grounding
Isolated Ground
Horsepower
1 hp
Material
PBT
Mounting Type
Box
NEMA
WD-6
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
46 H x 1.69 W x 1.31 D IN
Standard
UL
TC Connection
Back & Side Wired
Temperature Rating
-40 - 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
125/250 Volt
Wire Count
4
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477809334
Color
Black,Orange,White
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
GTiN
00078477809334
Product UPC
07847780933

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • L14-20R
