INT-MAT PE25065RC MultiWave® ECS Sy

Manufacturer: Intermatic, Inc | Catalog # PE25065RC | Cooper Electric Part # 1152756
$1,275.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

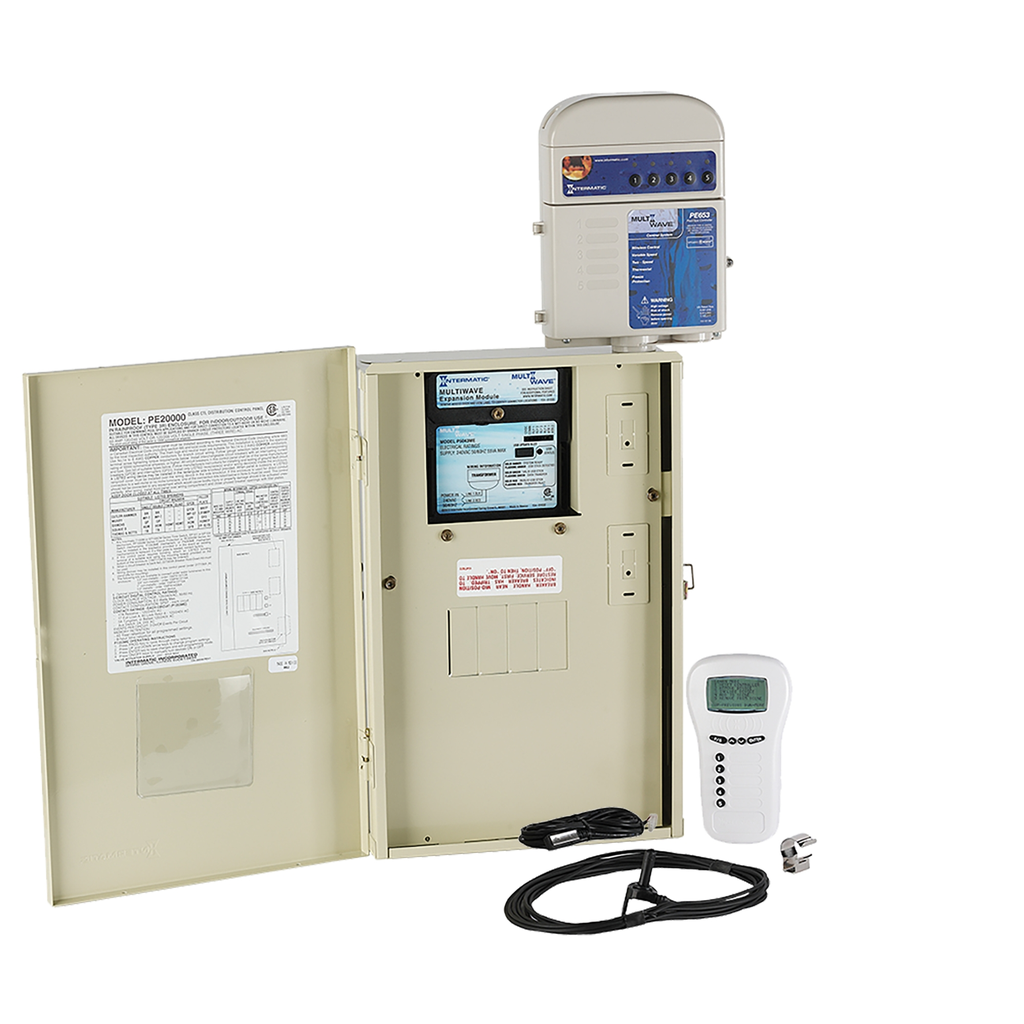

This system includes the MultiWave Basic and an Expansion Module to control up to four valve actuators, two heaters, most name brand variable speed pumps and solar heating/cooling. The Remote Switch feature provides simple ON/OFF control of several components (i.e., spa heater, spa blower, spa lights) simultaneously with the flip of a single switch.

Technical Information

Action
Single-Phase
Amperage
60 Amp
Applications
Heater Thermostat Control,Motor Control,Pump Control
Input Voltage
120/208 V
Material
Metal
Max Operating Temperature
0 degrees F
Min Operating Temperature
0 degrees F
Number of Circuits
5
Size
16.875x10.875x4.75 IN
Type
Bundle
Voltage
120-240 VAC

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275145511
Color
Beige
GTiN
00078275145511
Product UPC
07827514551

Dimensions

Depth
4-3/4 Inch
Height
16-7/8 Inch
Warranty Length
2 yr
Width
10.875 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
China
Features
  • Four breaker spaces
  • Controls 5 circuits
  • Controls 4 actuator ports (actuators not included), 2 for pool to spa valve rotation, 1 for water feature valve rotation, and 1 for solar applications
  • Controls 2 heater circuits
  • USB port for ease of upgrading firmware
  • Load center dead front has two knockouts for switches and GFCIs
  • Remote switch for simple ON/OFF control of several components at the same time
  • NA
