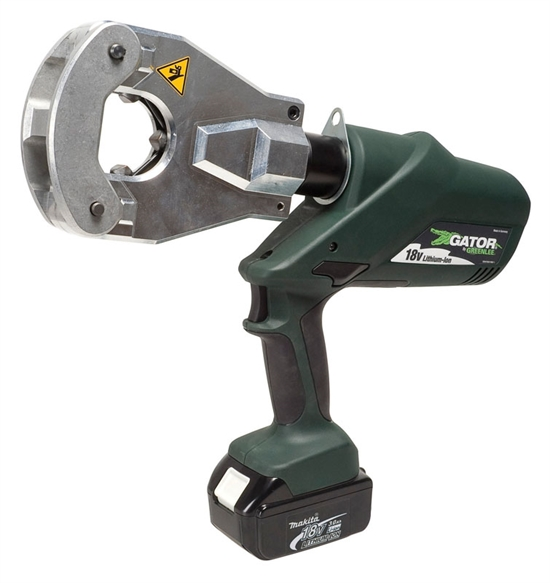

Greenlee EK06FTL12 6.2 Ton 4 AWG to 750 MCM Copper Rotatable Flip-Top Head Lithium-Ion Battery Powered Crimping Tool

Manufacturer: Greenlee | Catalog # EK06FTL12 | Cooper Electric Part # 1152122
$5,210.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Quad-Point Battery-Powered Crimping Tool, Flip-Top Head Dieless, w/12 V Charger

Technical Information

Battery Type
18V Lithium-Ion
Crimping Force
12400 lb
Standard
C/US UL Listed
Type
Battery Powered,Flip Top Head,Quad Point Dieless

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310520641
GTiN
00783310520641
Product UPC
78331052064
Weight
11.000 lb

Dimensions

Overall Length
14-7/8 in
Description
  • Utilizes four indentors to make the crimp
  • One trigger controls all tool functions
  • Forward handle position improves tool balance
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • Flip-top style uses a pull pin to open head for easy removal from the connector
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • U.S. Patents #6,206,663 and #6,065,326
  • LED light provides the operator with the battery charge and tool maintenance status
  • Tools automatically retract when the crimping cycle is complete
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • Over molded tacky grip areas make gripping the tool easier and more comfortable
  • Crimping head rotates 350°
  • LED work light illuminates dark work areas
