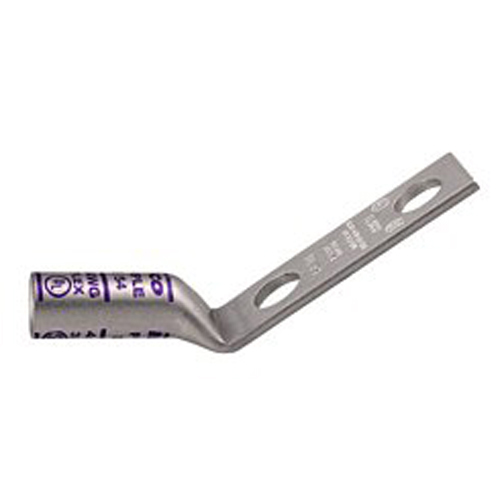

Product image for Ilsco CLNB-4/0-12-4 SureCrimp® Copper Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, 45? Bent Tang, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco CLNB-4/0-12-4 SureCrimp® Copper Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, 45? Bent Tang, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CLNB-4/0-12-4 | Cooper Electric Part # 1145144
$50.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 45. connecting angle, Copper Primary Conductor 4/0 Str, Contains DE-OX®, no sight window, Square tang end, flex conductor range 3/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Purple, primary color Silver, die index I-54,

Technical Information

Applications
Copper Compression Lug
Barrel Length
1.5 in
Barrel Type
Long
Bolt Size
1/2 IN
Color Coding
Purple
Conductor Material
Copper
Conductor Type
Flex,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.562 in
Number of Holes
1 Hole
Size
L:2.789;W:0.999;H:1.998 IN
Strip Length
39.687 mm
Temperature Rating
90 degrees C
Type
CLN4:LONG BENT TANG 45
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669672046
Color
Silver
GTiN
00783669672046
Product UPC
78366967204
Weight
0.135 lb

Dimensions

Height
1.998 Inch
Inside Diameter
0.546 in
Length
2.789 Inch
Outside Diameter
0.687 in
Width
0.999 in
