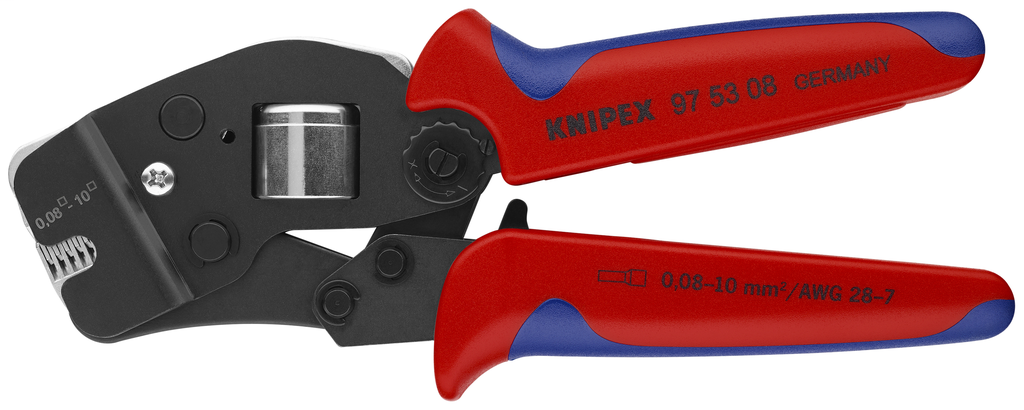

KNIPEX 97-53-08 7-1/2 LVR ACT CRMP PLR

Manufacturer: Knipex Tool | Catalog # 97 53 08 | Cooper Electric Part # 1143745
$334.57/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Self-adjusting crimping pliers for end sleeves (ferrules) with front loading. For crimping end sleeves. Capacity - 0.08 to 10 mm2 and 28 to 7 AWG.

Technical Information

Conductor Size
28-8 AWG
Handle Type
Multi-Component
Number of Positions
1
Surface Finish
Black-Oxide Finish
Type
Self-Adjusting
Wire Size
7-28 AWG

Manufacturer Information

Brand
Knipex

General Product Info

12-Digit UPC
843221002268
Finish
Black Oxide
GTiN
00843221002268
Product UPC
84322100226
Weight
477 g

Dimensions

Height
20 mm
Length
190 mm
Width
75 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including Diisononyl Phthalate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Features
  • Self-adjusting crimping pliers for end sleeves (ferrules) with front loading
  • For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
  • Crimping from 28 - 8 AWG (0.08 - 10.0 mm²) in one profile; wire ferrules (end sleeves) up to 14 AWG (2.5 mm²) can also be loaded parallel from the side; particularly suitable for all twin ferrules (end sleeves) up to 2 x 4 mm² or 2 x AWG 10
  • Self-adjusting adaptation to the desired wire end sleeve ferrule size - no crimping faults caused by using the wrong die
  • Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
  • Crimping pressure has been set precisely (calibrated) in the factory
  • Optimum transmission of force due to toggle lever for fatigue-reduced operation
  • High operation comfort thanks to handy shape and low weight
  • Chrome vanadium electric steel in special quality, oil-hardened
