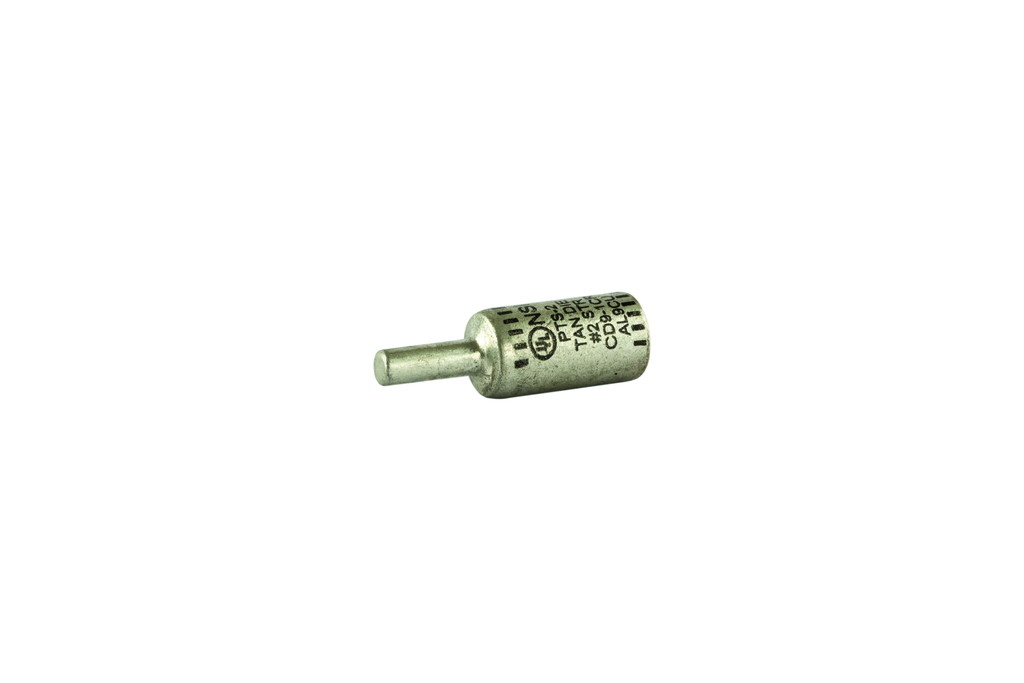

Product image for NSI PTS2 2 AWG Tan Tinned Aluminum 1-Conductor Solid Pin Terminal
Email

NSI PTS2 2 AWG Tan Tinned Aluminum 1-Conductor Solid Pin Terminal

Manufacturer: NSi | Catalog # PTS2 | Cooper Electric Part # 11433
$2,302.59/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Solid Pin Terminal for Copper and Aluminum Conductors 2 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
2 AWG
Connection Type
# 4 Pin
Insulation Material
Plastisol Cover
Material
Aluminum
Max Temperature
194 degrees F
Number of Conductors
1
Number of Poles
1 Pole
Size
L=1.85 - OD=.598 - ID=.299 - Pin Dia=.240
Standard
UL486
TC Connection
# 4 Pin
Temperature Rating
90 degrees C
Type
Solid Pin
Voltage
600 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Pin Terminals

General Product Info

12-Digit UPC
662381033420
Color
Tan
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381033420
Product UPC
66238103342

Dimensions

Height
0.6 Inch
Length
1.85 Inch
Warranty Length
1 yr
Width
0.6 in

Certifications and Compliance

Country of Origin
India
Certifications and Standards
  • UL Listed
  • UL 486A-486B
Features
  • All-aluminum pin terminal designed for termination of both aluminum and copper conductors
  • The pin is solid aluminum
  • The connector is tin plated to provide low contact resistance and oxidation protection
  • Connector is pre-filled with Oxide Inhibitor and capped with color coded cap indicating color of die to use
  • A EPDM cover is provided for quick installation
