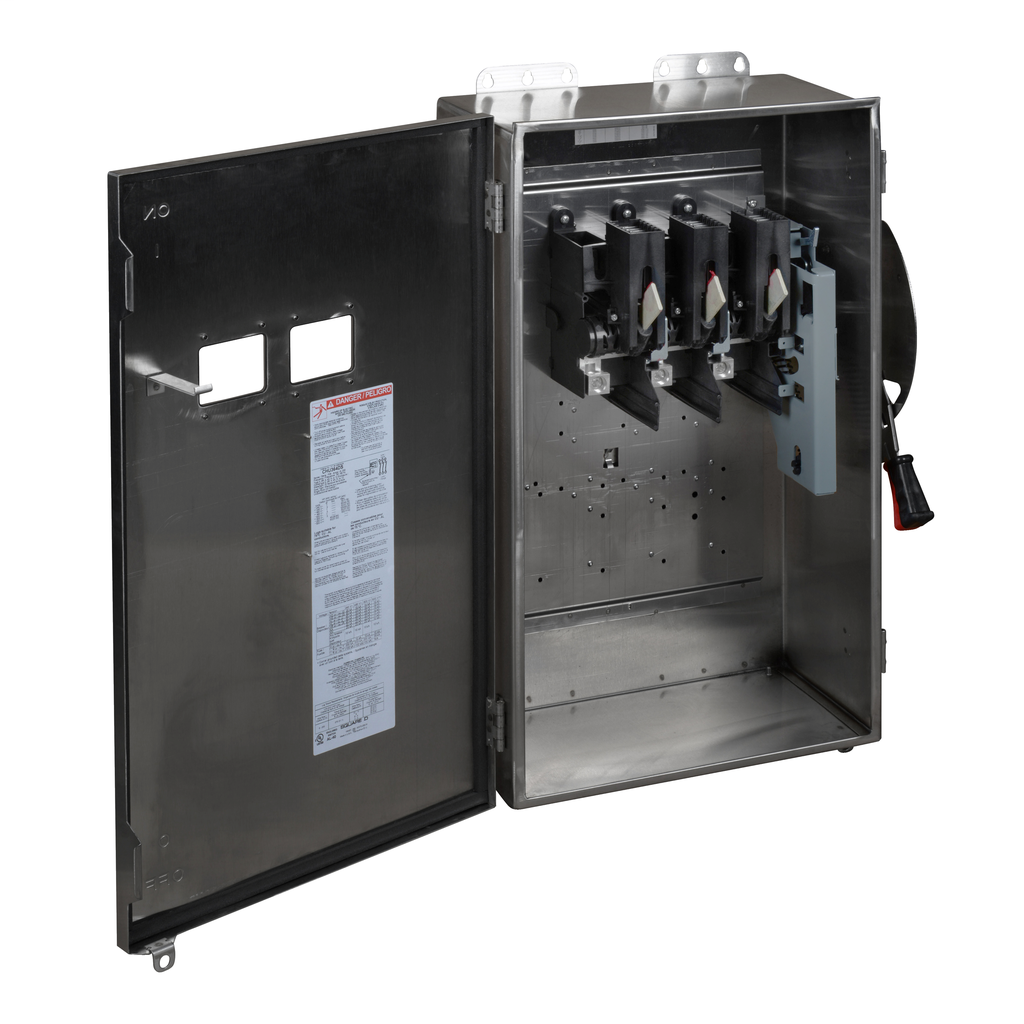

Product image for Square D H364DSVW 600 VAC 200 Amp 3-Pole Class H/J/R Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D H364DSVW 600 VAC 200 Amp 3-Pole Class H/J/R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H364DSVW | Cooper Electric Part # 1142094
$5,914.19/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Play a crucial role in today.s commercial and industrial settings, isolate power in daily activities, provide an effective way to interrupt power in an emergency, provide lockout on sight disconnect.

Technical Information

Action
SINGLE THROW
Amperage
200 Amp
Applications
HEAVY DUTY
Enclosure
NEMA 4/4X/5 STAINLESS STEEL 304
Enclosure Material
Stainless Steel
Material
Stainless Steel
Mounting Type
Surface
Number of Poles
3 Pole
Size
19.25 IN,29 IN,8.88 IN
TC Connection
AWG 6...250 KCMIL COPPER OR ALUMINIUM
Type
SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT
Voltage
600 VAC//VDC

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901208754
GTiN
00785901208754
Product UPC
78590120875

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Certifications
UL,UL
Country of Origin
USA
  • Two tone color handle clearly shows switch's status
  • Field installable rainproof B Hubs
  • Result -- switches operate cooler
  • Field installable watertight H Hub
  • Generous wire bending space
  • Wire terminations suitable for aluminum or copper conductors
  • Tangential knockouts, where provided, lessen the need for conduit offset bends
  • Dual Cover Interlock
  • Meets or exceeds NEMA KS1
  • Red \"ON\
  • Galvanized Steel with E-Coat on all NEMA 3R Enclosure
  • Enclosed operating mechanism design reduces the amount of dust and other contaminants that shorten the mechanisms operating life.
  • The switches includes an oversized arc suppressor, a key feature in the ability of the switch to break the load by effectively attenuating the arc for a clean interruption
  • Black \"OFF\
  • Cooler temperatures -- longer life
  • Factory or field installed Insulated, bonded solid neutral and equipment ground assemblies
  • Mechanical endurance of F series is guaranteed to exceed three times the NEMA requirements
  • More current carrying copper
  • Short circuit or high fault protection
  • Mining and Mineral
  • Industrial Buildings
  • Arcing during switching
  • Commercial Buildings
  • From live parts
  • Water Wastewater
  • During maintenance of loads
  • Point of load
  • Service entrance equipment
  • Educational Campuses
  • Manufacturing
  • Healthcare Facilities
  • Overload or thermal protection
