SQD 9080LBA365202 Power distributio

Manufacturer: Square-D / Schneider | Catalog # 9080LBA365202 | Cooper Electric Part # 114044
$228.28/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
1 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

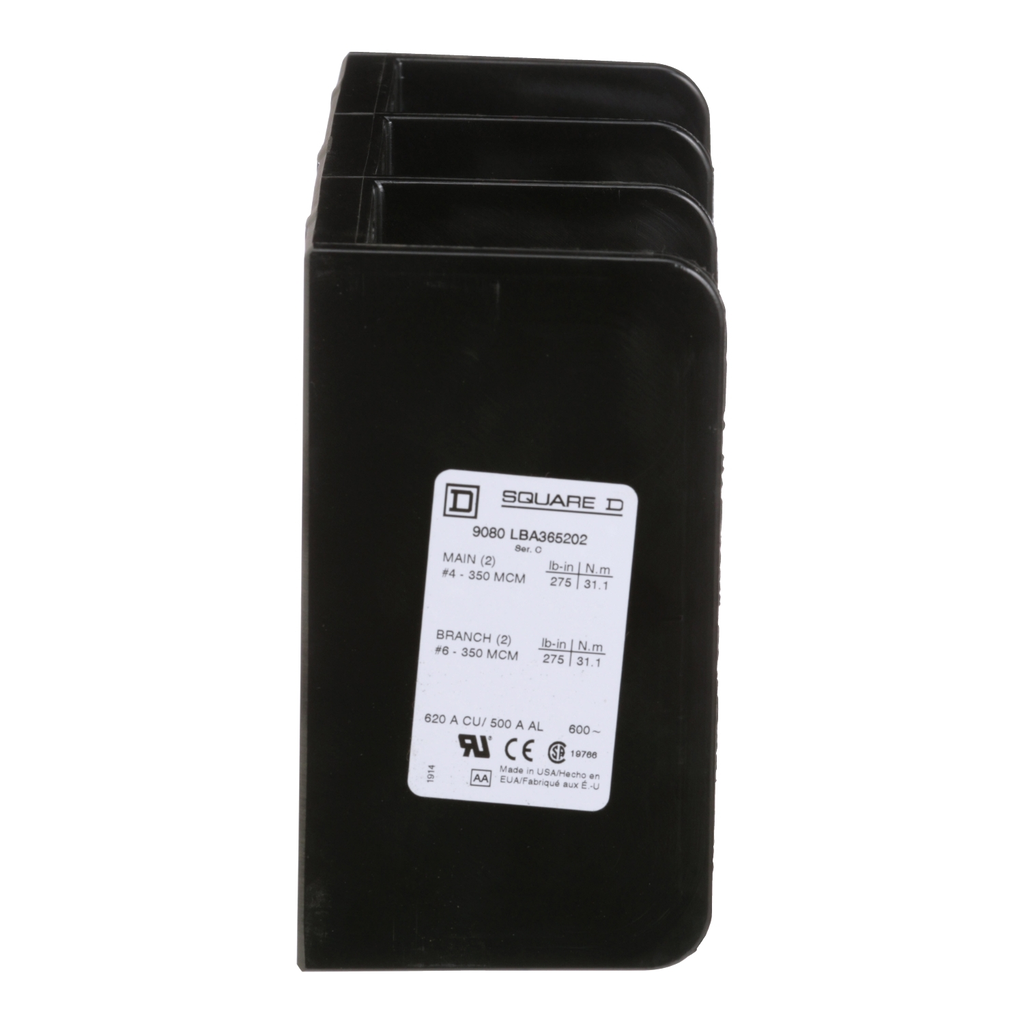

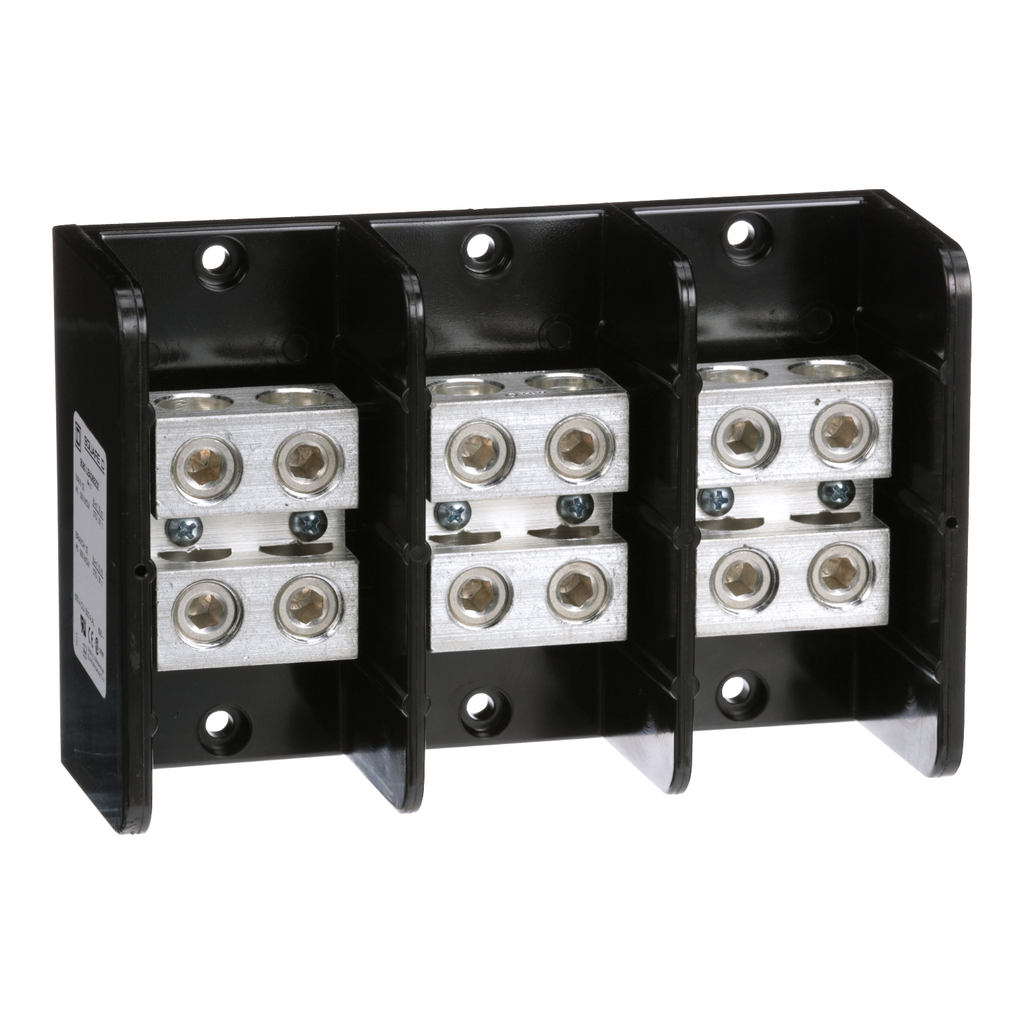

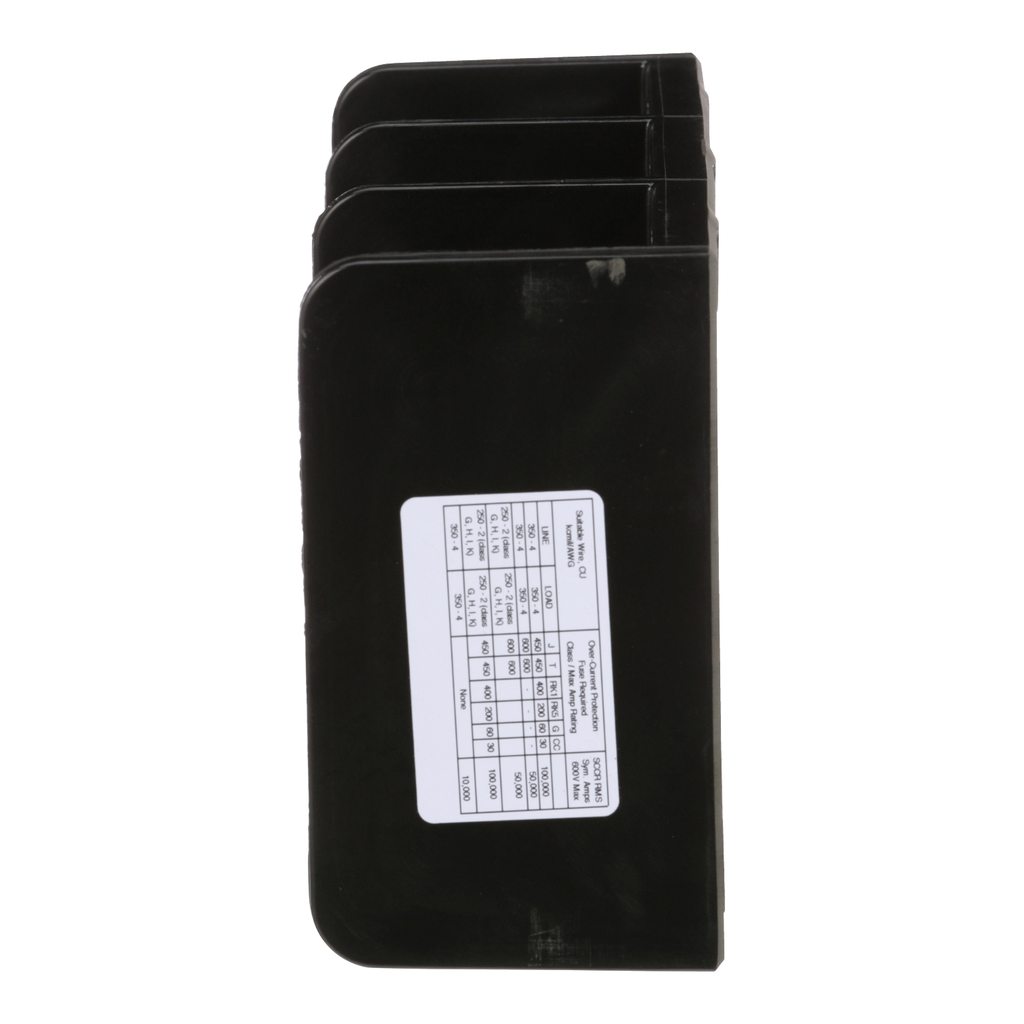

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and two lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 350 kcmil copper or aluminum wire. The load side lugs are rated to accept one #4 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 620 amperes with copper wire and 500 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Amperage
620-620 Amp COPPER-500-500 Amp ALUMINIUM
Applications
9080LB,9080LB53
Conductor Size
6 AWG-350 kcmil
Current
500 Amp
Line Rated Current
500-500 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Net Weight
1.40 kg
Number of Poles
3 Pole
Number of Terminations
2
Operating Temperature
-40-302 degrees F
Size
3.13 in
Strip Length
1.06 in
TC Connection
LINE LUG 275 LBF.IN AWG 4...350 KCMIL COPPER OR ALUMINIUM-LOAD LUG 275 LBF.IN AWG 4...350 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS
Type
9080LB53;Power Distribution Block
Voltage
600 Volt
Wire Size
Line 2, AWG 6...350 kcmil, copper or aluminium;Load 2, AWG 6...350 kcmil, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097532
GTiN
00785901097532
Product UPC
78590109753
Weight
1.40 kg

Dimensions

Depth
3.13 Inch
Height
5-1/2 Inch
Warranty Length
18 mth
Width
8.54 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9080LB53
