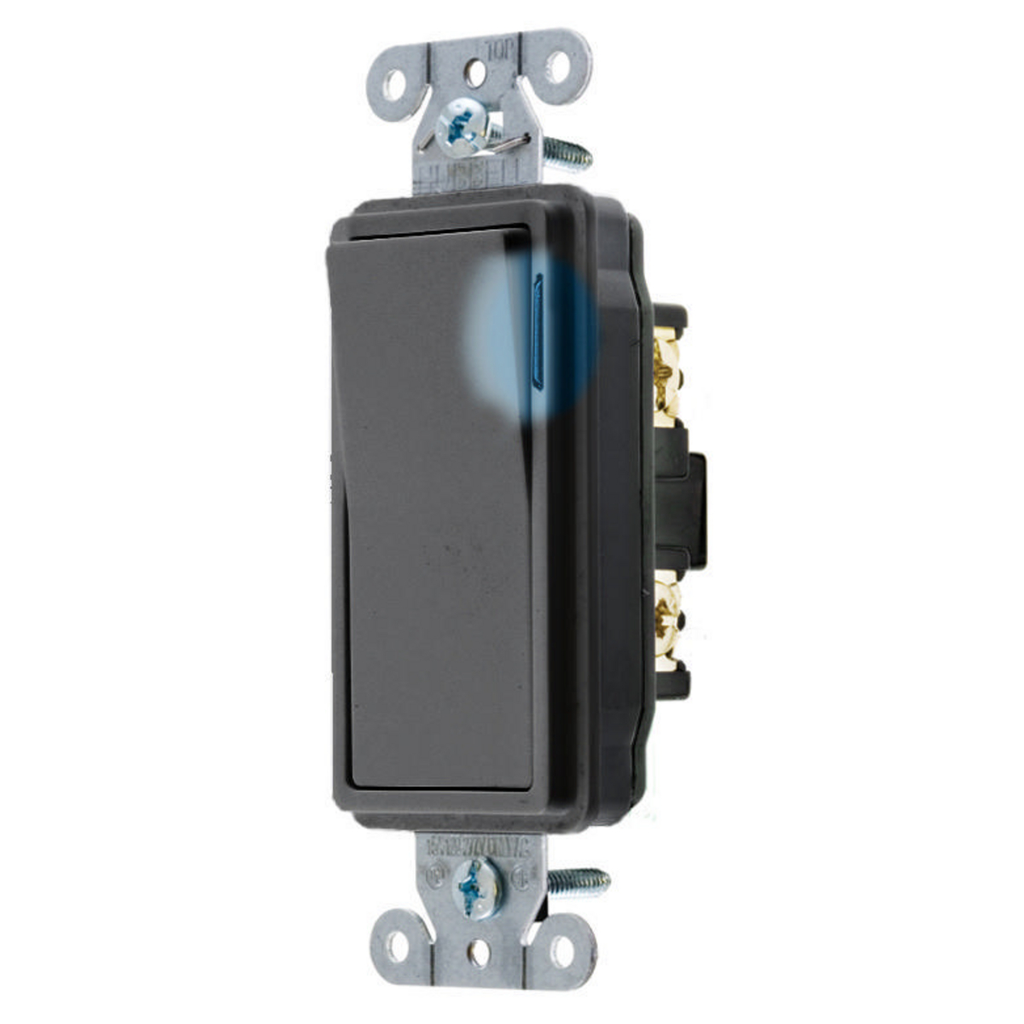

Product image for Hubbell Wiring Devices DS120ILBK 20 Amp 120/277 Volt 1-Pole Decorator Switch
Image thumbnail 0
Image thumbnail 1
Email

Hubbell Wiring Devices DS120ILBK 20 Amp 120/277 Volt 1-Pole Decorator Switch

Manufacturer: Hubbell Wiring Device | Catalog # DS120ILBK | Cooper Electric Part # 1139748
$52.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Spec Grade, Illuminated Decorator Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
20 Amp
Applications
Commercial Heavy Duty
Conductor Size
14-10 AWG
Contact Configuration
2 Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Indicator
True
Material
Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1-1 Pole
Operating Cycles
50,000 Cycles
Operating Temperature
-40 degrees C
Screw Material
Brass

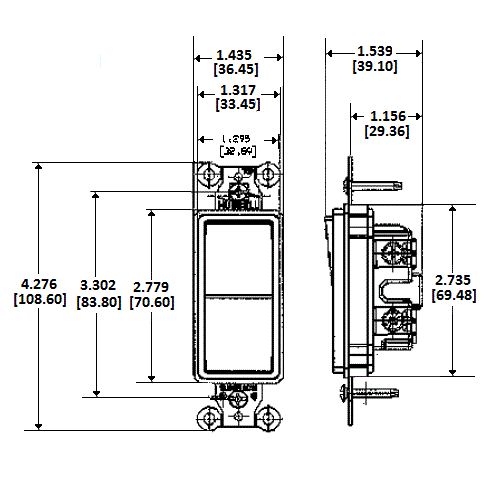

Size
4.28 in x 1.43 in x 1.54 in
Style
Single Pole
TC Connection
Terminal Screw
Type
Decorator,Rocker
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585187884
Color
Black
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585187884
Product Series
Illuminated
Product UPC
78358518788
Weight
0.2 lb

Dimensions

Height
1.54 Inch
Length
4.28 Inch
Width
1.43 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple
