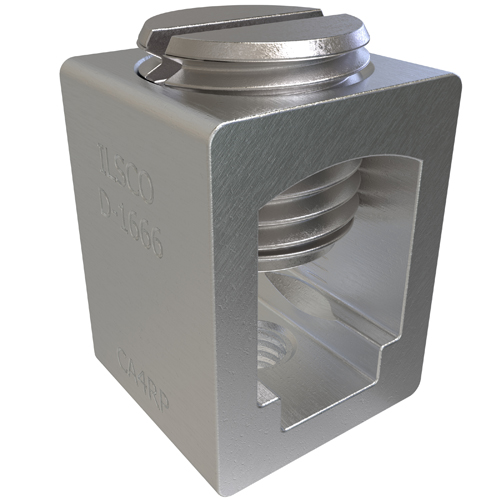

Product image for Ilsco CA4RP Aluminum Box-Type Mechanical Lug, Conductor Range 2-14 CU, 2-12 AL, 1 Hole, Round Boss, Tin Plated

Email

Ilsco CA4RP Aluminum Box-Type Mechanical Lug, Conductor Range 2-14 CU, 2-12 AL, 1 Hole, Round Boss, Tin Plated

Manufacturer: Ilsco | Catalog # CA4RP | Cooper Electric Part # 1139591

$6.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
ILSCO Box-Type Mechanical Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10-32 in, UL 486A/B Recognized, C22.2 No. 65-03, Copper Primary Conductor 2 Str - 14 Str and 10 Sol - 14 Sol, Aluminum Primary Conductor 2 Str - 12 Str and 10 Sol - 12 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Box-Type Mechanical Lug
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.164 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
CSA File Number: LR-29601,UL Specifications: Tested To UL 486A-B,UL File Number: E6207
TC Connection
Mechanical
Temperature Rating
75 degrees C
Type
CA:BOX TYPE AL/CU
Voltage
35 Volt

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669021059
Color
Silver
Finish
Tin Plated
GTiN
00783669021059
Product UPC
78366902105
Weight
0.01 lb

Dimensions

Height
0.685 Inch
Length
0.469 Inch
Width
0.487 in
