SQD SSP3A250B7 three phase relay, H

Manufacturer: Square-D / Schneider | Catalog # SSP3A250B7 | Cooper Electric Part # 1139115
$184.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1

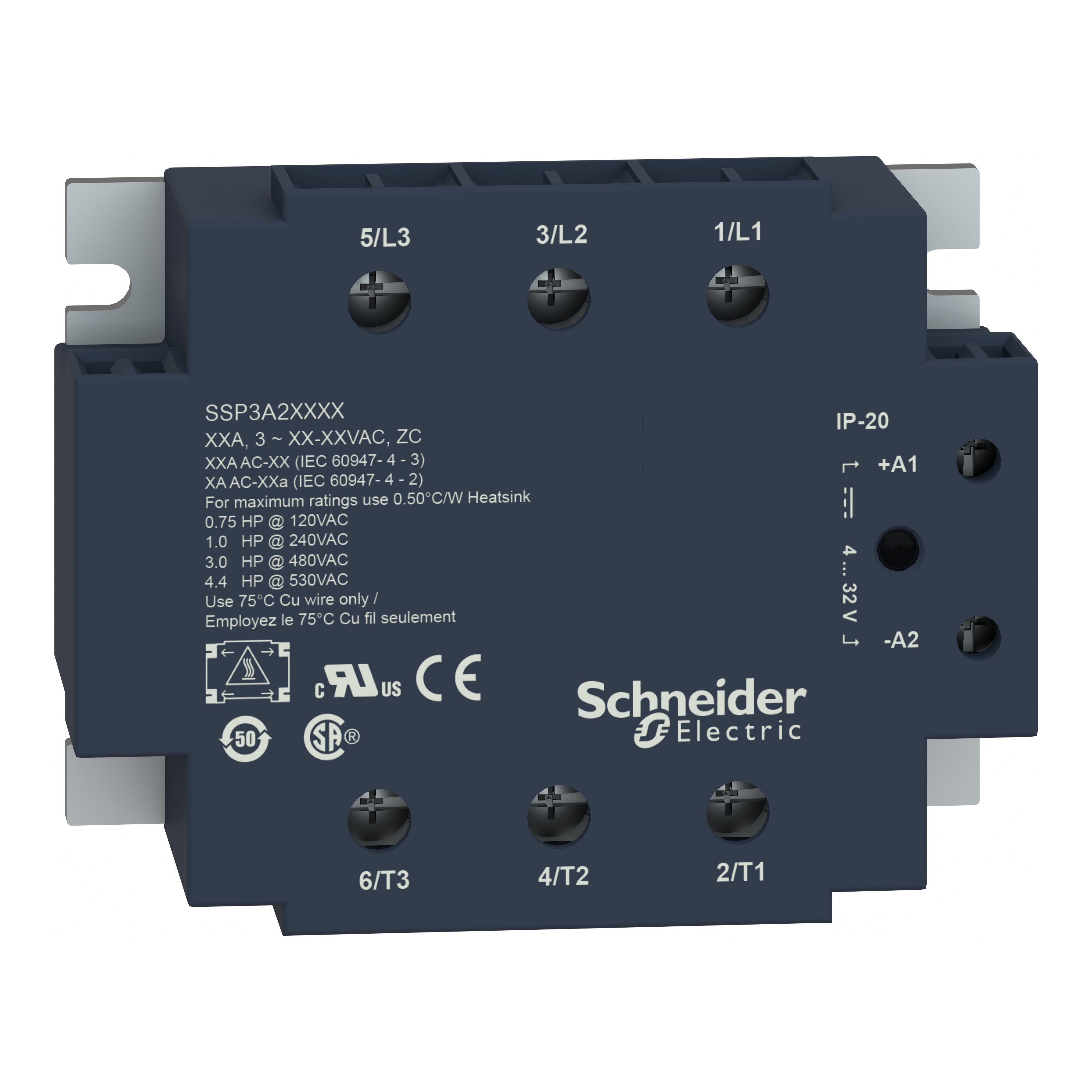

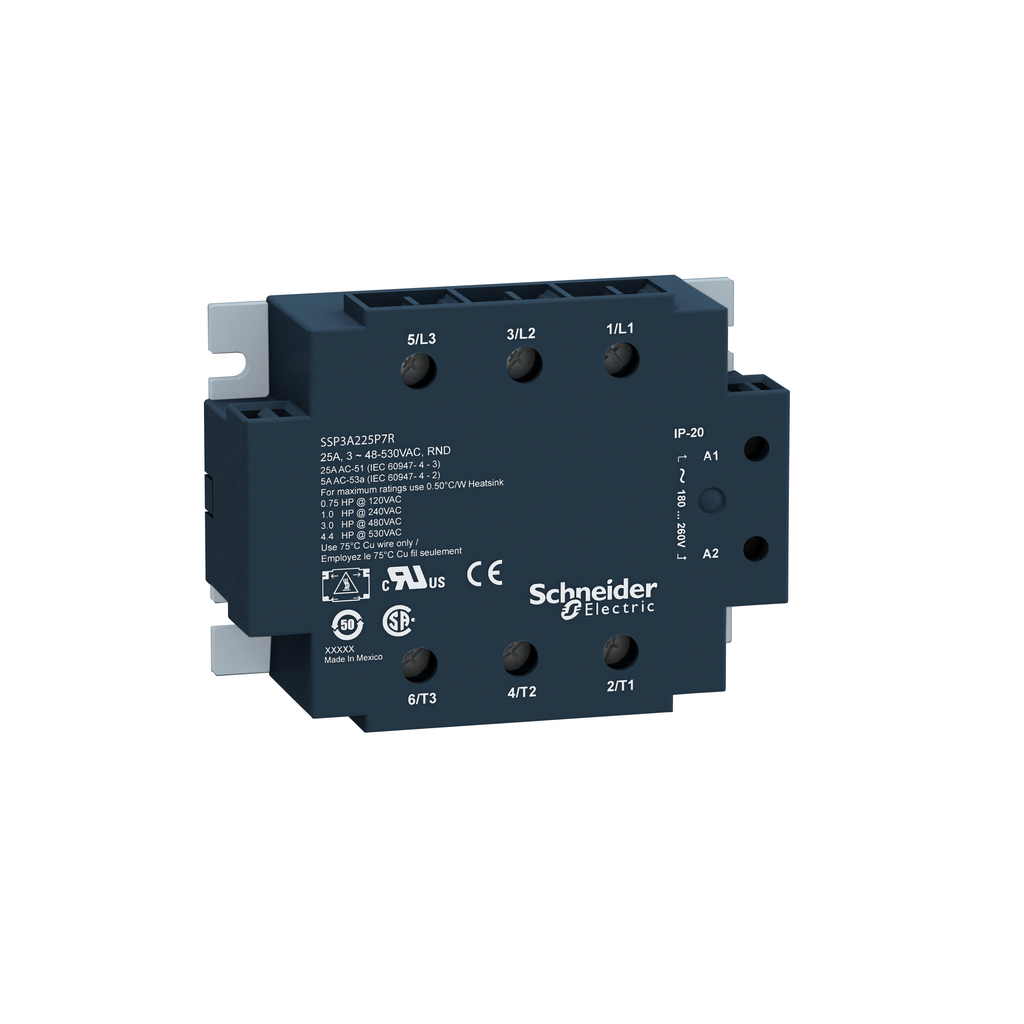

This SSP three-phase solid state relay is part of the range of solid state modular relays Harmony. It features 50A power rating and 3NO contacts. It features a control circuit voltage of 18V to 36V AC and an output voltage (load output) of 48V to 530V AC. This relay is maintenance free, fully electronic with unlimited life span. It features a control input voltage LED indicator in green. Its protection index is IP20. It weighs 240g and its dimensions are, 101.3mm wide, 79.7mm high, 35.4mm deep. 0 It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. 0 0 0 It can be mounted on panel fixed by screws. 0 0 0

Technical Information

Amperage
50 Amp
Applications
1.11 KW 40-40 AC 120 V AC-2.22 KW 40-40 AC 240 V AC-5.55 KW 40-40 AC 480 V AC-6.47 KW 40-40 AC 530 V AC,1.5 HP 40 AC 120 V AC-3 HP 40 AC 240 V AC-7.5 HP 40 AC 480 V AC-8.8 HP 40 AC 530 V AC
Control Type
Without test button
Input Current
1520 mA
Line Rated Current
50 A
Maximum Load Current
0.150 A
Net Weight
0.24 kg
Number of Phases
3 Phase
Operating Temperature
-40-80 Adegrees C
Output Voltage
48-530 V
Response Time
20 ms
Size
1.39 in
Standard
IEC 60950-1,IEC 61000,IEC 62314
Storage Temperature
-40-125 degrees C
TC Connection
SCREW TERMINALS 1 X 0.2...1 X 2.5 MMA, AWG 24...AWG 14) INPUT-SCREW TERMINALS 1 X 1.5...1 X 10 MMA, AWG 16...AWG 8) OUTPUT
Type
Solid state relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSP

General Product Info

12-Digit UPC
606480579878
GTiN
03606480579875
Product UPC
78590197103
Weight
0.53 lb

Dimensions

Depth
35.4 mm
Height
79.7 mm
Width
101.3 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
Mexico
