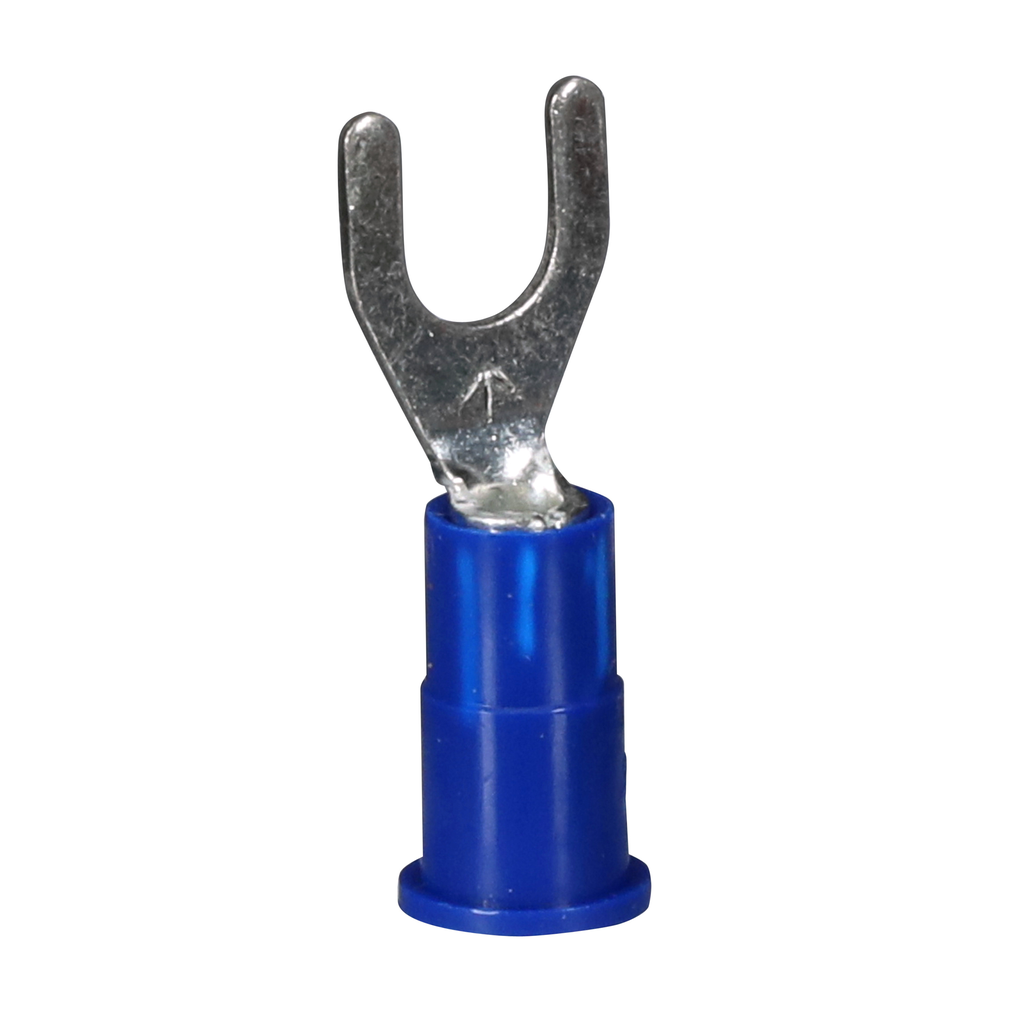

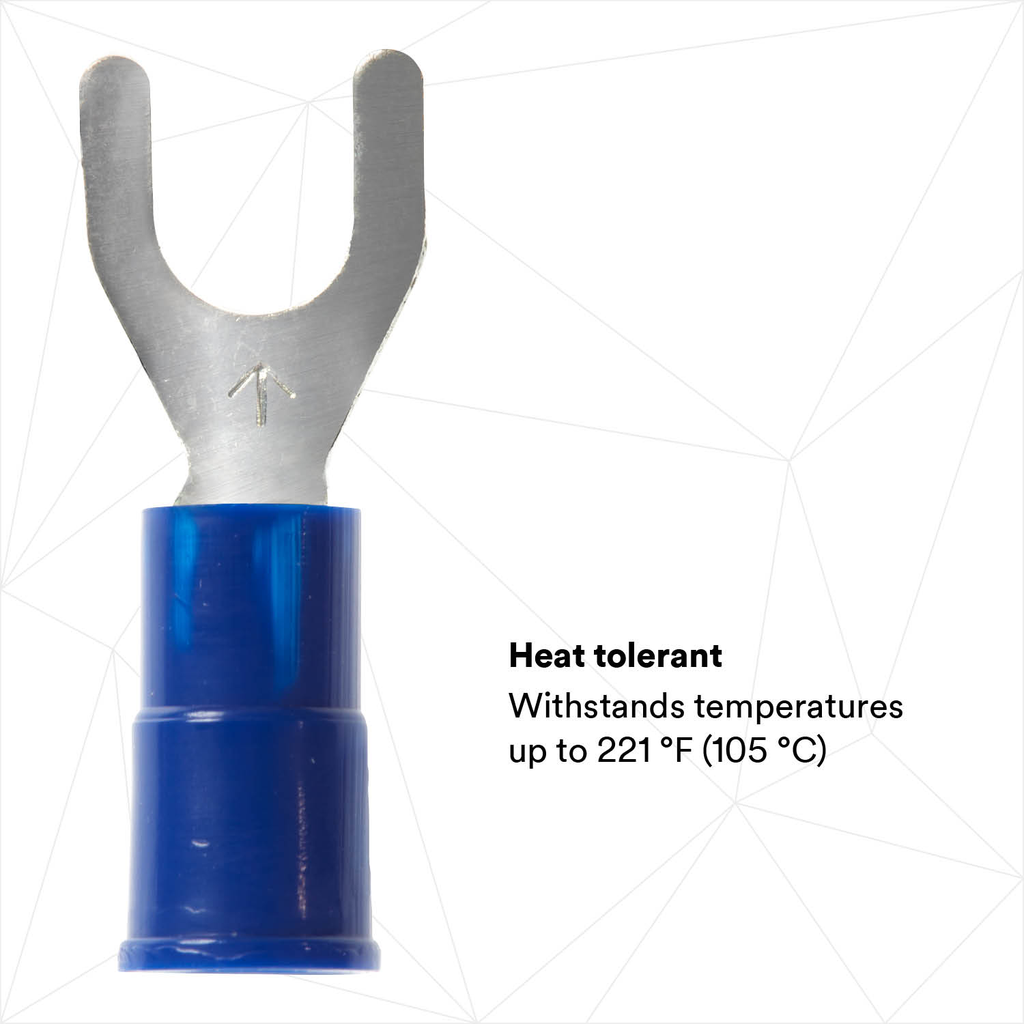

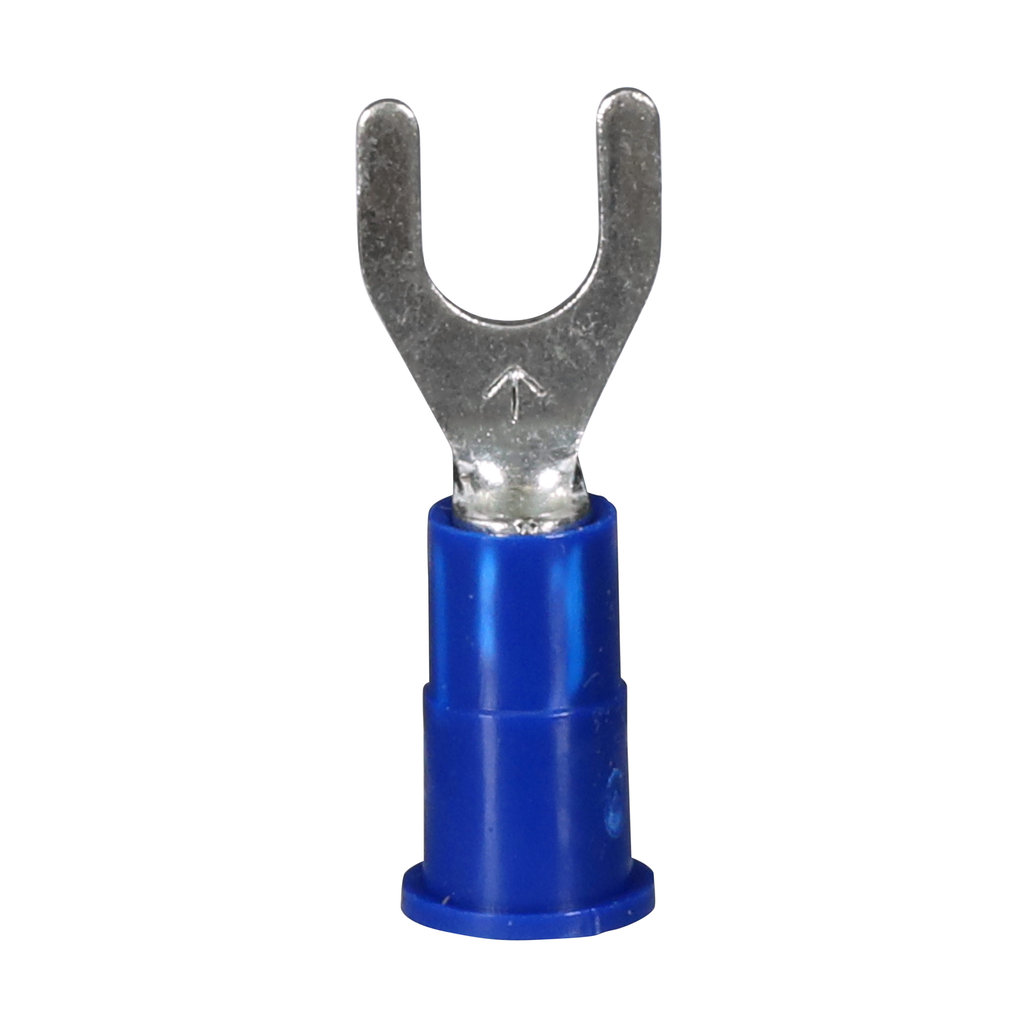

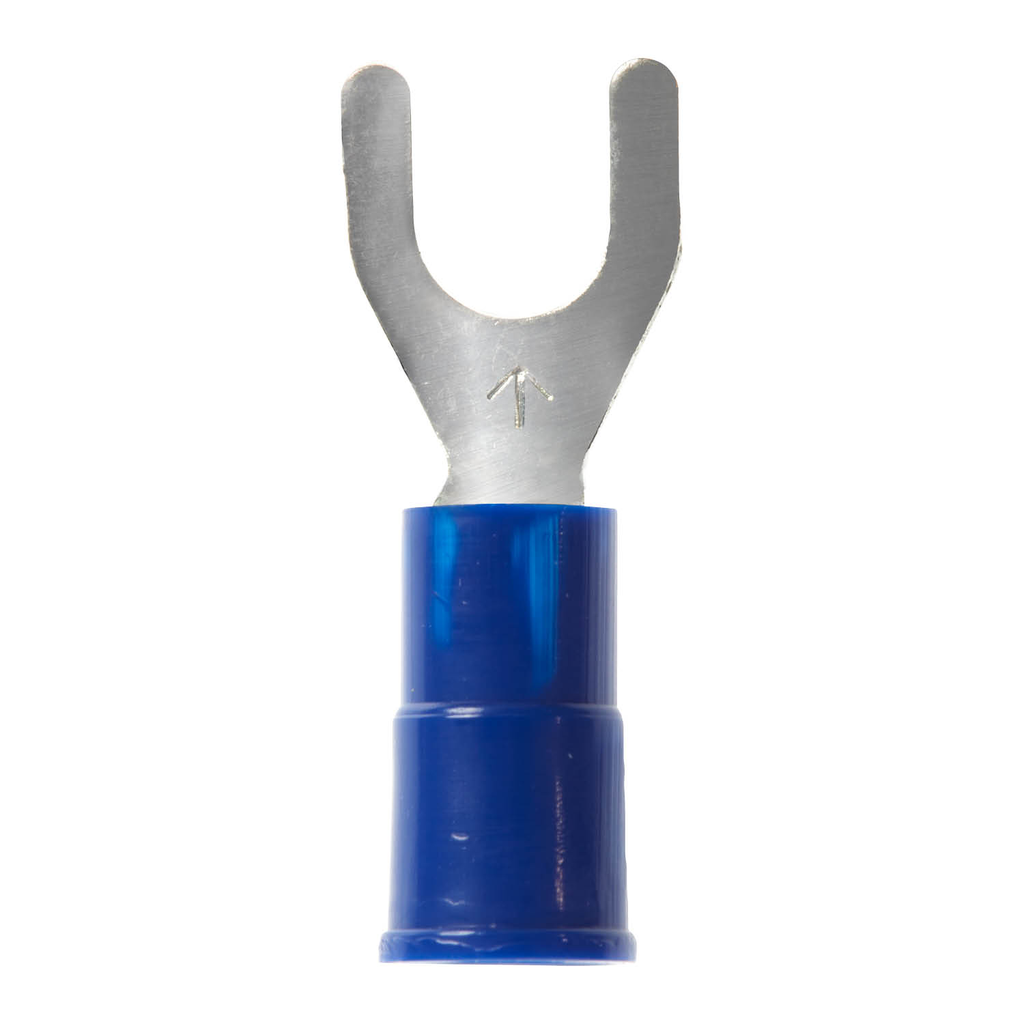

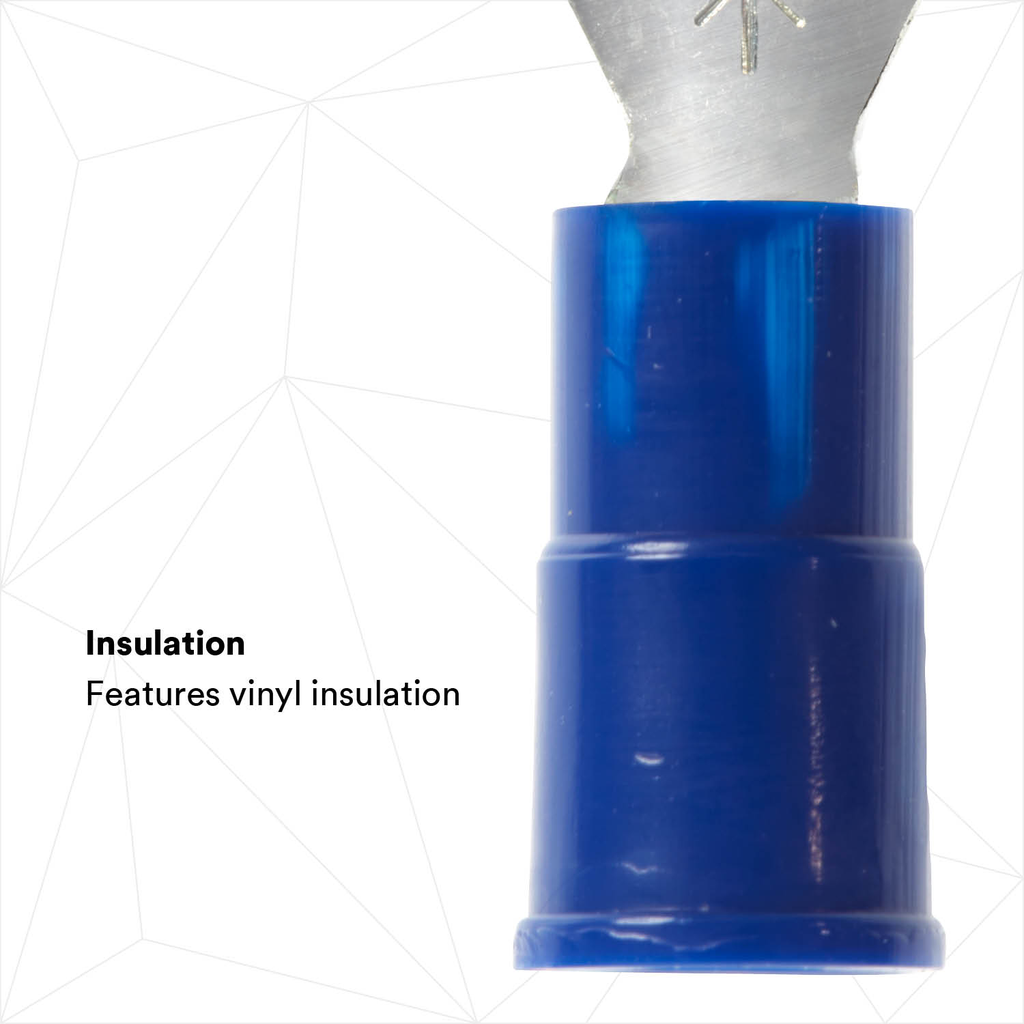

3M™ Scotchlok™ Fork Vinyl Insulated MVU14-10FX is a crimp-type terminal that is used to electrically and mechanically connect to a pre-stripped end of a stranded copper wire. It has a flat, wider-tongue design with a central opening for mounting around a screw or free-standing studs. The terminal features a butted barrel seam with vinyl insulation that works together to provide a secure fit for wires and cables. Made with ETP copper, this vinyl-insulated terminal provides excellent conductivity while the tin plating protects cables and wires from corrosion. Stud size is #10. The vinyl-insulated fork has a maximum operating temperature of 221 .F (105 .C). 3M™ Scotchlok™ Fork Vinyl Insulated MVU14-10FX provides a secure fit and reliable connection during industrial wiring applications. UL Listed and CSA Certified for use on stranded copper (AWG) wire only. UL Standard No. 486A, 3M File No. E23438; CSA Standard No. 22.2 No. 0.65, 3M File No. LR22190.
