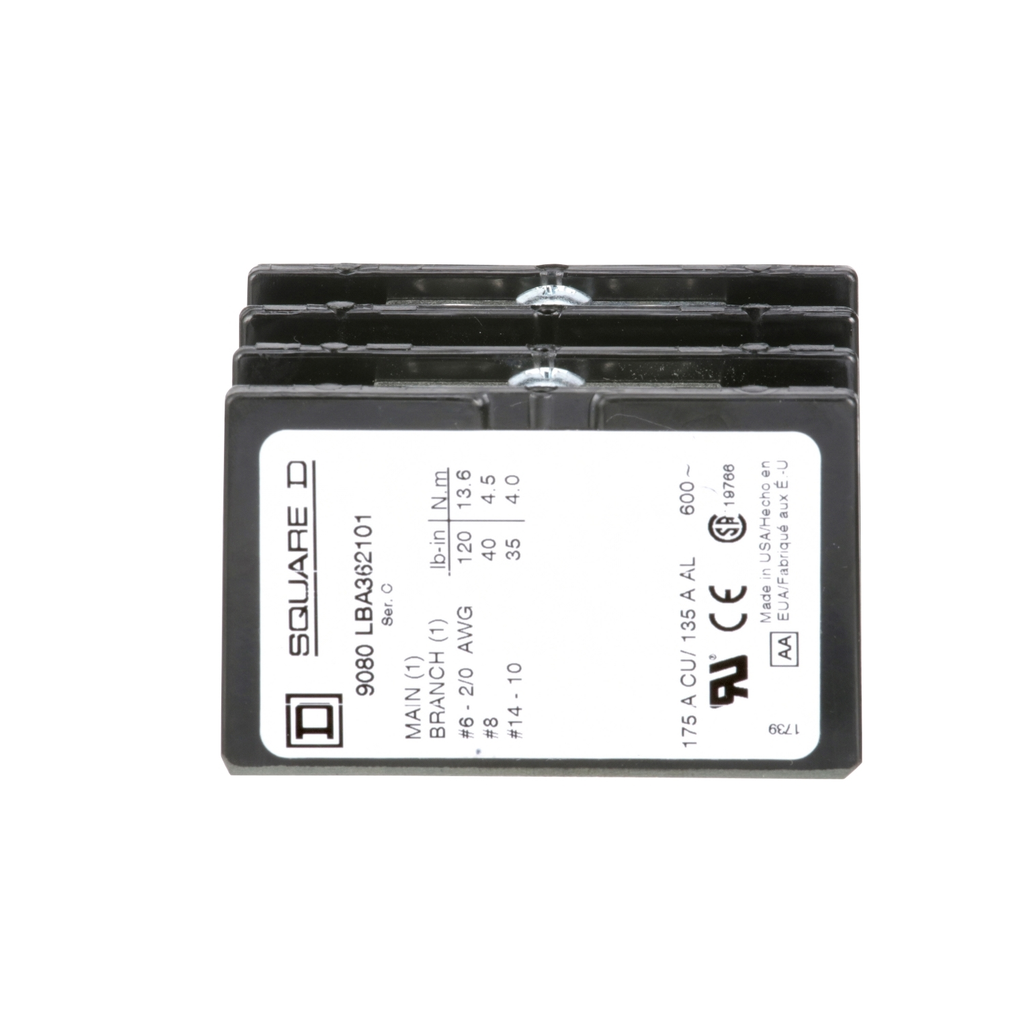

Square D 9080LBA362101 600 Volt 175 Amp Power Distribution Block

Manufacturer: Square-D / Schneider | Catalog # 9080LBA362101 | Cooper Electric Part # 113721
$36.22/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
41 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

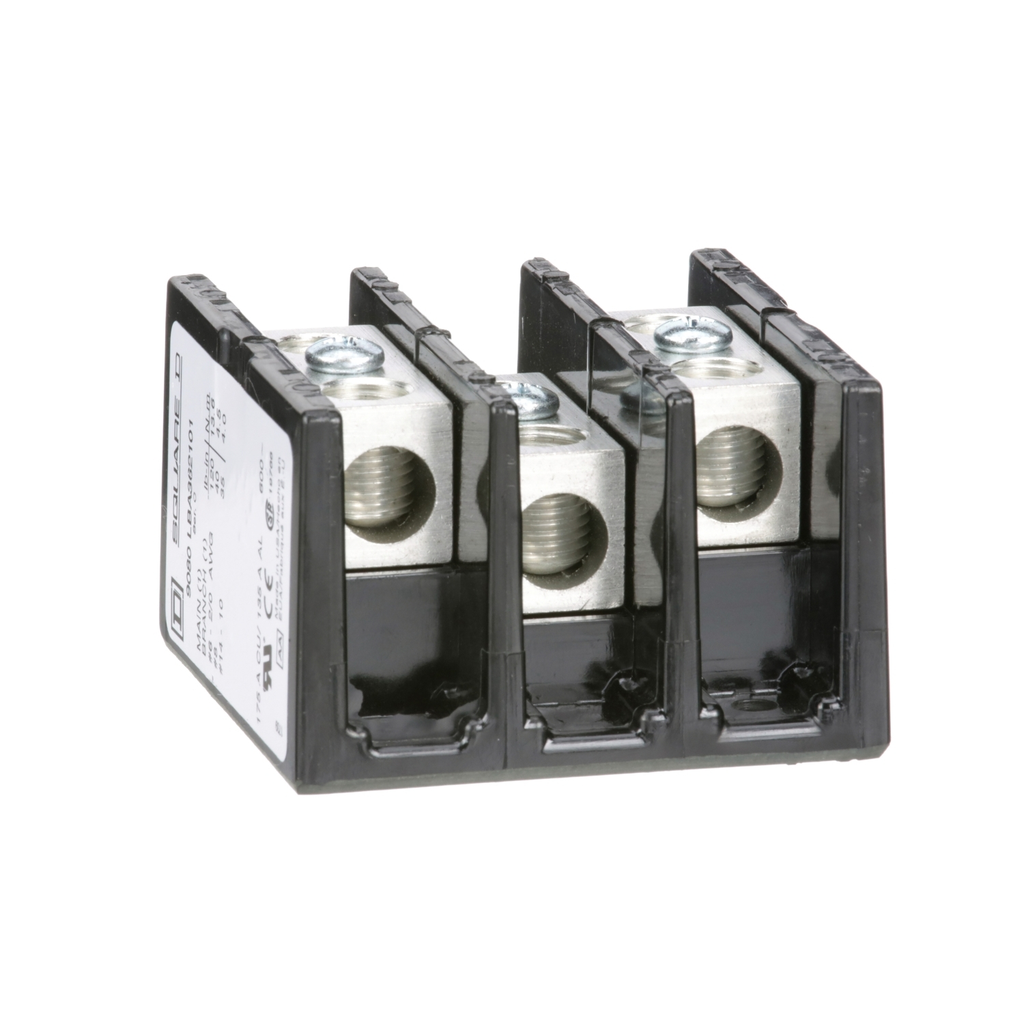

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one or two #14 to 2/0 copper or aluminum wire. The load side lug is rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Amperage
175-175 Amp COPPER-135-135 Amp ALUMINIUM
Applications
9080LB,9080LB23
Conductor Size
14-2/0 AWG
Current
135 Amp
Line Rated Current
135-135 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Net Weight
.21 kg
Number of Poles
3 Pole
Number of Terminations
1
Operating Temperature
-40-302 degrees F
Size
1.78 in
Strip Length
0.5 in
TC Connection
LINE LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 14 COPPER-LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14 COPPER-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM-LOAD LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS
Type
9080LB23;Power Distribution Block
Voltage
600 Volt
Wire Size
Line 2, AWG 14...AWG 2/0, copper or aluminium;Load 1, AWG 14...AWG 2/0, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097440
GTiN
00785901097440
Product UPC
78590109744
Weight
.21 kg

Dimensions

Depth
1.78 Inch
Height
2.88 Inch
Warranty Length
18 mth
Width
1.94 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9080LB23
