Blackburn WR999 Compression Connector

Manufacturer: Blackburn / Thomas & Betts | Catalog # WR999 | Cooper Electric Part # 1136553
$94.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure

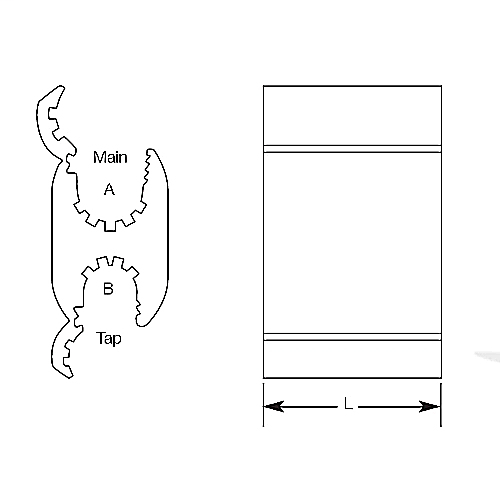

Aluminum Wide Range H-Type Compression Connector Main: 954 45/7 - 666 ACSR, 1033 - 750 Str., Tap: 954 45/7 - 666 ACSR, 1033 - 750 Str. 4-3/4 inch

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Length 4-3/4 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
H-Type Compression Tap Connector
Wire Size
Main: 954 (45/7)-666 ACSR or 1033-750 STR kcmil ; Tap: 954 (45/7)-666 ACSR or 1033-750 STR kcmil

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786103706
GTiN
00783786103706
Product UPC
78378610370

Dimensions

Length
4-3/4 Inch
Features
  • Fold-in tabs provide positive tab interlock as tool closes.
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • RUS accepted and complies with ANSI C119.4
  • Enables excellent connector contact without distorting the conductor's shape.
Notes
  • All die connectors are for use with hydraulic tools, 10-ton and greater.
