Square D QO130M150P 150A 120/240V 1phase Convertible Main Breaker Load Center, Plug-On Neutral, 30 Spaces / 40 Circuits, NEMA-1, Gray

Manufacturer: Square-D / Schneider | Catalog # QO130M150P | Cooper Electric Part # 1135512
$423.87/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
1 available

For Pick Up

at Ocean Closes 6:00pm ET
17 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure

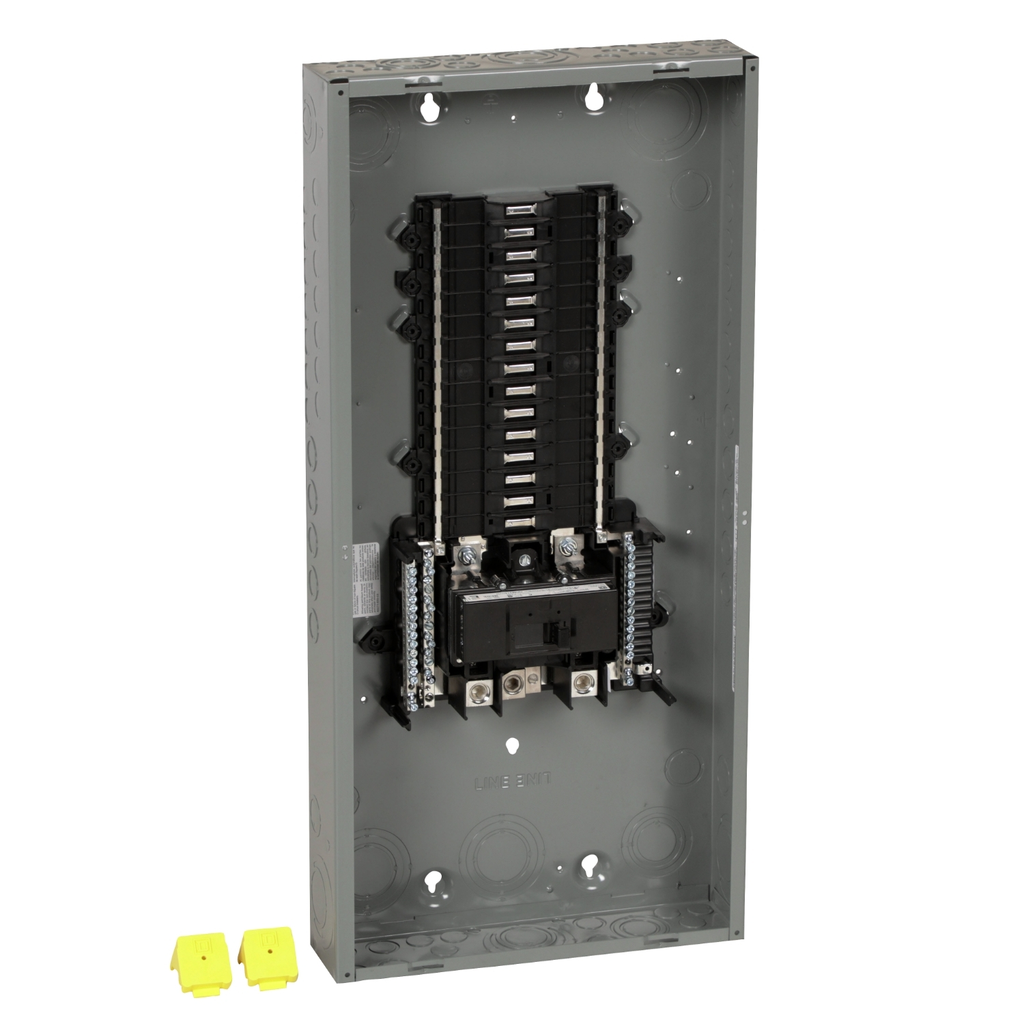

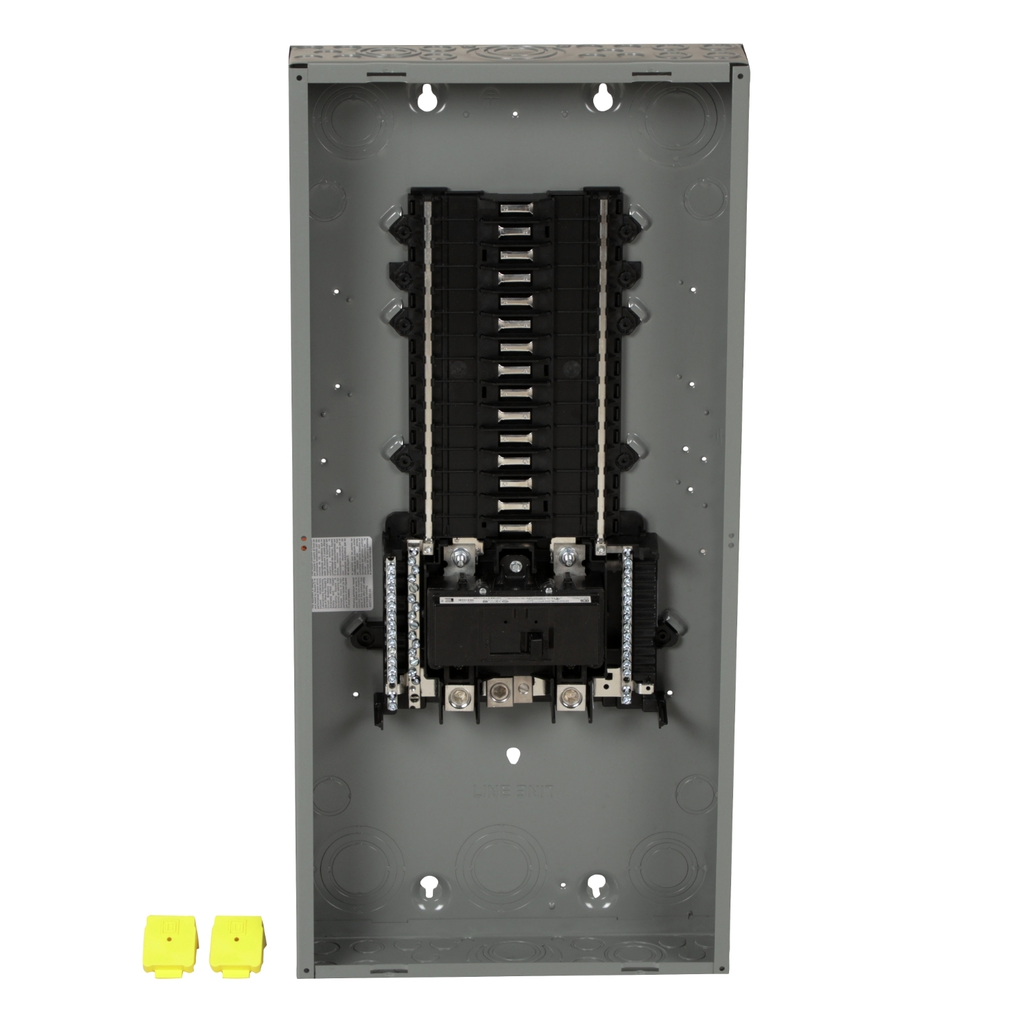

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 150 A and 1 phase. This system provides 30 spaces in a NEMA 1 enclosure. Load center is plug on neutral ready.

Technical Information

Amperage
150 Amp
Conductor Size
4 AWG-250 kcmil
Cover Type
Order Separately
Current
150 Amp
Enclosure
1
Enclosure Material
Steel
Line Rated Current
150 A
Material
Tin Plated Copper: Busbar
NEMA Size
1
Number of Circuits
40
Number of Phases
1,3 Phase
Number of Spaces
30
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Surface Finish
Baked Enamel Gray
Wire Size
AWG 4...250 kcmil aluminium/copper NULL

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901708612
Finish
Baked Enamel
GTiN
00785901708612
Product UPC
78590170861

Dimensions

Height
758 mm
Width
362 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LK70AN
  • QO120
  • QO2175SB
  • QOC30UF
  • QOFP
  • QOM2150VH
  • PK2MB
  • QO115
  • QO250PSPD
  • QOC30US
  • HEPD25
  • PK6FL
  • QO230
  • QOC30UC
  • HEPD50
  • PK15GTA
  • QO115CAFI
  • QOC30UFW
  • HEPD80
  • QO220
  • QOCMF30UC
  • HEPD25MKF
  • QO120DF
  • QOCMF30UCW
  • HEPD58MKF
  • QO120CAFI
  • QO240
  • QO250
  • QO260
  • QO120GFI
  • QO215
  • QO225
  • QO115DF
  • QO130
