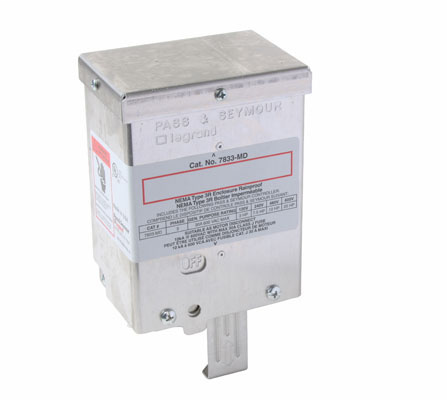

Product image for Pass & Seymour 7833-MD 30 amp, 600 watts Three pole, Three Phase AC Manual Motor Controller
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 7833-MD 30 amp, 600 watts Three pole, Three Phase AC Manual Motor Controller

Manufacturer: Pass & Seymour / Legrand | Catalog # 7833MD | Cooper Electric Part # 1134701
$186.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Brochure
Three pole, Three Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.

Technical Information

Actuator
Toggle Switch
Amperage
30 Amp
Applications
Commercial and Industrial
Connection Type
Back and Side Wire
Enclosure
NEMA 3R
Mounting Type
Flush
Number of Poles
3 Pole
Operating Cycles
50000
Operating Temperature
Maximum continuos +75degrees C, minimum -40degrees C
Size
1.8" Depth x 4.5" Width x 5.75" Height
TC Connection
Side & Back Wired
Temperature Rating
-40 to 75 degrees C
Type
Manual, Toggle Actuated
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007267709
Color
Aluminum
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00785007267709
Product UPC
78500726770

Dimensions

Depth
1.8 Inch
Height
5-3/4 Inch
Width
4.5 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS
Country of Origin
Mexico
Features
  • High Horsepower rating of 20HP
  • Gull-wing shaped brass terminal pressure clamps
  • Constructed of glass-reinforced thermoplastic
  • UL508 and cULus Listing of individual device and assembled device within enclosure
  • Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
  • External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
