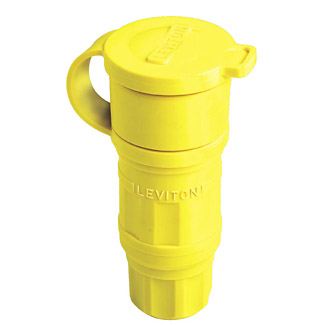

Product image for LEV 29W49 YL WGRD CONN LCK 2PO3WI L
Image thumbnail 0
Image thumbnail 1
Email

LEV 29W49 YL WGRD CONN LCK 2PO3WI L

Manufacturer: Leviton Mfg Co | Catalog # 29W49 | Cooper Electric Part # 1134465
$138.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
30 Amp, 277 Volt, NEMA L7-30R, 2P, 3W, Locking Connector, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Stainless Steel 300
Amperage
30 Amp
Applications
For Industrial
Blade Type
Nickel-Plated Brass
Body Material
EPTR Rubber
Conductor Size
12-8 AWG
Connection Type
Screw Terminal
Contact Material
Nickel-Plated Brass
Cord Type
SO,SOO,ST,STO
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grade
Industrial
Grounding
Grounding
Material
TPV
Mounting Type
Cable
NEMA

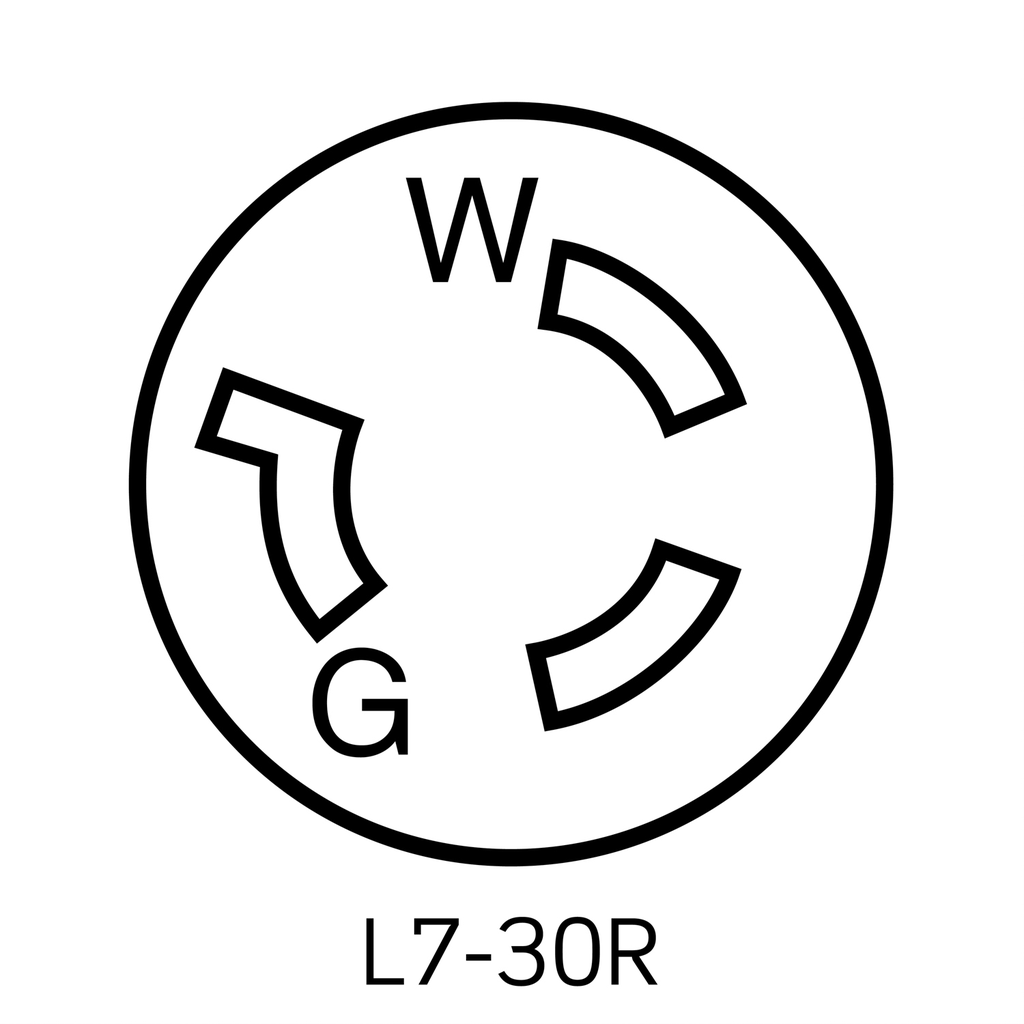

L7-30R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Nickel-Plated Brass
Screw Type
Stainless Steel 300
Size
2.75 Diameter X 5.52 L IN
Standard
UL
TC Connection
Screw, 6 Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
12 lb-in
Type
Locking,Watertight Connector
Voltage
277 Volt
Wire Count
3
Wire Size
12-8 AWG
Wire Type
SO, ST, STO, SOO

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477968758
Color
Yellow
Environment
Wet
Environmental Conditions
Watertight
GTiN
00078477968758
Product UPC
07847796875

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
  • UNIQUE DESIGN- Exclusive tongue and groove design provides superior ingress protection from water, dirt and debris
  • HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
  • THE BRAND YOU TRUST- Backed by a lifetime warranty
NEMA
  • L7-30R
