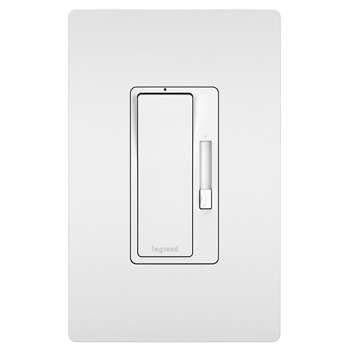

Product image for Pass & Seymour RH1103PW Radiant Incandescent Single Pole/3-Way Dimmer, 1100W 120V - White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

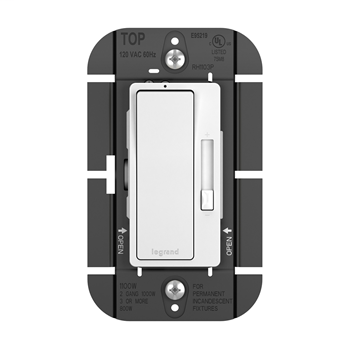

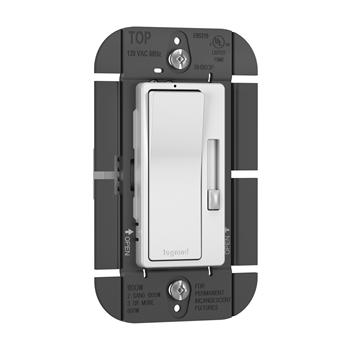

Pass & Seymour RH1103PW Radiant Incandescent Single Pole/3-Way Dimmer, 1100W 120V - White

Manufacturer: Pass & Seymour / Legrand | Catalog # RH1103PW | Cooper Electric Part # 1132825
$75.21/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.Upgrading your standard switch to this dimmer will save energy and extend bulb life by reducing the amount of electricity required to power the lights. radiant® Screwless Wall Plate not included.

Technical Information

Actuator
Paddle switch with Slider
Amperage
15 Amp
Applications
Residential
Bulb Compatibility
Incandescent
Connection Type
Screw-Type Terminals
Enclosure
Thermoplastic
Frequency
120 Hz
Lamp Type
Incandescent
Material
Thermoplastic
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Operating Temperature
32-104degrees F (0-40degrees C)
Power Rating
1100 W
Style
Rocker
Switch Type
Paddle
TC Connection
Screw Terminals
Temperature Rating
0 degrees C to 40 degrees C
Terminal Type
Screw
Type
1-Pole
Voltage
120 Volt
Wattage
1100 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
radiant

General Product Info

12-Digit UPC
785007053395
Color
White
Environmental Conditions
0 - 95%
GTiN
00785007053395
Product UPC
78500705339

Dimensions

Depth
1-1/4 Inch
Height
4-1/4 Inch
Warranty Length
Limited Lifetime
Width
2.5 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Part of the all-new radiant™ collection.
  • Convenient operationcombines ON/OFF paddle switch with separate slider for dimming control.
  • White LED glows when dimmer is OFF for easy location in the dark.
  • Constant memory returns lights to previous level after a power failure.
  • Higher ratings.
  • Single pole and 3-way operation.
  • Works with standard 3-way switches and wiring.
  • Screw-pressure-plate backwire terminals save time, space and money.
  • Seven additional face cover colors available but sold separately (see HKIT*).
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
  • LEED Contribution: Yes
