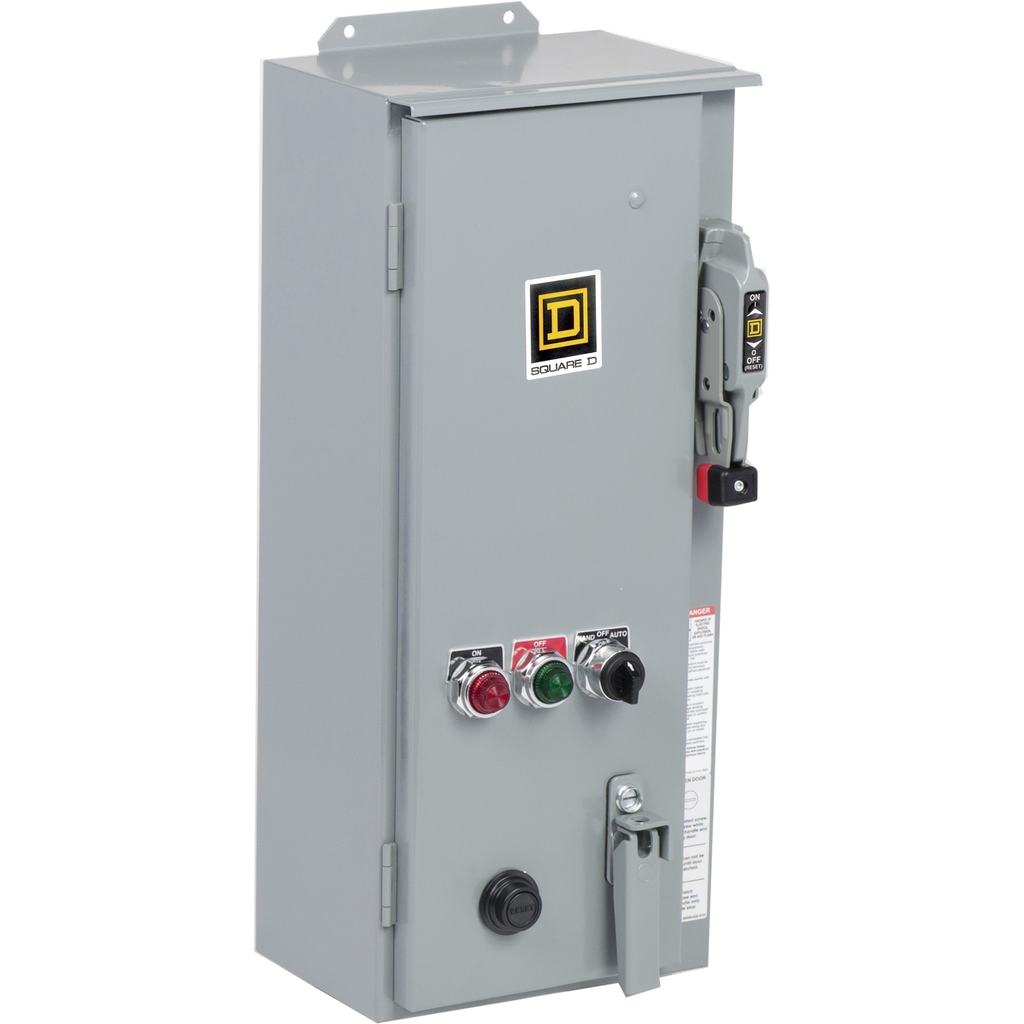

Product image for SQD 8539SDASP6 NEMA Combination Sta
Image thumbnail 0
Image thumbnail 1
Email

SQD 8539SDASP6 NEMA Combination Sta

Manufacturer: Square-D / Schneider | Catalog # 8539SDASP6 | Cooper Electric Part # 1132508
$2,304.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
NEMA sizes 0-7 with award-winning PowerPact circuit breakers, efficient long-lasting LED pilot lights and foam-in-place door seals

Technical Information

Amperage
45 Amp
Circuit Breaker Type
EMCP
Contact Configuration
2 NO + 2 NC
Disconnect Type
Circuit breaker, 50 A, electrical SPDT
Enclosure
NEMA 12 PAINTED SHEET STEEL AND WITH EXTERNAL RESET
Line Rated Current
45 A
NEMA Size
2
Number of Poles
3 Pole
Reset Type
SOLID STATE MOTOR LOGIC CLASS 10/20 15...45 A FLA
Size
9.59 in
Type
Combination Starter
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901973980
Environmental Conditions
DUST TIGHT AND DRIP TIGHT (INDOOR)
GTiN
00785901973980
Product UPC
78590197398

Dimensions

Depth
9.59 Inch
Height
27-3/4 Inch
Length
3-1/4 Inch
Warranty Length
18 mth
Width
10.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File 584 Class 3211 04,UL Listed File E152395 CCN NKJH,UL Listed File E152395 CCN NKJH7
Country of Origin
Mexico
