INT-MAT IG2280-P 2 SPD Sngl Ph 20in

Manufacturer: Intermatic, Inc | Catalog # IG2280-P | Cooper Electric Part # 1132480
$1,326.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

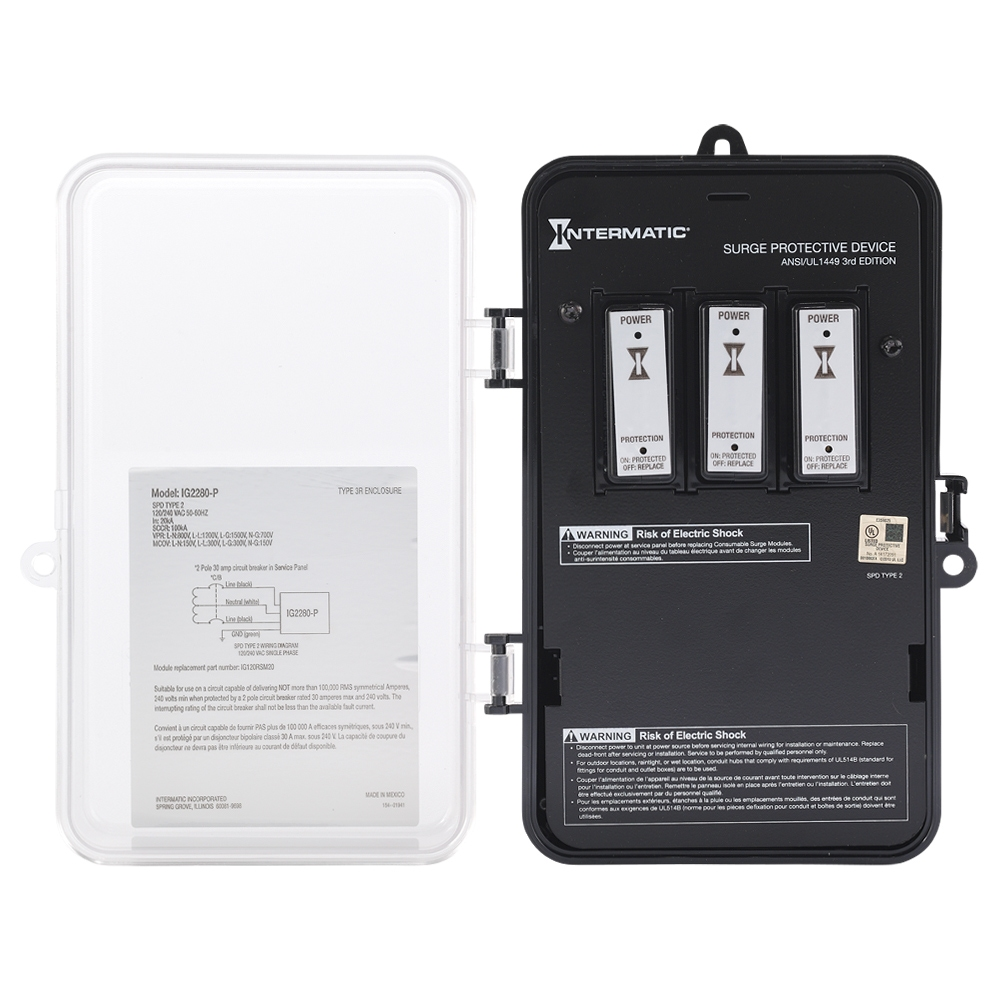

Intermatic's SMART GUARD® provides coverage of your customer’s big investment equipment, from appliances and computers to HVAC equipment and TVs. This innovative Surge Protective Device uses IMODULE® with LED lights for quick and easy status indication. A blue light indicates the Surge Protective Device unit is ON and a green light indicates surge protection is active. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. UL Listed to ANSI/UL 1449, 4th Edition.

Technical Information

Applications
Whole Home Protection
Enclosure Rating
Outdoor
Frequency
50/60 Hz
Material
Steel
Max Operating Temperature
185 degrees F
Min Operating Temperature
-31 degrees F
Mounting Type
Surface With Brackets
Number of Phases
1 Phase
Standard
ANSI/UL1449 3rd Edition,CULus Listed

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275146105
Color
Black
Finish
Powder Coated Steel
GTiN
00078275146105
Product UPC
07827514610

Dimensions

Warranty Length
10 yr

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Six Modes of protection
  • TPMOV® surge protection technology
  • Includes three IMODULES with LED power and protection status lights
  • IMODULES replace quickly and easily, eliminating the need to install a new SPD unit
  • Tamper-proof IMODULE doors, will only open when IMODULE is being inserted
  • Type 3R Rainproof Enclosure for indoor/outdoor applications in plastic
  • 10-year product warranty
  • $25,000 connected equipment warranty for 10 years on appliances and electronics
  • UL Listed to ANSI/UL 1449 5th edition
  • NA
