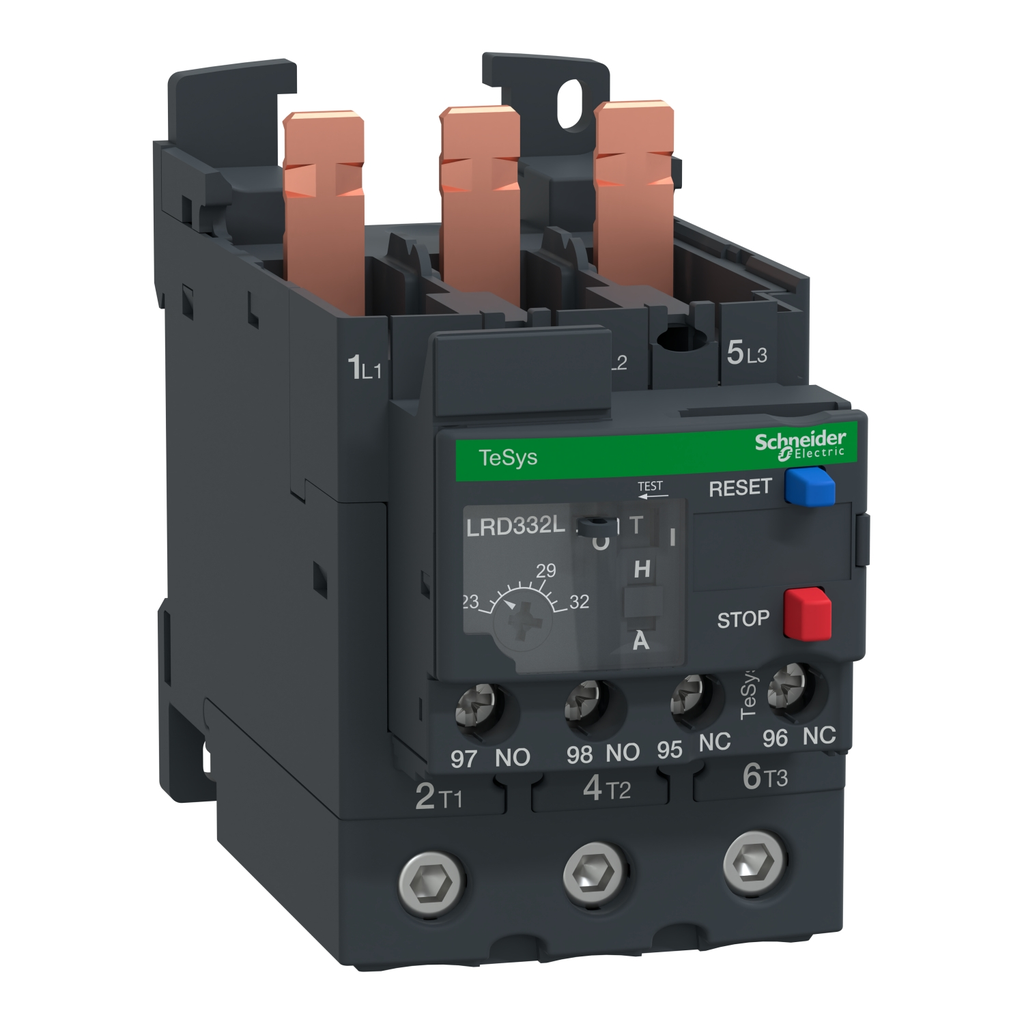

Square D LRD332L 600 Volt 23 to 32 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Manufacturer: Square-D / Schneider | Catalog # LRD332L | Cooper Electric Part # 1131534
$179.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys LRD thermal overload relay, 32A/690V, thermal setting range 23-32A, tripping class 20, for protection of 3-phase motors 15kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
LC1D40A;LC1D50A;LC1D65A;Motor protection
Contact Configuration
1 NO + 1 NC
Contact Rating
10A CONTROL CIRCUTRY
Control Type
Red push-button stop;Blue push-button reset
Dielectric Strength
50 Hz
Net Weight
0.375 kg
Number of Poles
3 Pole
Operating Temperature
-20C TO 60C WITHOUT DERATING
Reset Type
MANUAL OR AUTO
Size
4.84 in
Standard
CSA C22.2 No 60947-4-1,CSA C22.2 No 60947-5-1,EN/IEC 60947-4-1,EN/IEC 60947-5-1,GB/T 14048.4,GB/T 14048.5,UL 60947-4-1,UL 60947-5-1
Storage Temperature
-60-70 degrees C
Trip Type
THERMAL - AMBIENT COMPENSATED BI-METALLIC/DIFFERENTIAL CLASS 20 WITH SINGLE PHASE SENS.
Type
Differential thermal overload relay
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LRD;TeSys LRD;TeSys Deca

General Product Info

12-Digit UPC
389119215551
GTiN
03389119215558
Product UPC
78590195248
Weight
0.375 kg

Dimensions

Depth
123 mm
Height
123 mm
Warranty Length
18 mth
Width
55 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,DNV-GL,EAC,EU-RO MR,IEC,LROS (Lloyds Register Of Shipping),RMRS,UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LAD96560
Cross Sell Products
  • LC1D40AM7
