SQD SSM1A112F7 single phase relay,

Manufacturer: Square-D / Schneider | Catalog # SSM1A112F7 | Cooper Electric Part # 1131266
$45.69/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

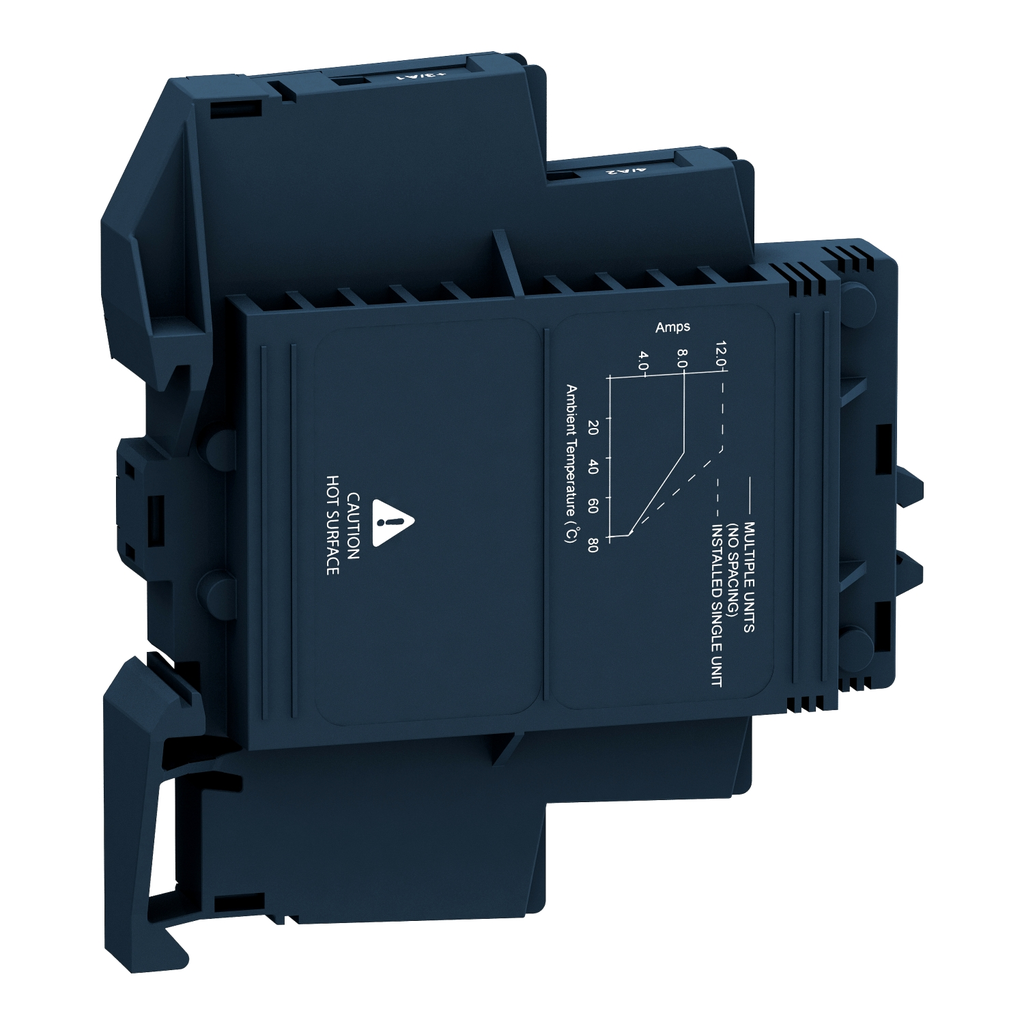

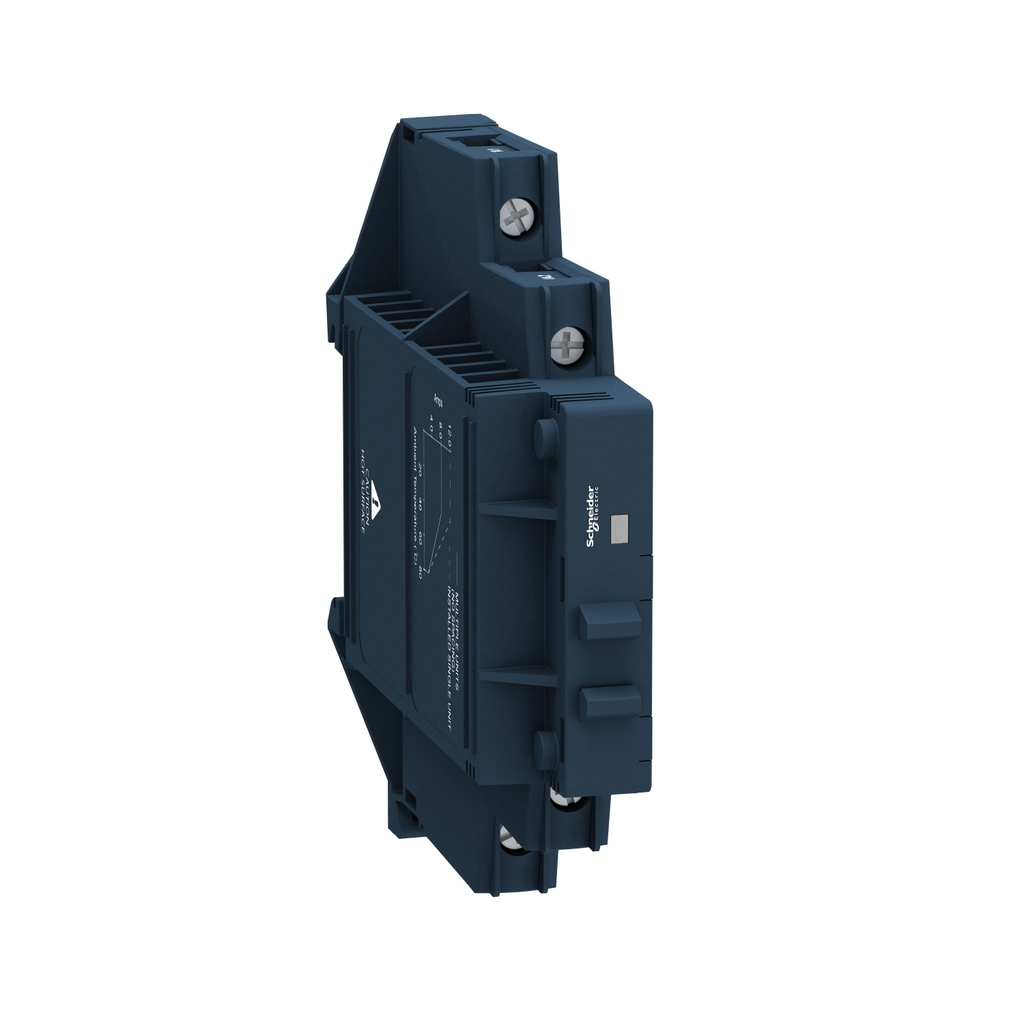

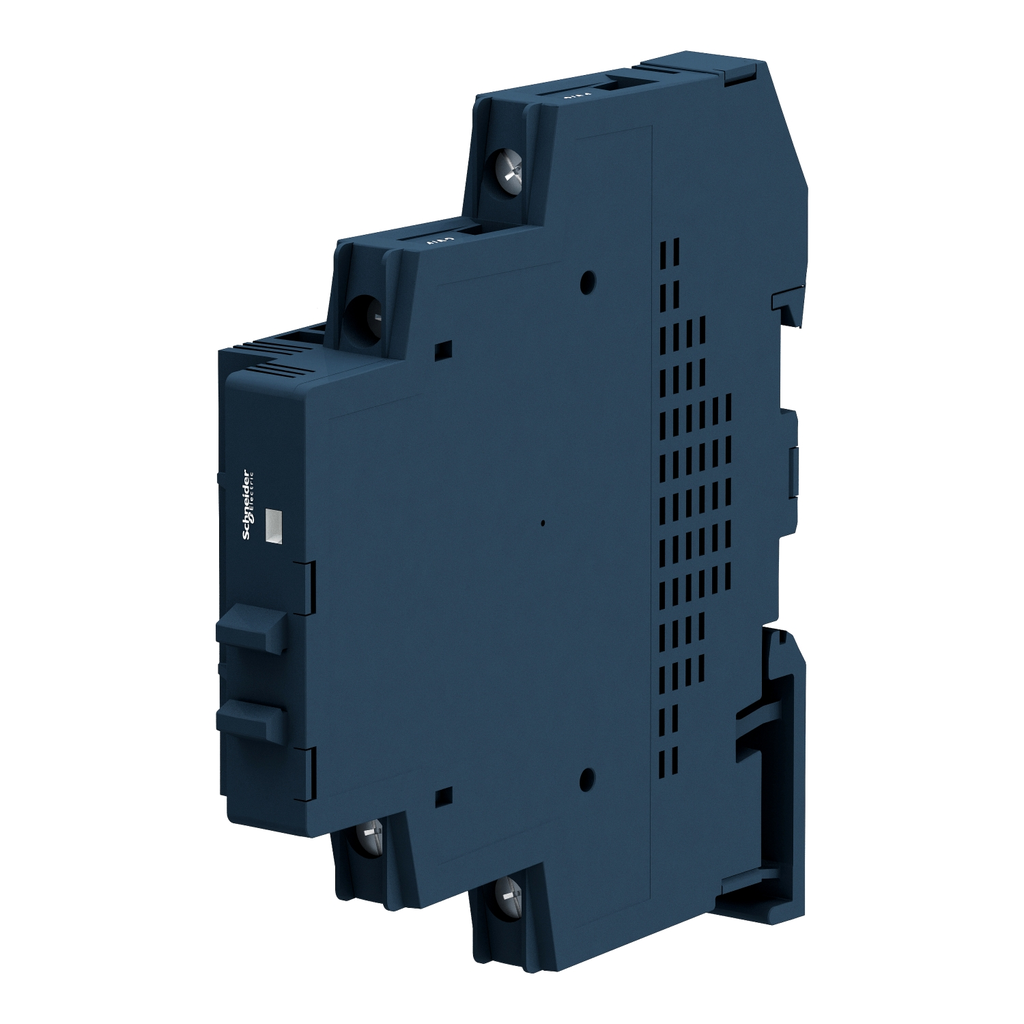

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 90V to 140V AC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
12 Amp
Applications
0.33 HP 40 AC 240 V AC
Dielectric Strength
4 kV
Line Rated Current
12 A
Maximum Load Current
0.1512 A
Net Weight
0.09 kg
Number of Channels
1
Number of Phases
1 Phase
Operating Temperature
-30-80 degrees C
Output Voltage
24-280 V
Power Factor
0.5 (with maximum load)
Response Time
0.5 cycle (turn-on);30 ms (turn-off)
Size
3.30 in
Standard
IEC 60950-1,IEC 61000,IEC 62314
Storage Temperature
-30-100 degrees C
TC Connection
SCREW TERMINALS 1 X 0.3...1 X 1.5 MMA, AWG 22...AWG 16) INPUT-SCREW TERMINALS 1 X 0.3...1 X 2.5 MMA, AWG 22...AWG 14) OUTPUT
Type
Solid state relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSM

General Product Info

12-Digit UPC
606480579496
GTiN
03606480579493
Product UPC
78590196844
Weight
0.09 kg

Dimensions

Depth
83.7 mm
Height
90.3 mm
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
