Current LCAT24-35LWG-EDU 4168 LM 90 Cri 3500 K 2 X 4 Foot Curved Dimming LED Troffer

Manufacturer: Columbia Lighting | Catalog # LCAT24-35LWG-EDU | Cooper Electric Part # 1129402
$195.61 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure

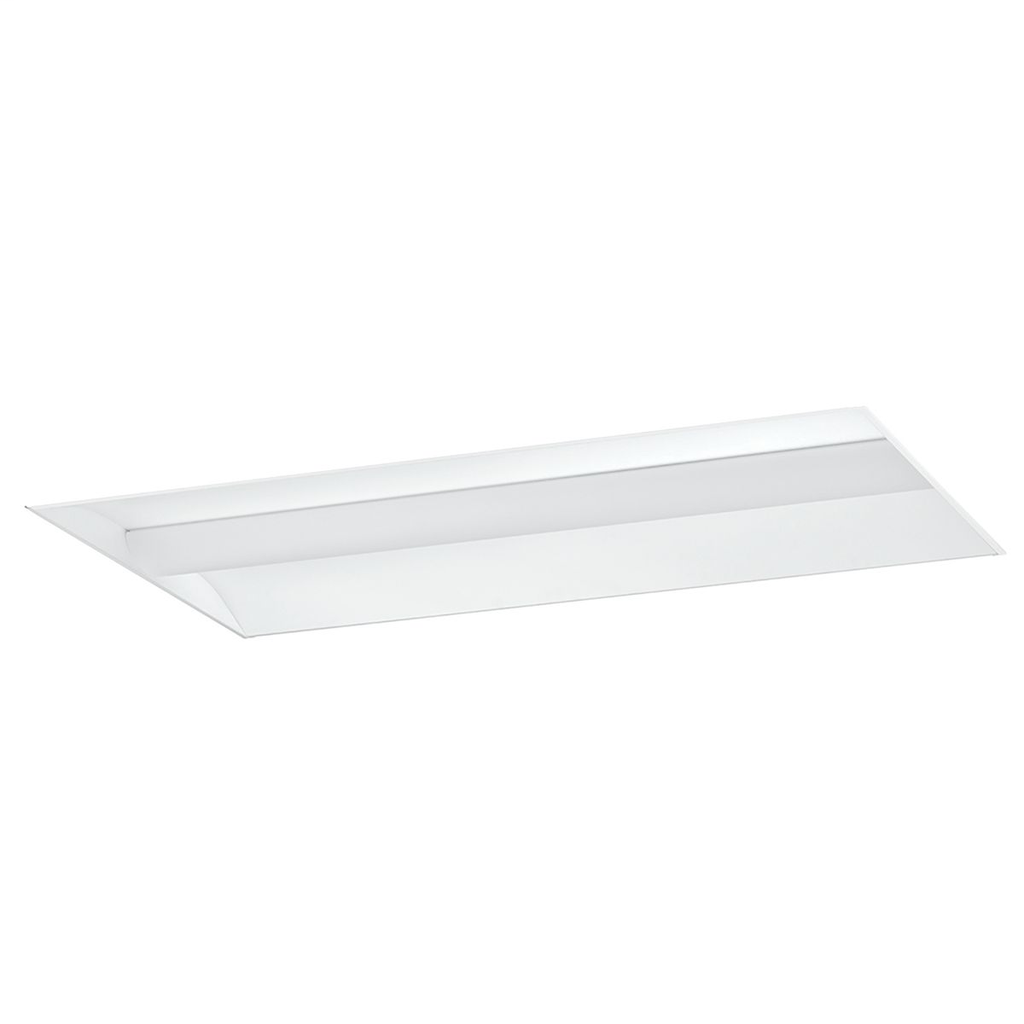

LCAT architectural LED troffer with a curved center lens, 2x4, Color Temperature: 3500 K, Lumen Output Category: low watt, Light Output: 4,168 lm, Wattage: 40 W, Mounting Type: Recessed, Driver type: 0-10V dimming, Voltage Rating: 120-277 VAC.

Technical Information

Applications
Commercial Indoor, Classrooms and Offices, Halls/Dorms, Conference Room, Meeting Room, Common Areas
Ballast Type
0-10V dimming
Coating
High Reflectivity Matte Paint
Color Rendering Index
80
Color Temperature
3500 K
Correlated Color Temp
3500 K
Lamp Type
LED
Light Source
LED
Lumens
2,500 Lumen
Material
Steel
Size
1 1/2 in
Style
Architectural indoor troffer
Type
Non-Reversing
Voltage
277 Volt
Wattage
40 Watt

Manufacturer Information

Brand
Columbia Lighting

General Product Info

12-Digit UPC
078531125868
Color
White
Finish
High Reflectivity Matte Paint
GTiN
00078531125868
Product UPC
07853112586
Weight
20 lb

Dimensions

Height
4 Inch
Length
48 Inch
Warranty Length
5 yr
Width
24 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Country of Origin
Mexico
Features
  • Attractive architectural center lens.
  • High efficiency acrylic center lens features linear prisms for high performance without pixelation.
  • Appropriate for offices, schools, medical, and public spaces.
  • High performance reflector with matte white paint standard.
  • 60,000 hour LEDs at L80 (up to 150,000 projected life) for reduced maintenance.
  • Four LED color choices.
  • Multiple lumen packages.
  • Multiple driver options to satisfy different applications.
  • LED modules and electrical accessible from below.
  • QR code traceability.
  • Integral battery pack optional on most models
  • Compatible with Dual-Lite inverters
  • Recessed, Surface, or Cable Mount
  • Air return option
  • DesignLights Consortium® (DLC) qualified
  • see www.designlights.org
