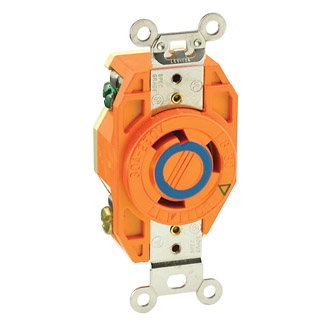

Product image for Leviton 2620-IG 250 Volt 30 Amp 2-Pole 3-Wire NEMA L6-30R 2 Hp Orange Resin 357 Flush Mount Locking Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Leviton 2620-IG 250 Volt 30 Amp 2-Pole 3-Wire NEMA L6-30R 2 Hp Orange Resin 357 Flush Mount Locking Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 2620-IG | Cooper Electric Part # 11290
$97.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
30 Amp, 250 Volt, NEMA L6-30R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE

Technical Information

Amperage
30 Amp
Applications
For Commercial
Base Material
Valox,Valox
Body Material
Valox 357
Conductor Size
16-8 AWG
Connection Type
Back and Side Wired
Cover Material
Valox
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Valox
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Isolated
Horsepower
2 hp
Material
PBT
Mounting Type
Box, Flush
NEMA
L6-30R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Flush Mount Locking Receptacle
Voltage
250 Volt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477809501
Color
Orange
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
GTiN
00078477809501
Product UPC
07847780950

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
NEMA
  • L6-30R
Features
  • Levitons Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
