Erico 505526 ERIFLEX Flexibar, Tinned Copper, 800 A, UL 67, UL 758 Certification Details, 1.575" x 0.039", 789.41 kcmil

Manufacturer: Erico, Inc | Catalog # 505526 | Cooper Electric Part # 1128258
$737.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
nVent ERIFLEX Flexibar, Tinned Copper, 800 A, UL 67, UL 758 Certification Details, 1.575" x 0.039", 789.41 kcmil

Technical Information

Applications
Power Connections
Material
Copper
Type
nVent ERIFLEX Flexibar Flexible Busbar

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856447559
Finish
Tinned
GTiN
00782856447559
Product UPC
78285644755
Weight
11.67 kg

Dimensions

Length
9.84-9.84 Foot
Features
  • Thin layers of tinned electrolytic copper formed into a stack
  • Insulated by high-resistance, self-extinguishing PVC with less than 20% contact with conductor for high flexibility
  • Easily bent, folded, and twisted, improving assembly flexibility, shortening connections, and decreasing footprint
  • Dramatically smaller and more flexible than comparable cable based on ampacity
  • Better power density than cable with lower skin effect ratio

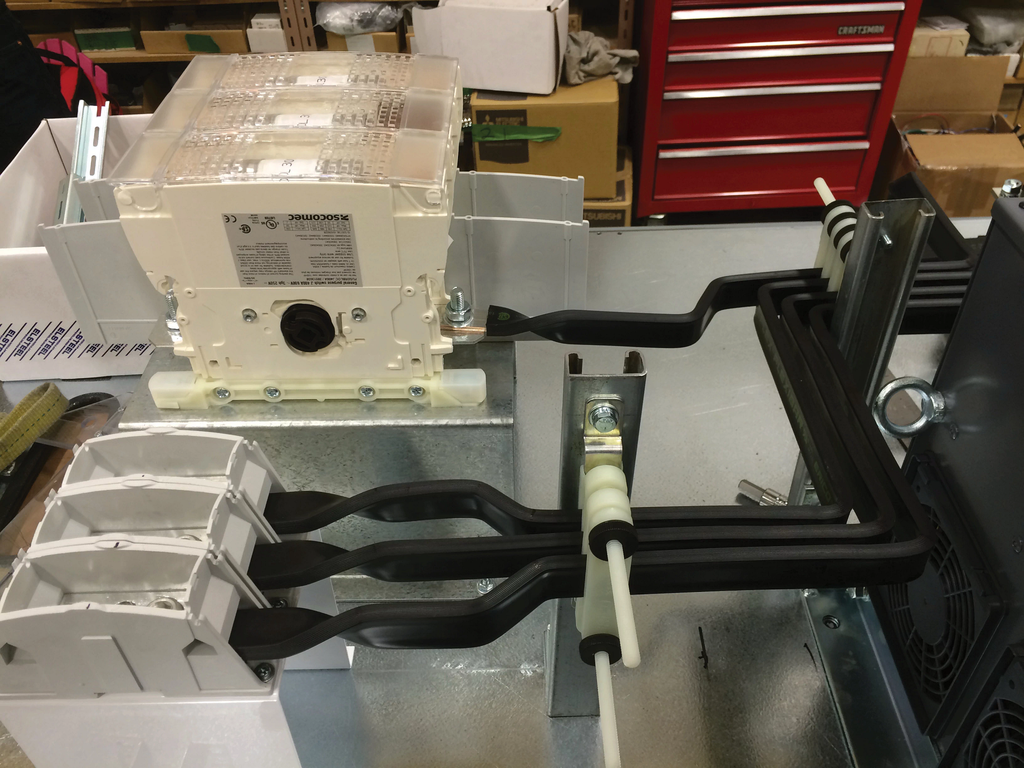

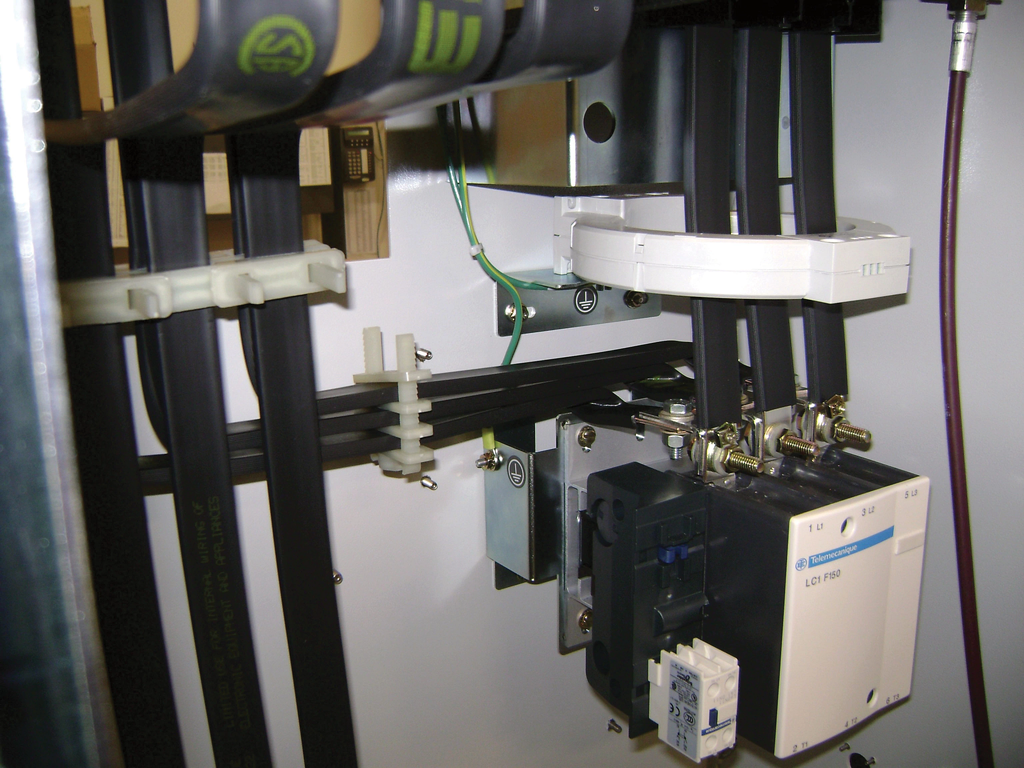

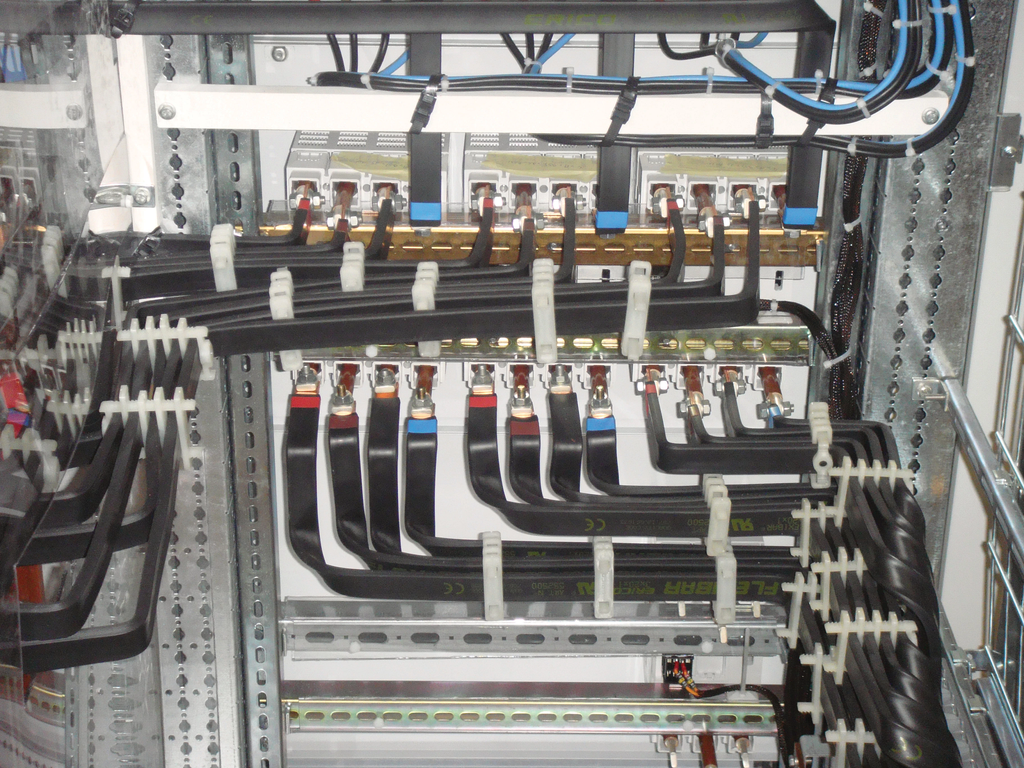

  • Connections made by punching and bolting directly through the copper laminates, clamping onto the end of the nVent ERIFLEX Flexibar, or welding using nVent ERICO Cadweld
  • No lugs needed, reducing installation time and improving resistance to vibration
  • Weight savings and material savings compared to wire alternatives
  • Reduces total installation cost
  • Traceability codes and designation part numbers printed on insulation
  • 100% production dielectric tested
  • UL 758 Appliance Wiring Material requirements for Cold Bend testing at -40°C and -50°C (-40°F and -58°F)
  • EAC compliant
  • RoHS compliant
  • Tinned copper allows for copper or aluminum conductor connections
Certifications
  • cUR CSA C22.2 No. 29, CSA C22.2 No. 244
  • CSA CSA C22.2 No. 0, CSA C22.2 No. 210
  • Bureau Veritas ACE 14/163/02
  • UR ANSI/UL 758
  • UR ANSI/UL 67, ANSI/UL 891
  • CE, ERIFLEX FLEXIBAR EN 61439-1
