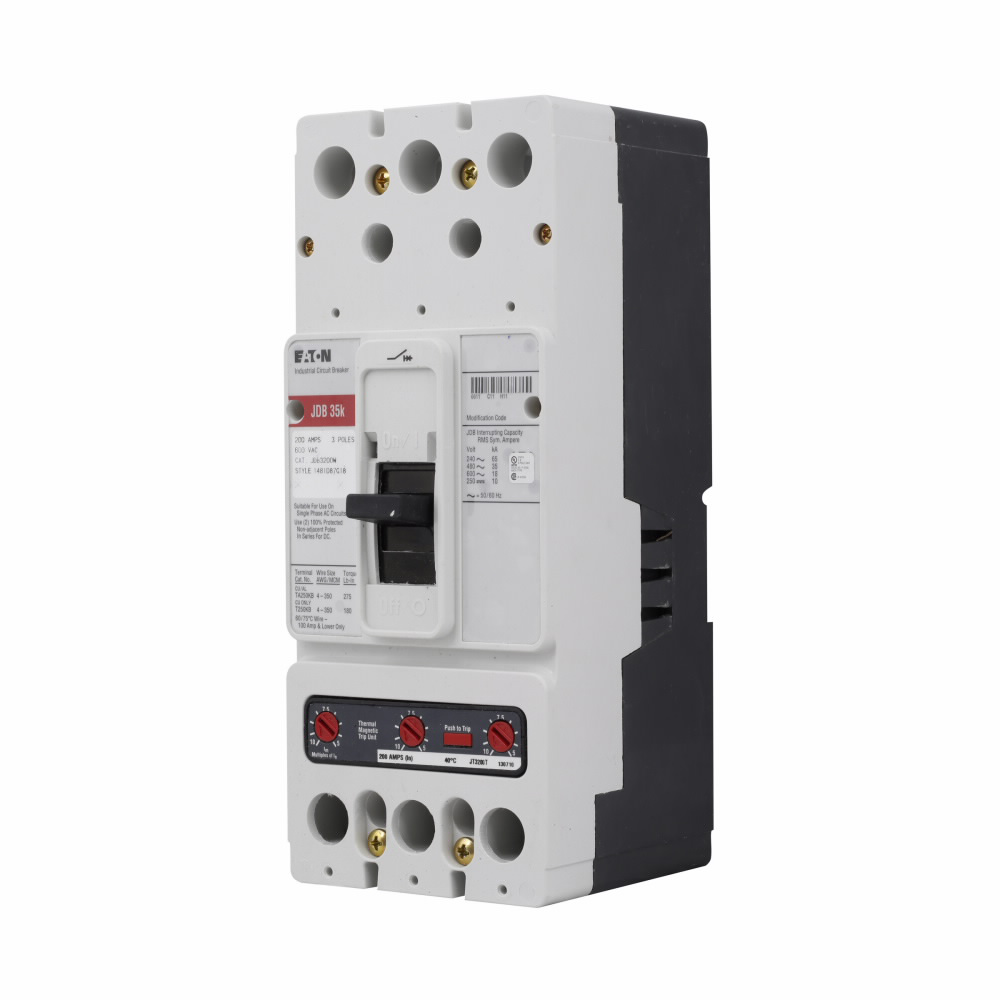

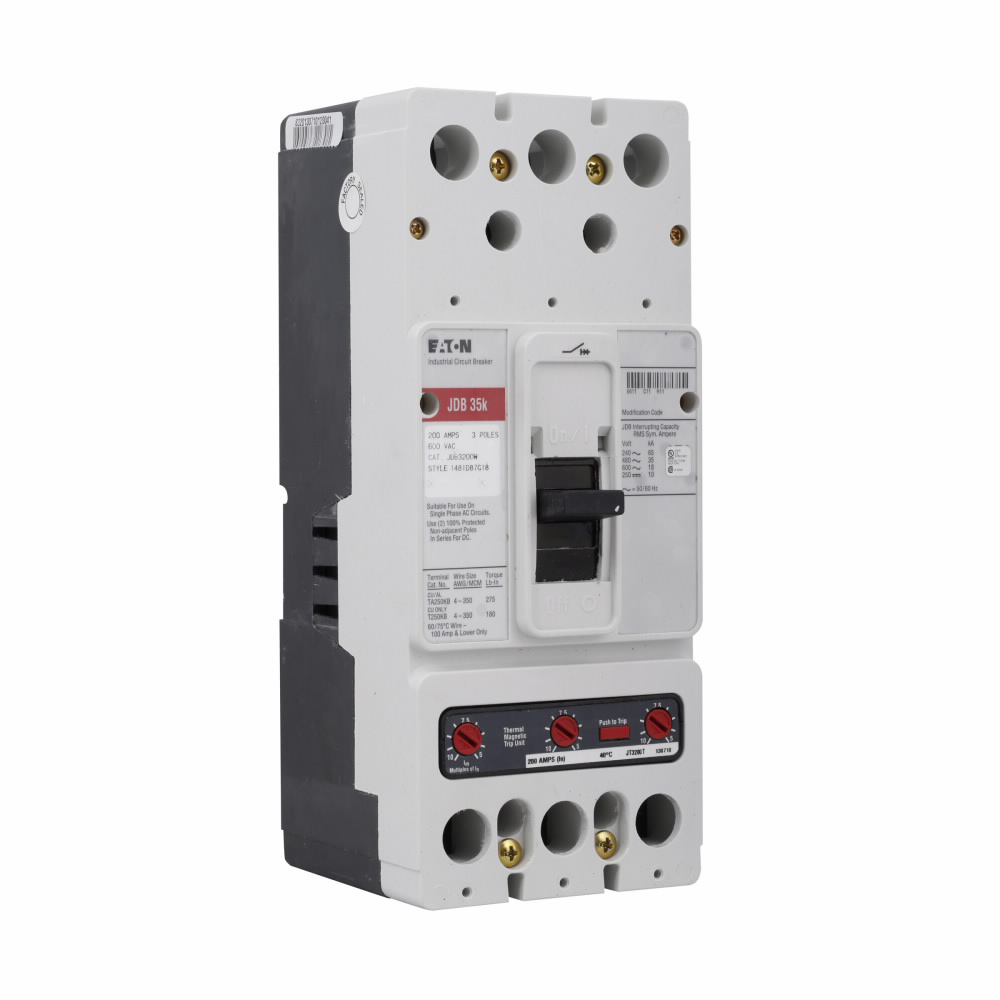

Cutler-Hammer JDB3250KM01 Series C molded case switch, J-frame, JDB, Molded case switch, Fixed thermal, fixed magnetic trip, Three-pole, 250A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, S

Manufacturer: Cutler-Hammer / Eaton | Catalog # JDB3250KM01 | Cooper Electric Part # 1126215
$3,363.18/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Eaton Series C molded case switch, J-frame, JDB, Molded case switch, Fixed thermal, fixed magnetic trip, Three-pole, 250A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, Single-pole imperial mounting base, 50/60 Hz

Technical Information

Amperage
250 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Circuit Breaker Type
JDB
Current
250 Amp
Frame
J
Frequency
50-60 Hz
Interrupt Rating
35 kAIC
Number of Poles
3 Pole
Switch Type
Molded Case
Trip Type
Fixed Magnetic,Fixed Thermal
Type
Molded case switch
Voltage
250 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786679109748
GTiN
00786679109748
Product Series
C
Product UPC
78667910974
Weight
11.25 lb

Dimensions

Height
4.13 Inch
Length
4.06 Inch
Width
4.13 in
