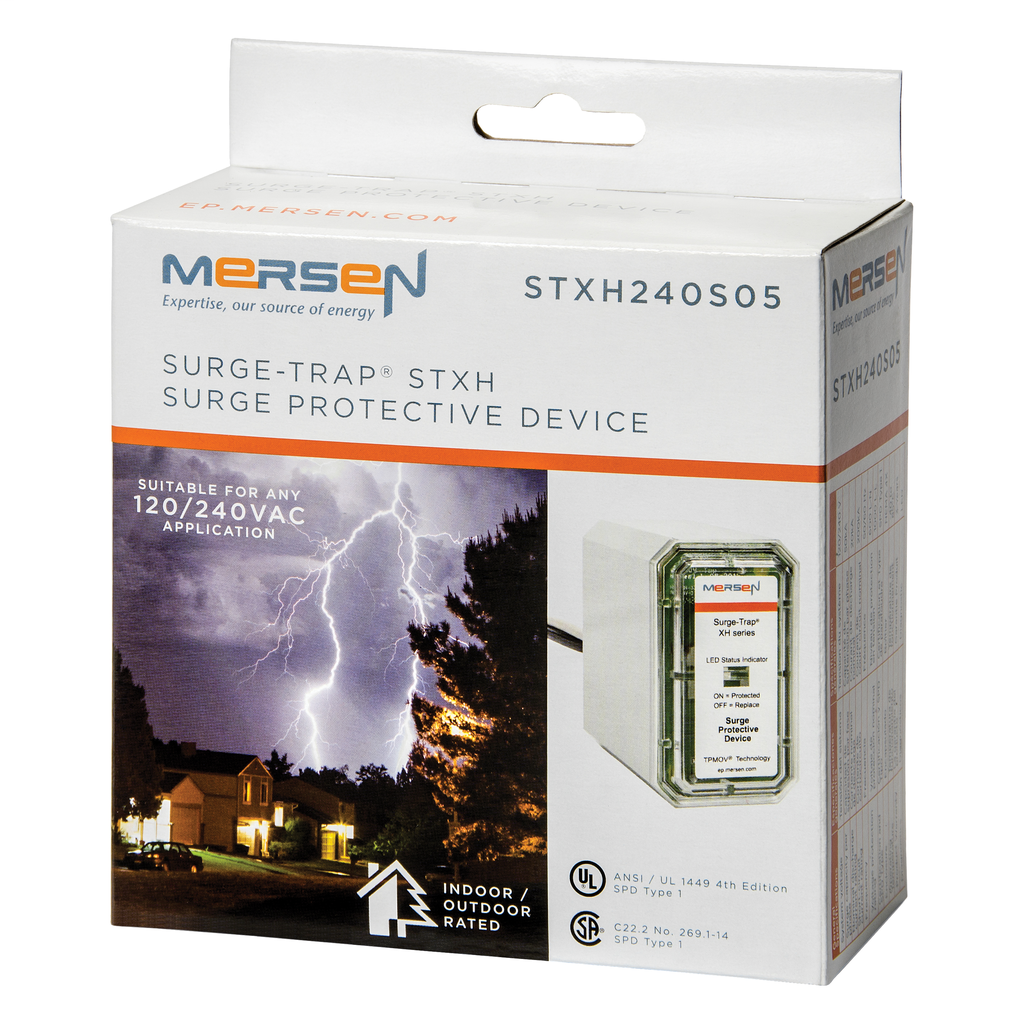

Product image for Mersen USA STXH240S05 Split Phase 20 kA 120/240 Volt Surge Protection Device
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Mersen USA STXH240S05 Split Phase 20 kA 120/240 Volt Surge Protection Device

Manufacturer: Mersen | Catalog # STXH240S05 | Cooper Electric Part # 1125373
$116.22/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The most compact of the STX series offering, the Surge-Trap® Type 1 STXH meets requirements for UL1449 4th Edition and is suitable for any 120/240VAC split phase application. The STXH Series SPD features TPMOV® technology inside making it the safest product available in its category. Its compact size, performance, and reliability are especially ideal for HVAC applications and direct mounting to air condition disconnect switches.

Technical Information

Applications
For any 120 - 240 V Application, Exterior Area
Current Type
AC
Enclosure Rating
4X
Enclosure Type
NEMA 4X
Frequency
50 Hz
Indicator
LED
Material
Polycarbonate
Max Discharge Current
50 kA
Max Operating Temperature
85 degrees C
Min Operating Temperature
-40 degrees C
Mounting Type
Panel
Nominal Discharge Current
20 kA
Short Circuit Current Ratng
200000 A
TC Connection
Pre-wired with 18 in 10 AWG conductors
Type
3-Mode Protection
Voltage
120-240 VAC

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001472504
GTiN
00782001472504
Housing Material
Polycarbonate
Product UPC
78200147250
Weight
0.8 lb

Dimensions

Height
3.22 Inch
Length
3.2 Inch
Width
1.85 in

Certifications and Compliance

Country of Origin
Mexico
Certifications
  • ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793
  • CSA C22.2, Type 1 SPD
  • ANSI/IEEE C62.41.1, C62.41.2, C62.45
  • UL96A Lightning Protection
  • RoHS Compliant
Features
  • Designed with the industry leading Mersen TPMOV® Technology
  • Compact footprint designed to mate with AC Disconnect Switches
  • LED status indicator (ON = Good, OFF = Replace)
  • NEMA 4X enclosure for outdoor or indoor use
  • Fits 1/2\" knockouts with 18\" leads for easy installation
  • For use in ANSI/UL Type 1 or 2 SPD installations
  • 3 Modes of Protection (L-N, L-L)
  • 3-year warranty
