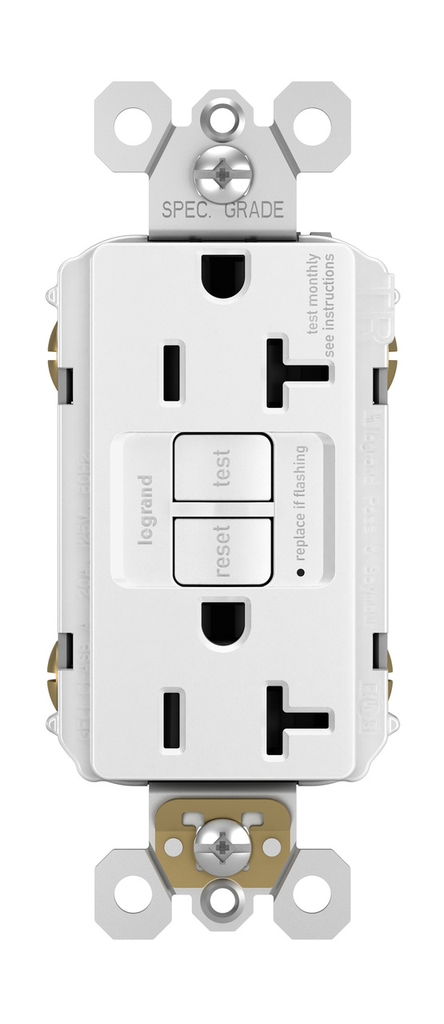

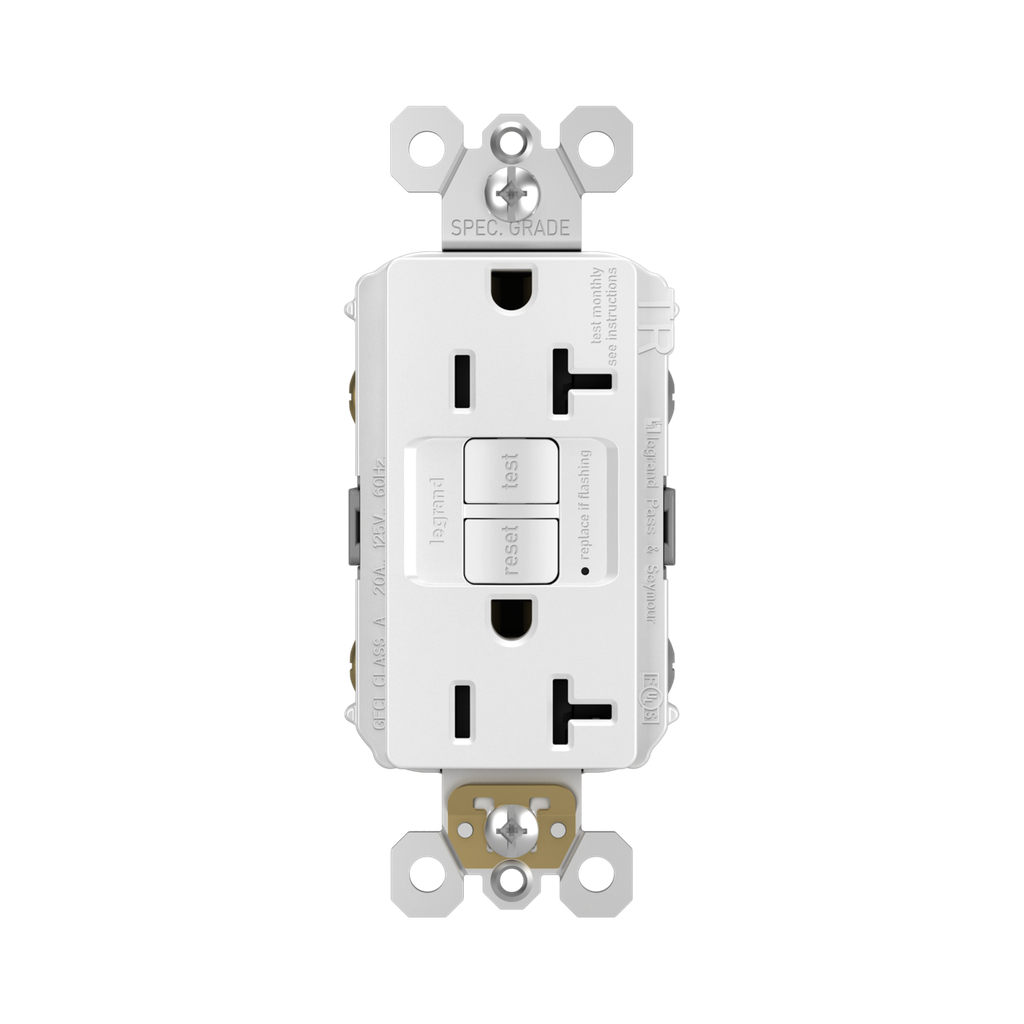

Product image for Pass & Seymour 2097-TRNAW 20A 125V Self Test Tamper Resistant NAFTA GFCI White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

Pass & Seymour 2097-TRNAW 20A 125V Self Test Tamper Resistant NAFTA GFCI White

Manufacturer: Pass & Seymour / Legrand | Catalog # 2097TRNAW | Cooper Electric Part # 1125166

$57.37/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
3 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection in the home, GFCI receptacles make it easier to recognize and fix trips right where they happen . no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial,Residential
Connection Type
Back Wire,Side Wire
Frequency
60 Hz
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplatic
Mounting Type
Box
NEMA
20A
Number of Gangs
1 Gang
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Indoor,Self-Test,Tamper-Resistant
TC Connection
Back and Side Wire
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Non-Reversing
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007050271
Color
White
Environmental Conditions
95 PCT
Finish
Matte
GTiN
00785007050271
Product UPC
78500705027

Dimensions

Depth
1-1/4 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • NAFTA-Compliant devices are ideal for use on projects subject to the provisions of the Buy America Act.
Certifications
  • cULus Listed
