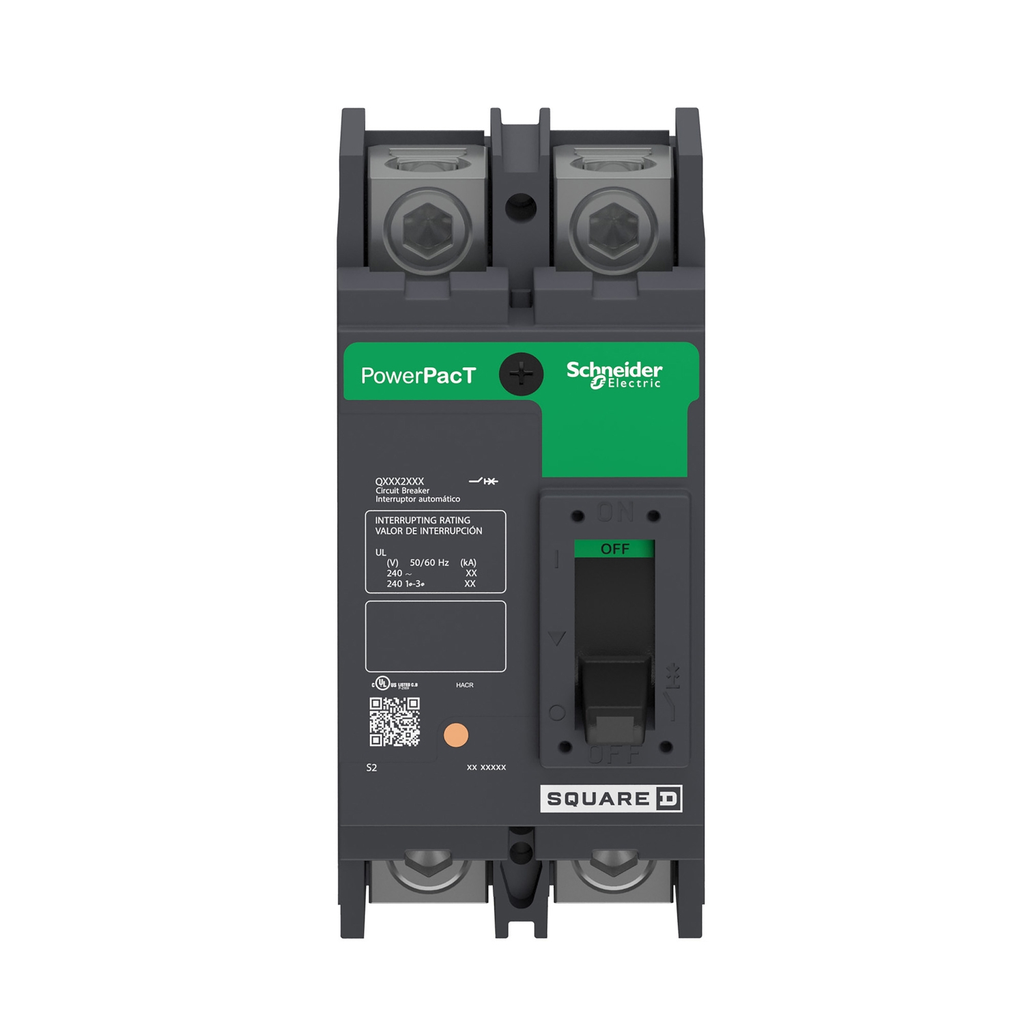

SQD QJL22225 Circuit breaker, Power

Manufacturer: Square-D / Schneider | Catalog # QJL22225 | Cooper Electric Part # 1123802
$2,835.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 225A, 2 pole, circuit breaker has an interrupting rating of 100kA at 208Y/120VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Technical Information

Amperage
225 Amp
Line Rated Current
225-225 A
Mounting Type
Unit Mount Lug)
Number of Poles
2 Pole
Standard
CSA,NEMA,NOM-003-SCFI-2000,UL
Strip Length
22 mm
TC Connection
LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-LUGS LINE AWG 4...300 KCMIL ALUMINIUM/COPPER
Trip Point
2400-2400 A
Trip Type
THERMAL-MAGNETIC
Type
CIRCUIT BREAKER
Voltage
240 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901774211
GTiN
00785901774211
Product UPC
78590177421

Dimensions

Depth
3.93 Inch
Height
6.47 Inch
Length
22 mm
Warranty Length
18 mth
Width
3.00 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • Q22200NRB
  • Q22200NS
  • Q23225NF
  • Q23225NRB
  • Q23225NRBC
  • Q23225NS
  • Q23225NSC
  • QBMIK
  • QBPA
